Brake Booster Vacuum Sensor: Diagrams

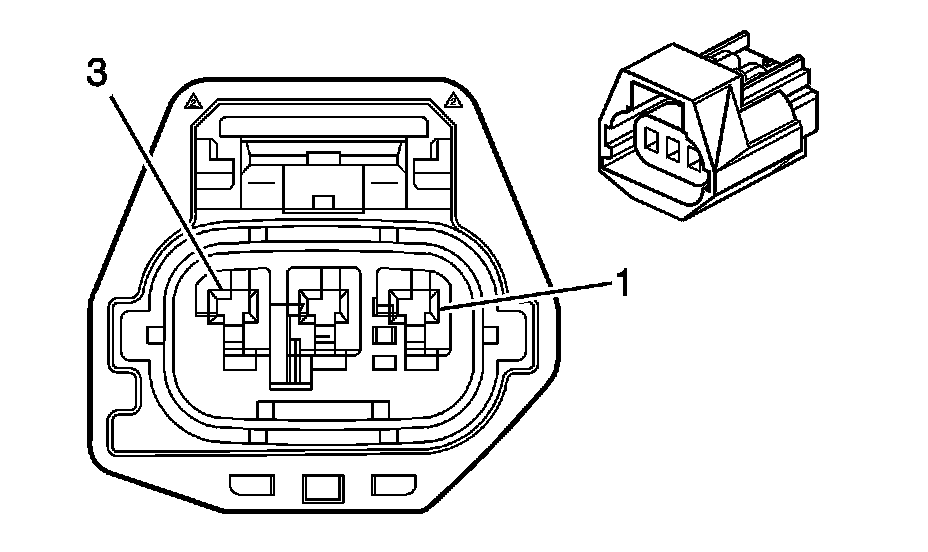

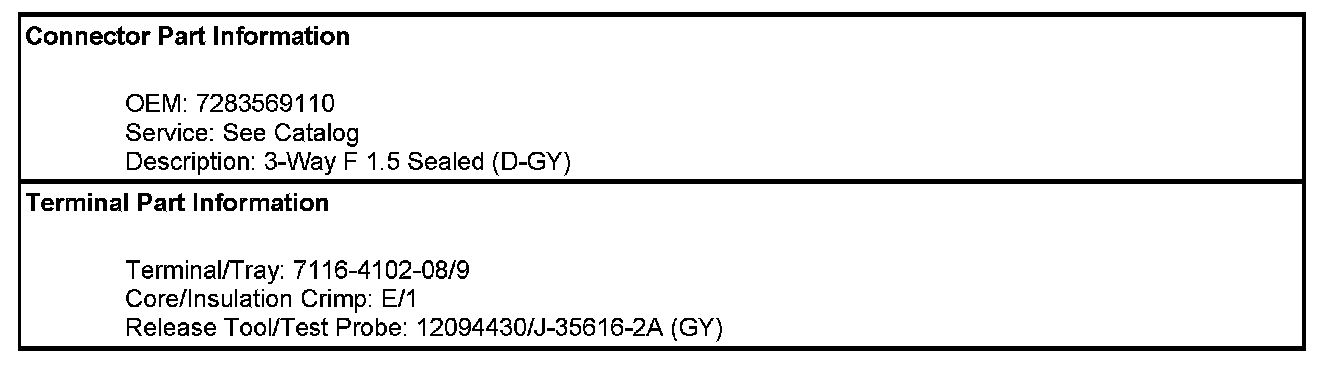

Component Connector End Views

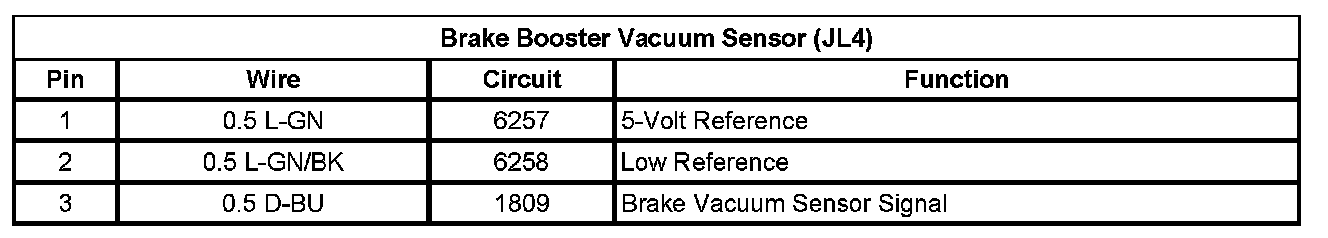

Brake Booster Vacuum Sensor (JL4)
