Clockspring Assembly / Spiral Cable: Diagrams
Component Connector End Views - Continued

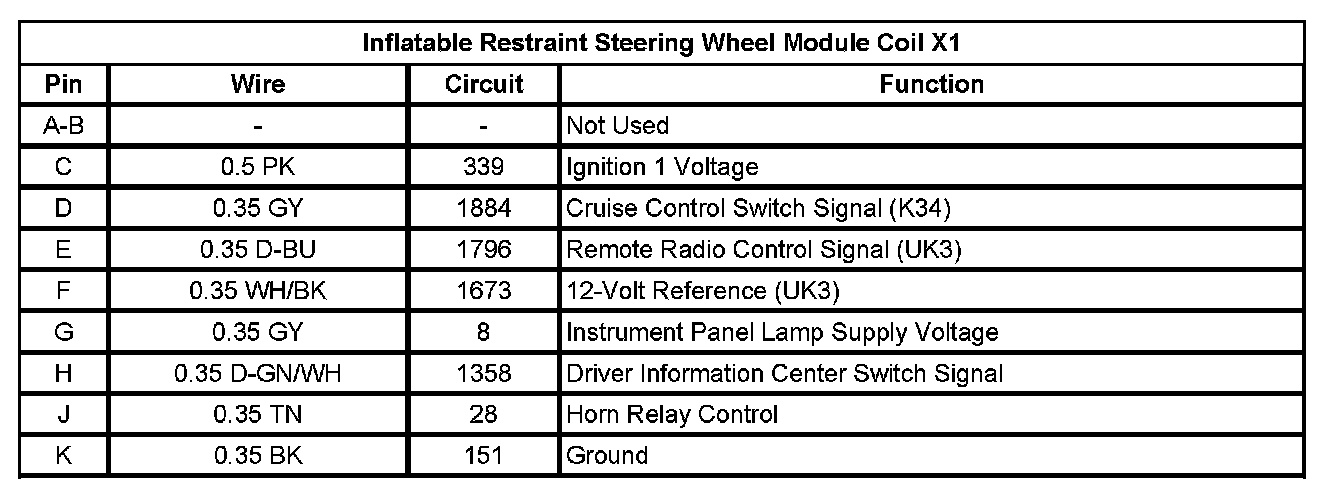

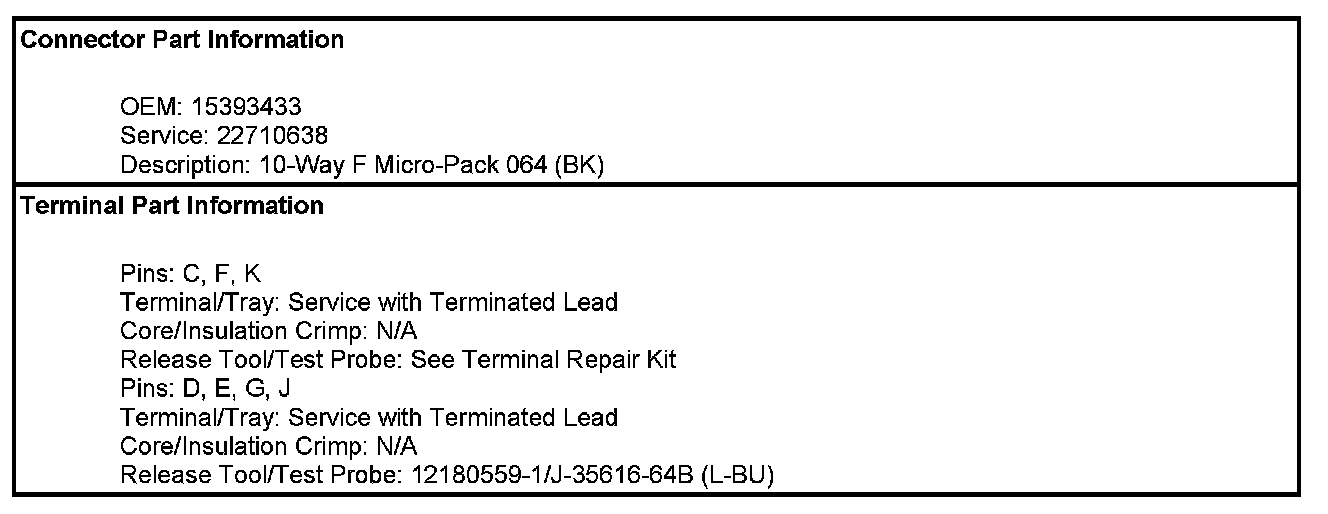

Inflatable Restraint Steering Wheel Module Coil X1

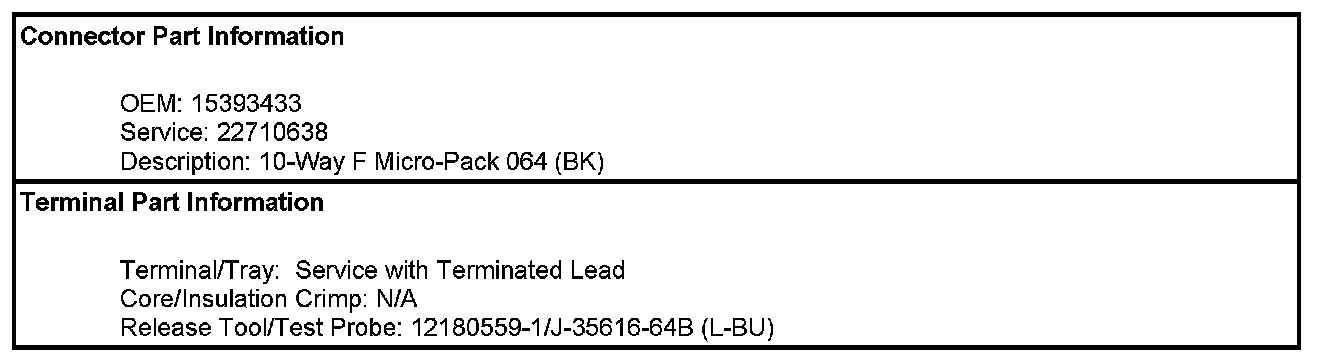

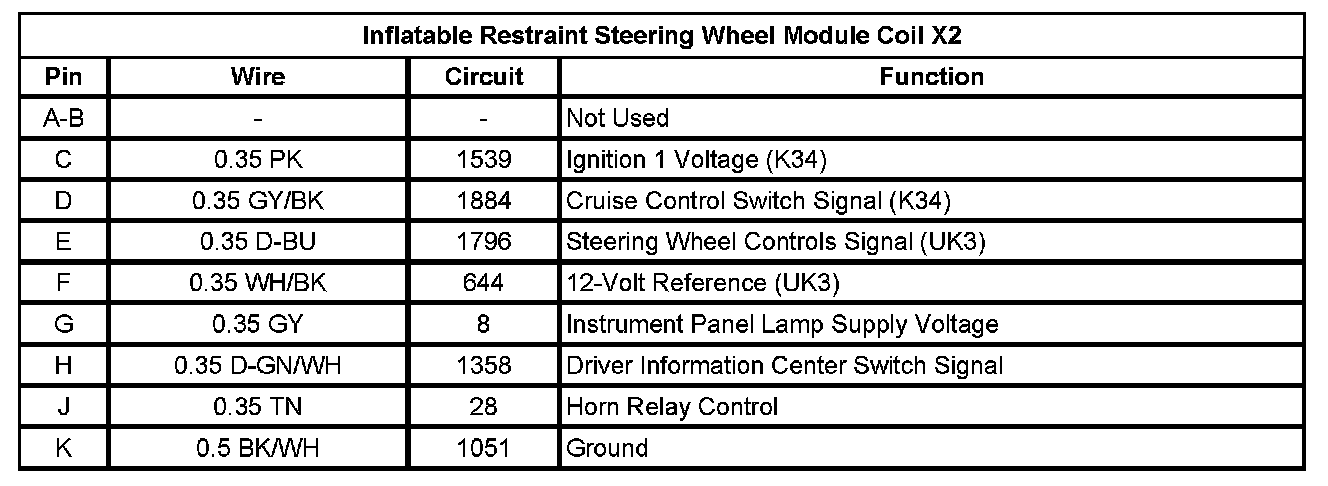

Inflatable Restraint Steering Wheel Module Coil X2

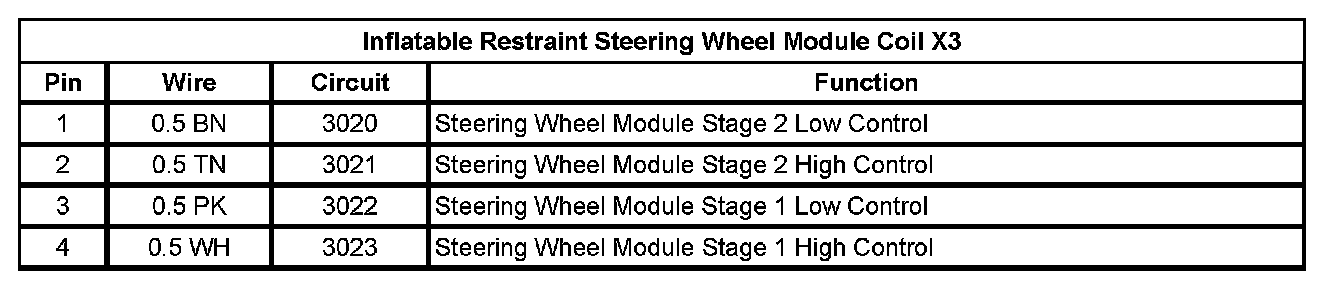

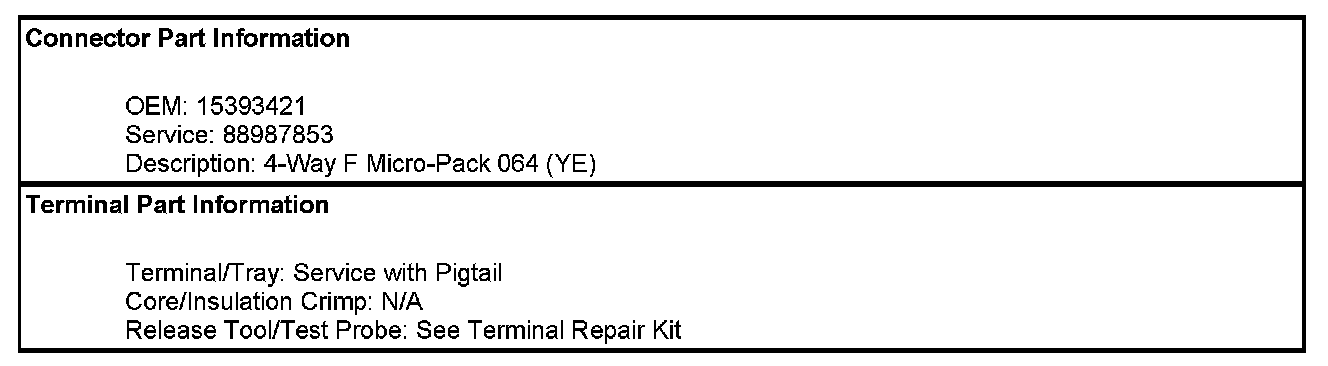

Inflatable Restraint Steering Wheel Module Coil X3
Component Connector End Views - Continued
Inflatable Restraint Steering Wheel Module Coil X1
Inflatable Restraint Steering Wheel Module Coil X2
Inflatable Restraint Steering Wheel Module Coil X3
