Air Bag Control Module: Diagrams



Component Connector End Views - Continued

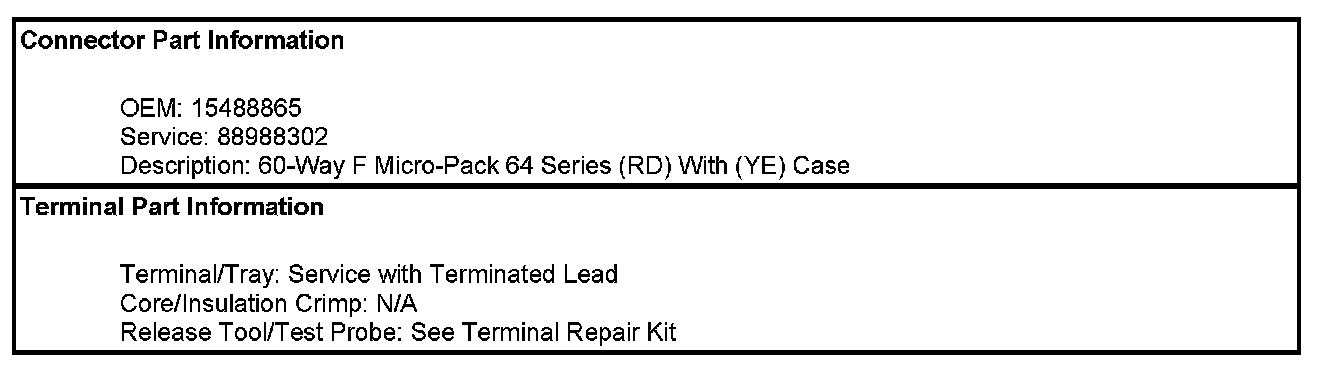

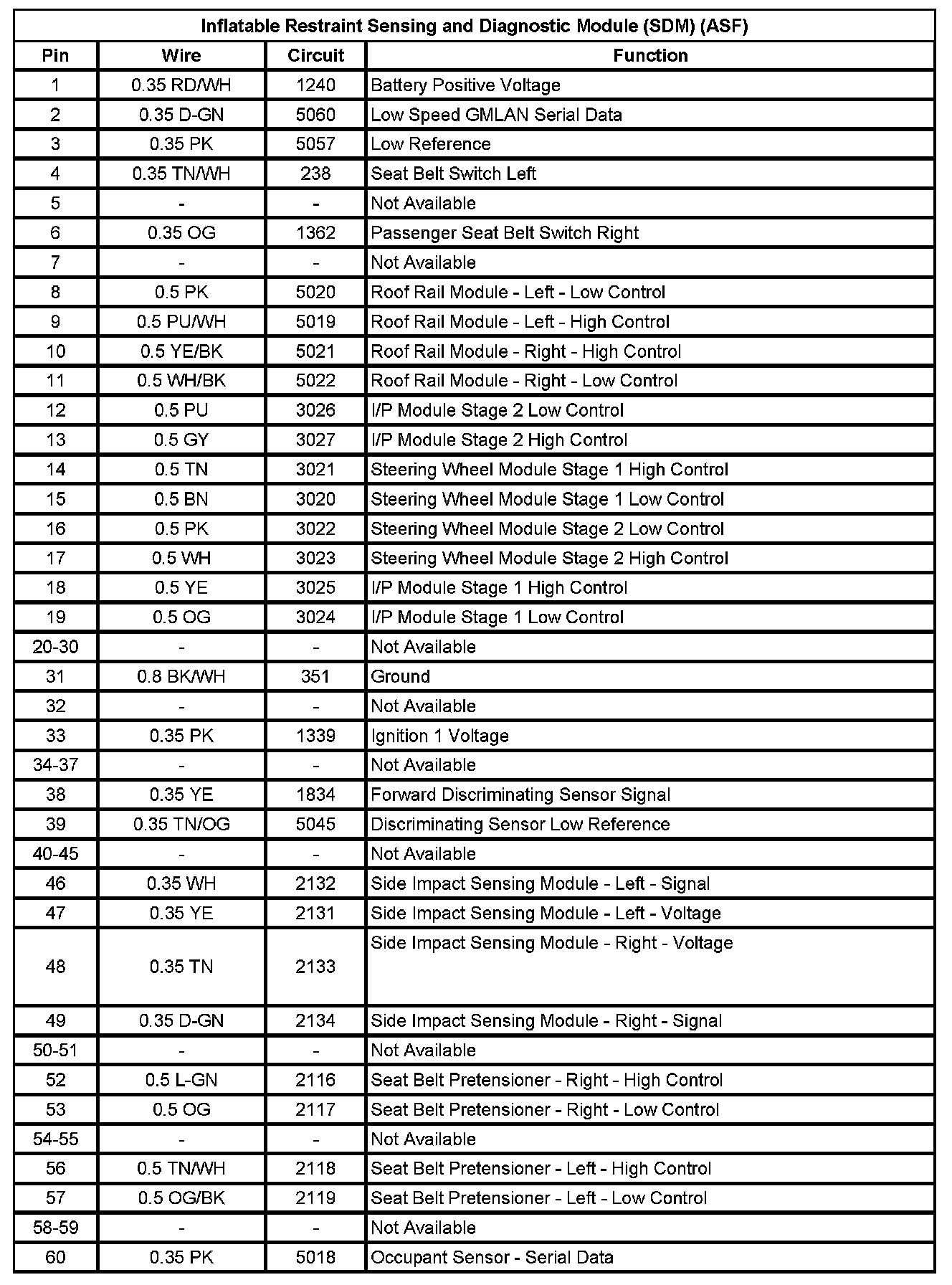

Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF)

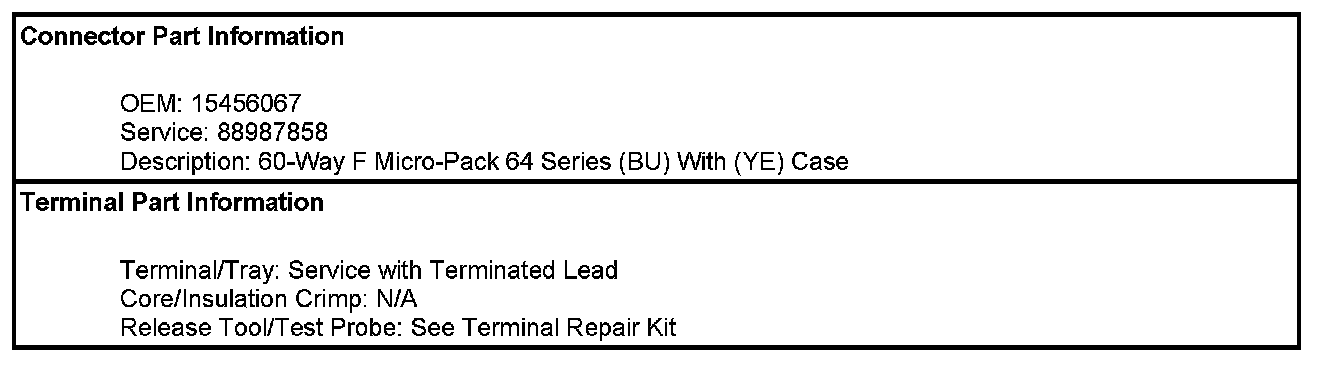

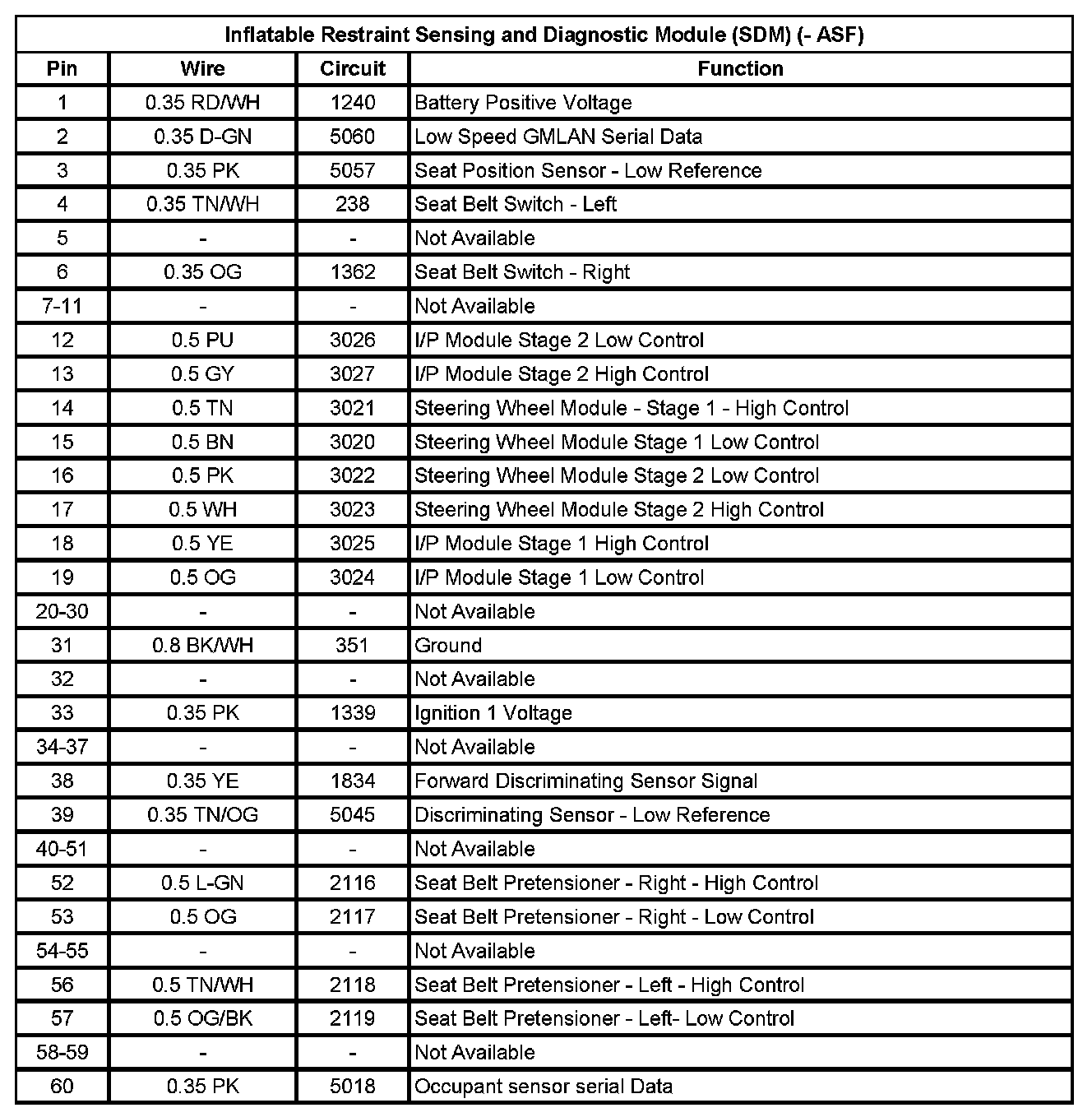

Inflatable Restraint Sensing and Diagnostic Module (SDM) (- ASF)
