Lateral Acceleration Sensor: Diagrams



Component Connector End Views - Continued

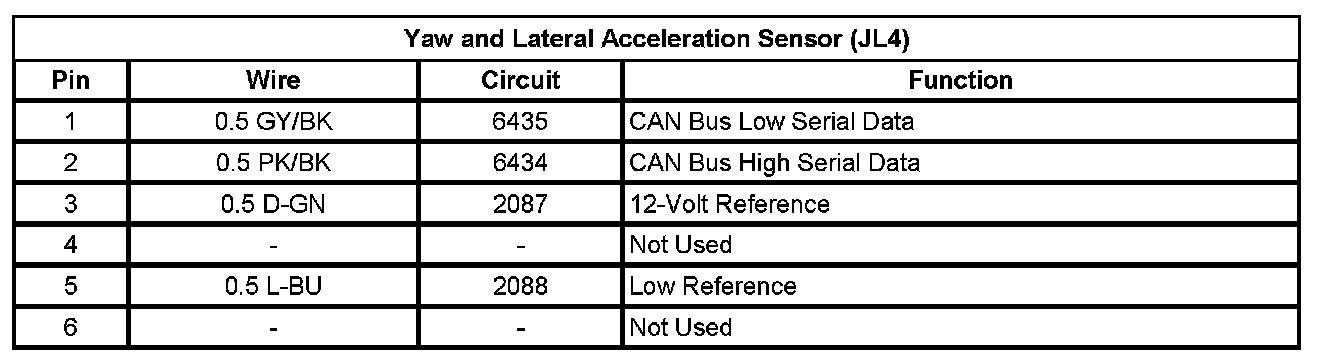

Yaw and Lateral Acceleration Sensor (JL4)
