Connector Views

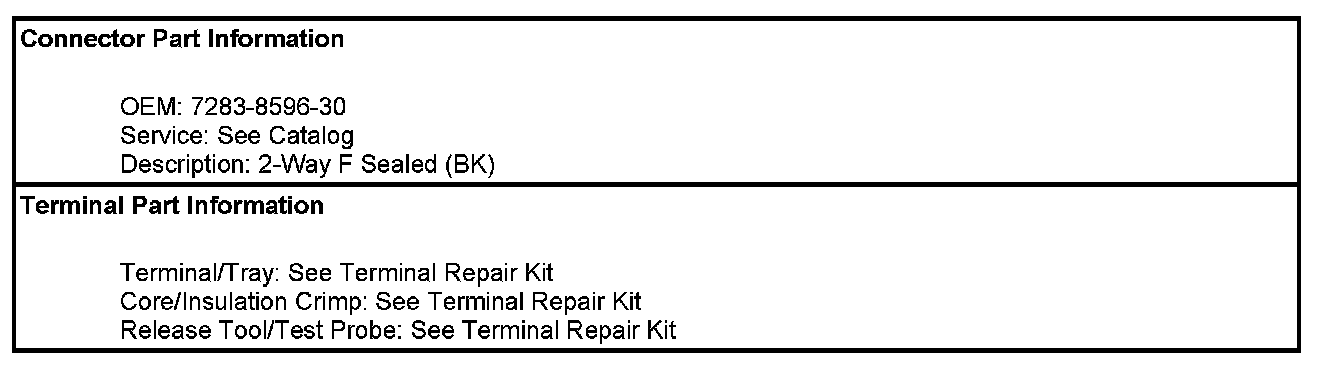

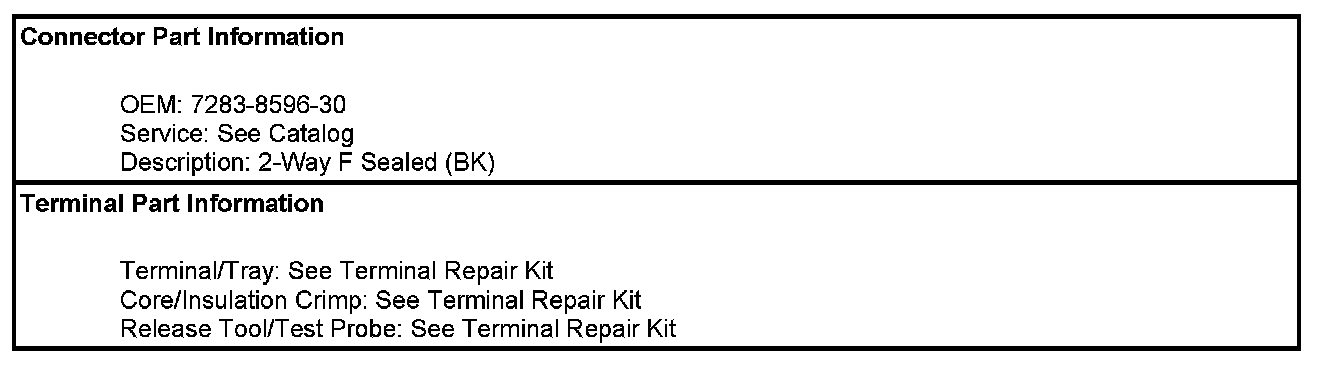

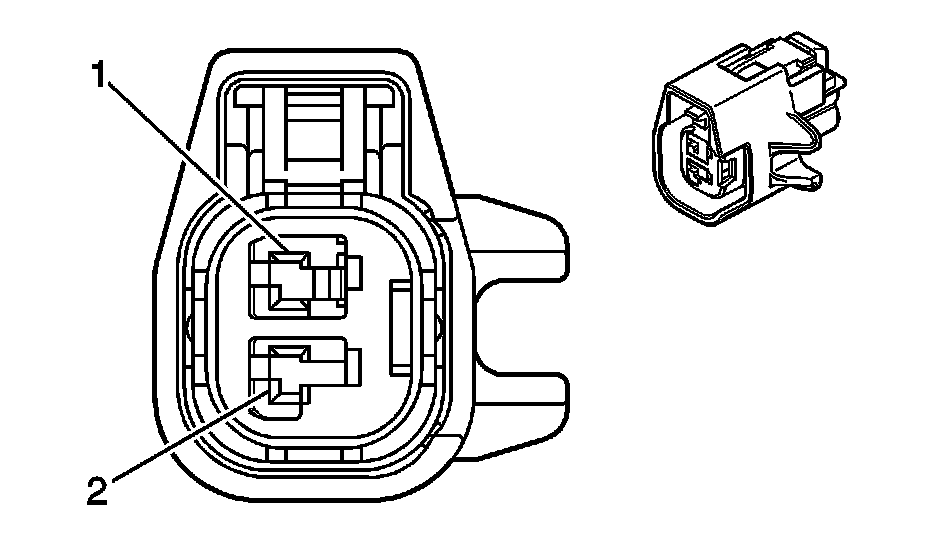

Component Connector End Views

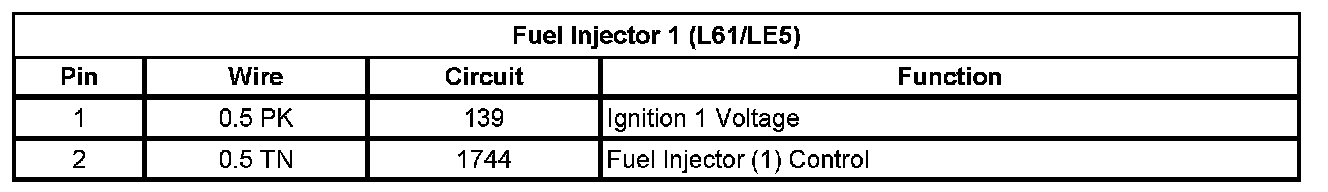

Fuel Injector 1 (L61/LE5)

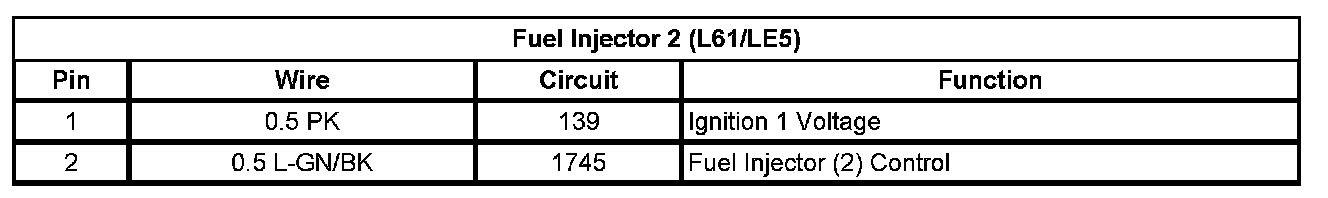

Fuel Injector 2 (L61/LE5)

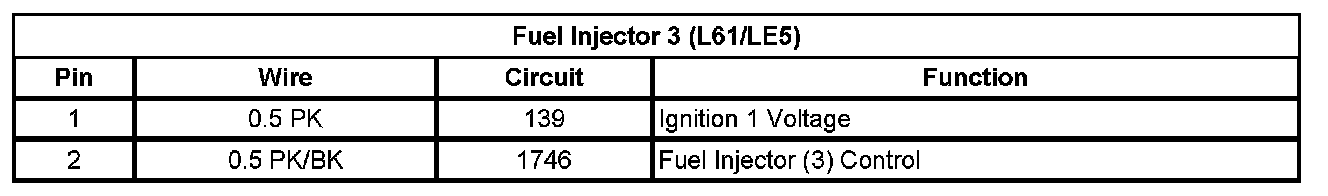

Fuel Injector 3 (L61/LE5)














Fuel Injector 4 (L61/LE5)
