Air Injection Pump: Diagrams



Component Connector End Views - Continued

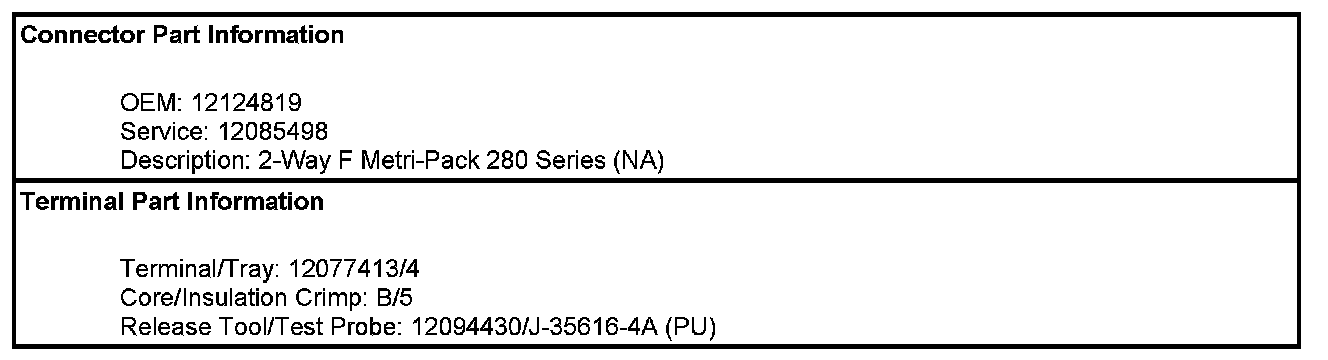

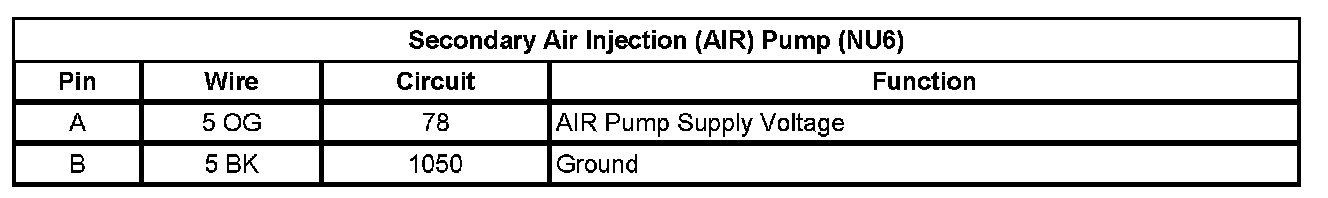

Secondary Air Injection (AIR) Pump (NU6)

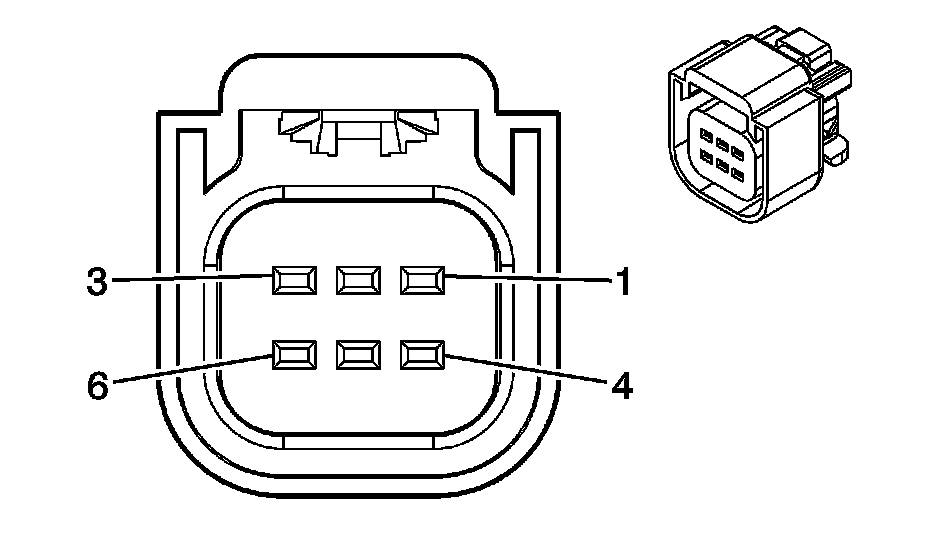

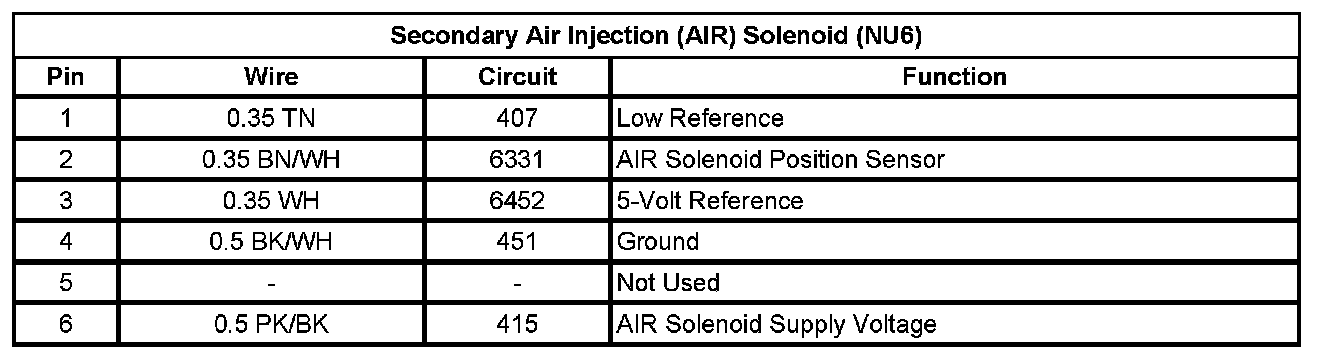

Secondary Air Injection (AIR) Solenoid (NU6)
