Electronic Throttle Control Module: Locations

Powertrain Component Views

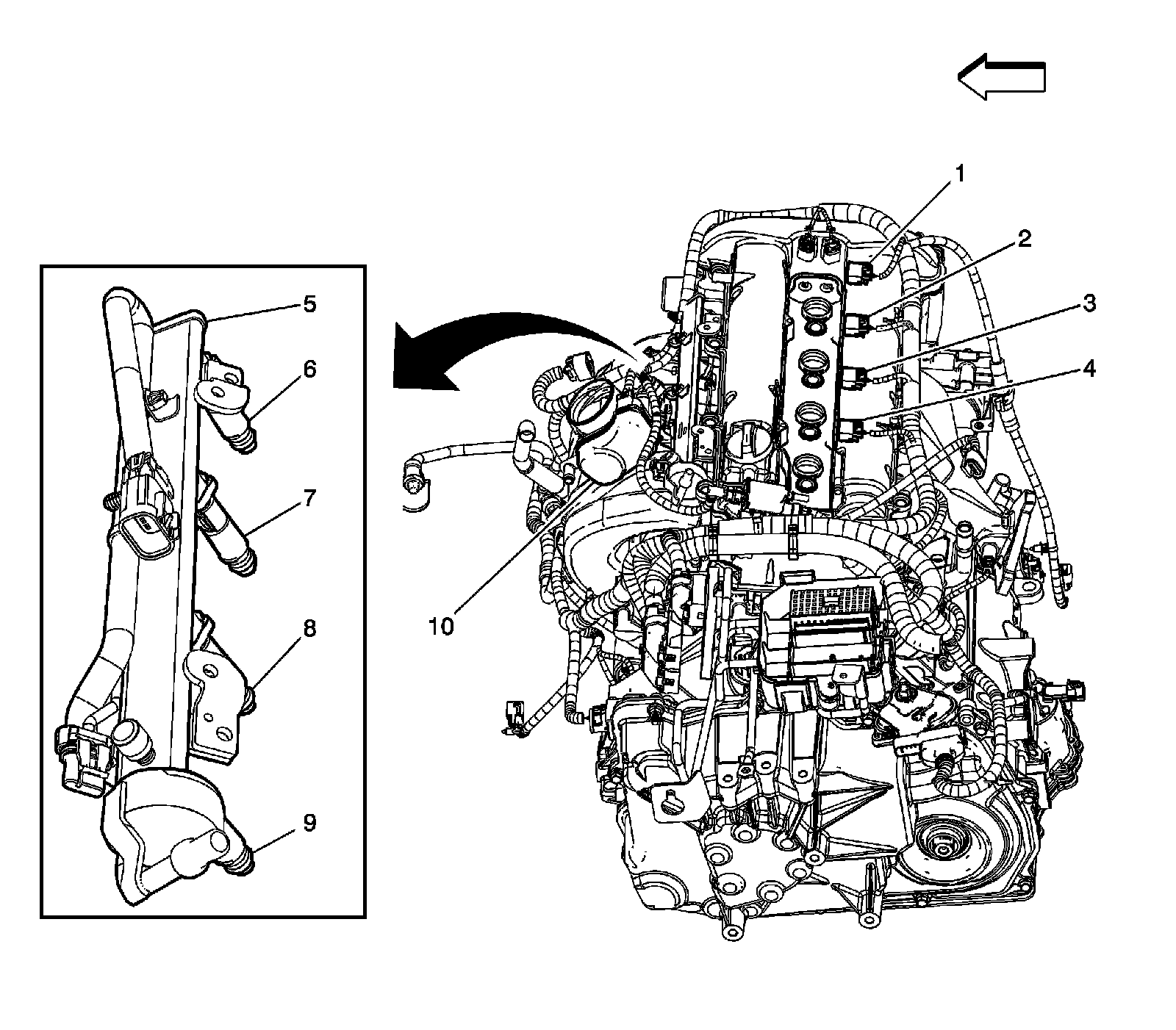

Left Side View of Engine




1 - Ignition Coil Module 1
2 - Ignition Coil Module 2
3 - Ignition Coil Module 3
4 - Ignition Coil Module 4
5 - Fuel Rail
6 - Fuel Injector 1
7 - Fuel Injector 2
8 - Fuel Injector 3
9 - Fuel Injector 4
10 - Throttle Actuator Control (TAC) Module

Left Side View of Engine




1 - MAF/IAT Sensor
2 - Ignition Coil Module 1
3 - Ignition Coil Module 2
4 - Ignition Coil Module 3
5 - Ignition Coil Module 4
6 - Fuel Rail
7 - Fuel Injector 1
8 - Fuel Injector 2
9 - Fuel Injector 3
10 - Fuel Injector 4
11 - Throttle Actuator Control (TAC) Module
