Body Control Module: Locations

Instrument Panel/Center Console Component Views

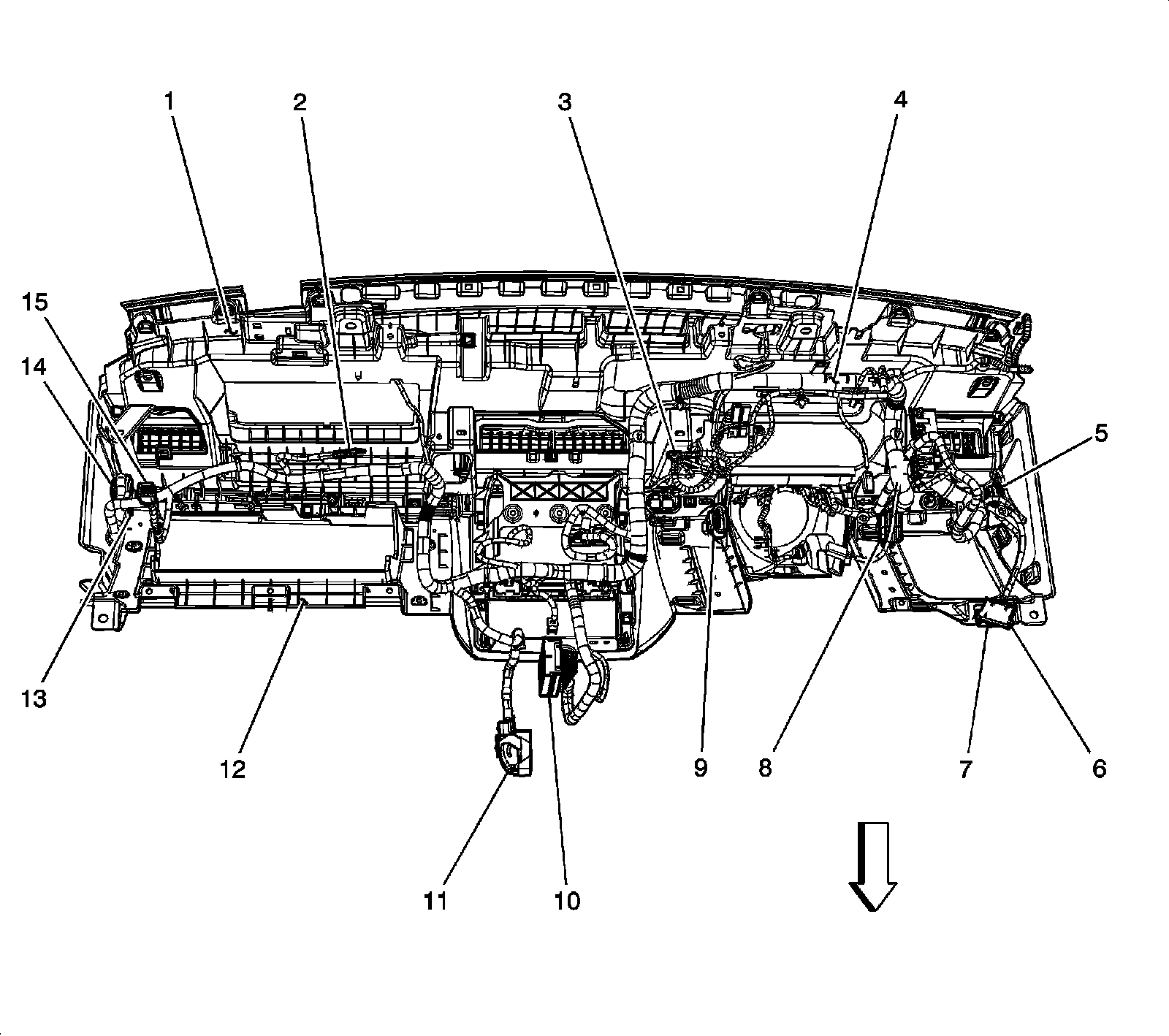

I/P Harness Routing




1 - I/P Carrier
2 - G203
3 - G201
4 - J233
5 - X275
6 - JX200
7 - Data Link Connector (DLC)
8 - X201
9 - X204
10 - Body Control Module (BCM) X4
11 - Body Control Module (BCM) X2
12 - I/P Carrier Trim
13 - Radio Antenna Coax
14 - X200
15 - X210

I/P Components




1 - Instrument Panel Cluster (IPC)
2 - Ambient Light Sensor
3 - Hazard Switch
4 - Radio
5 - Remote Control Door Lock Receiver (RCDLR) (AUO)
6 - Heated Seat Switch - Passenger (KA1)
7 - HVAC Control Module
8 - Body Control Module (BCM)
9 - Heated Seat Switch - Driver (KA1)
10 - I/P Dimmer Switch
11 - Fog Lamp Switch (T37)
12 - Data Link Connector (DLC)
13 - Rear Compartment Lid Release Switch
14 - I/P Trim
