Turn Signal Lamp: Diagrams

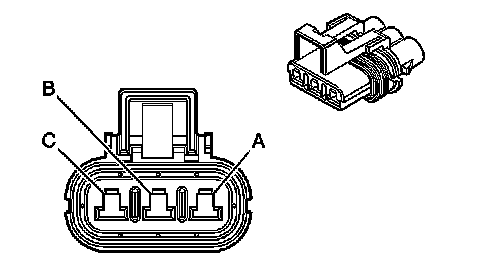

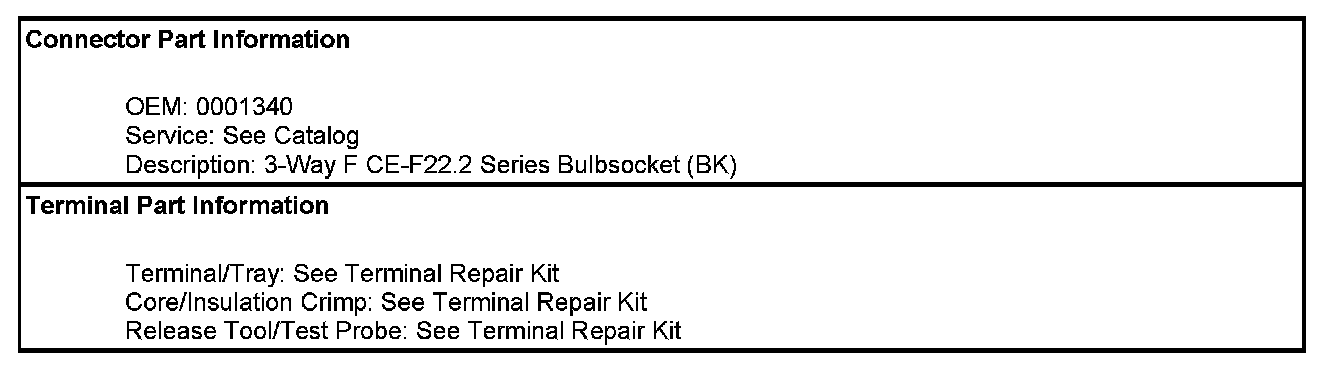

Component Connector End Views - Continued

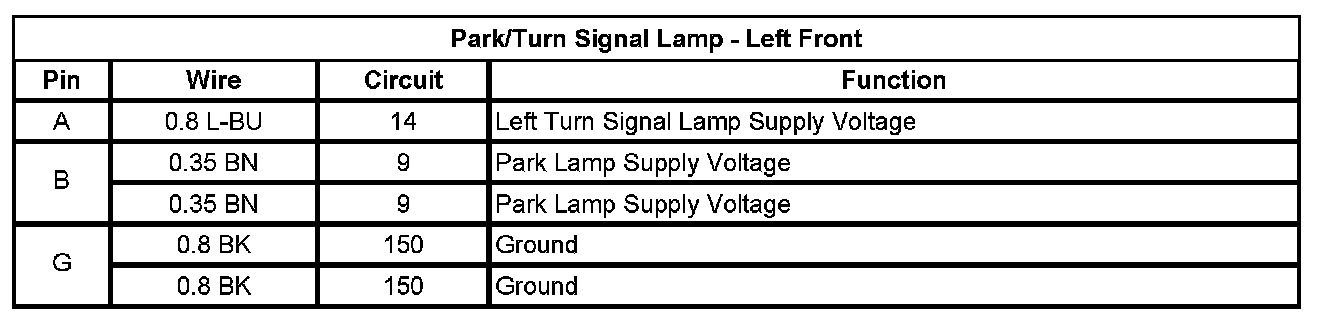

Park/Turn Signal Lamp - Left Front
Park/Turn Signal Lamp - Right Front

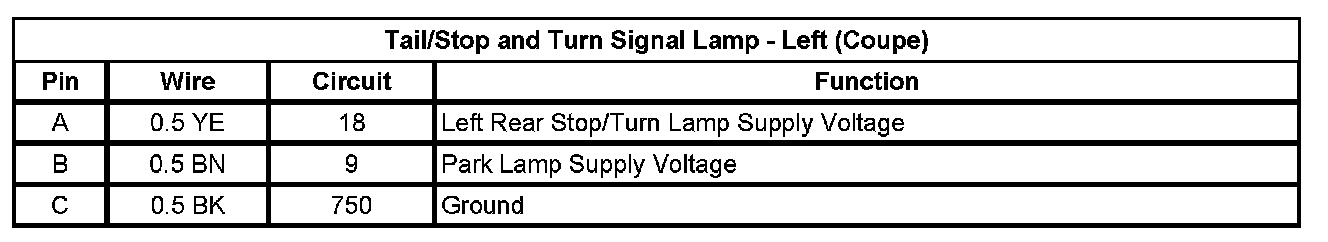

Tail/Stop and Turn Signal Lamp - Left (Coupe)

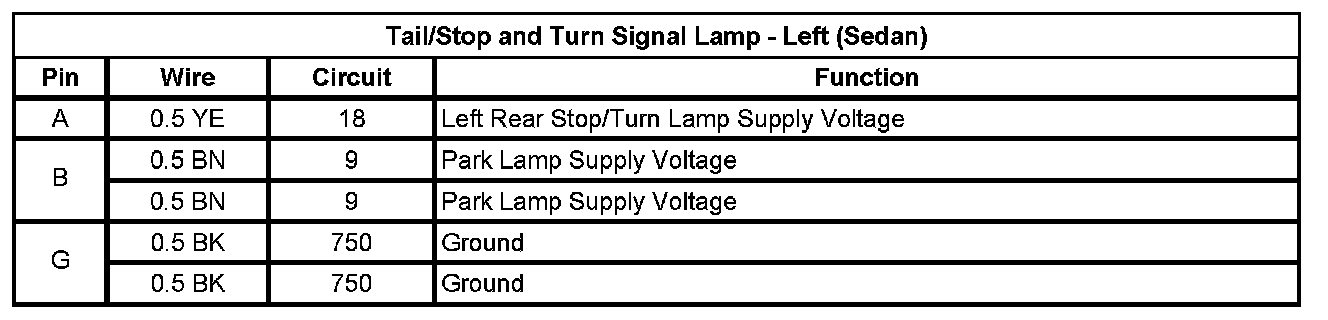

Tail/Stop and Turn Signal Lamp - Left (Sedan)

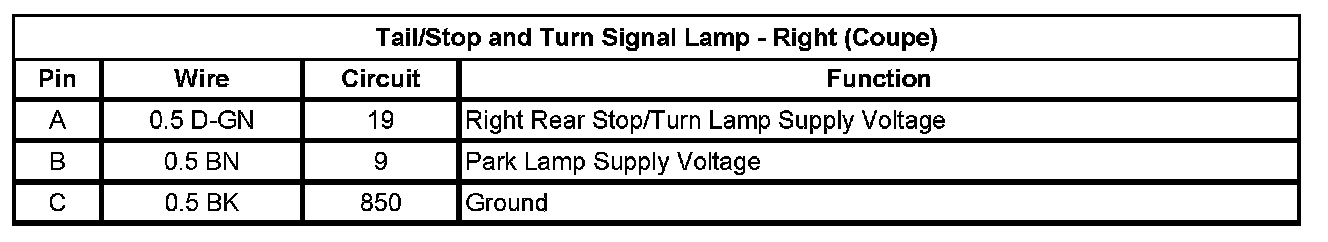

Tail/Stop and Turn Signal Lamp - Right (Coupe)

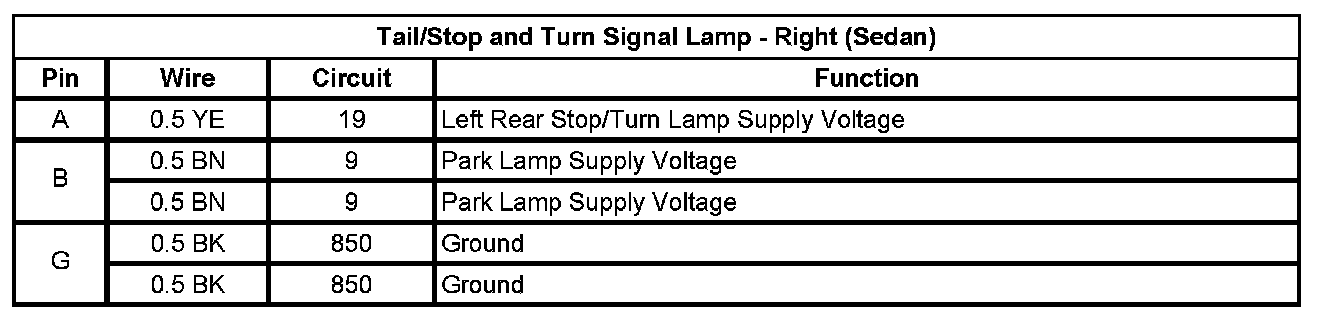

Tail/Stop and Turn Signal Lamp - Right (Sedan)
