Connector Views



Component Connector End Views

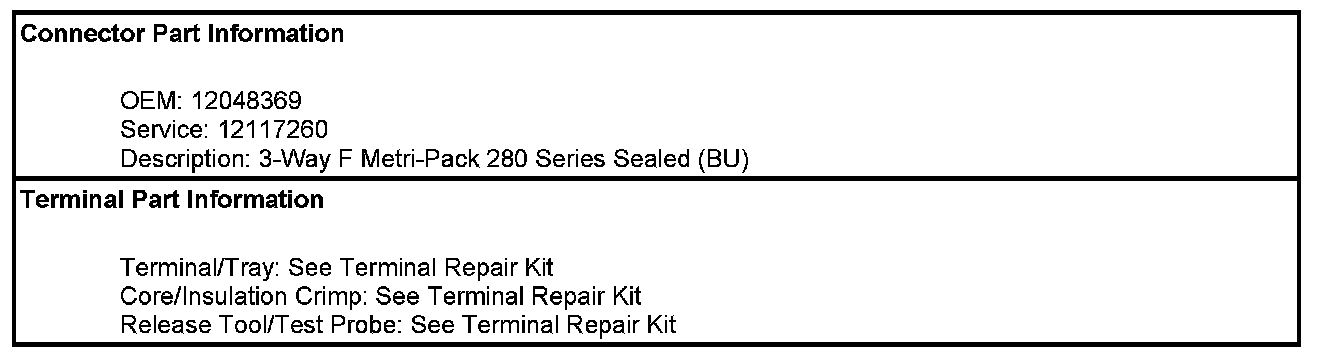

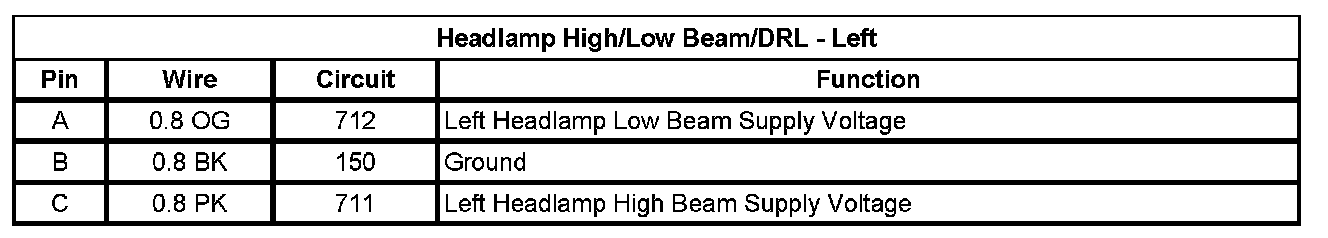

Headlamp High/Low Beam/DRL - Left

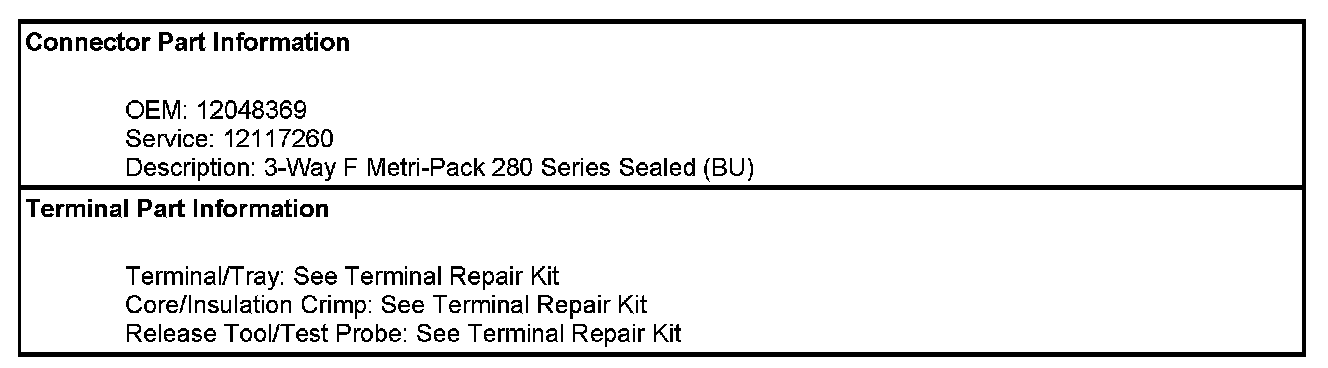

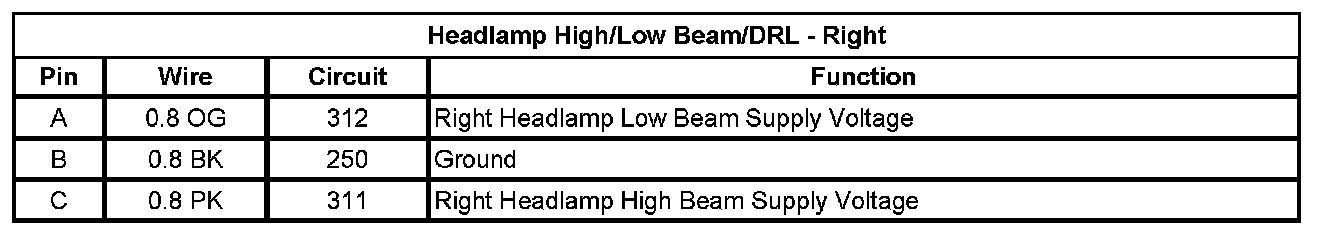

Headlamp High/Low Beam/DRL - Right
