Center Mounted Brake Lamp
>>
Diagrams
Center Mounted Brake Lamp: Diagrams

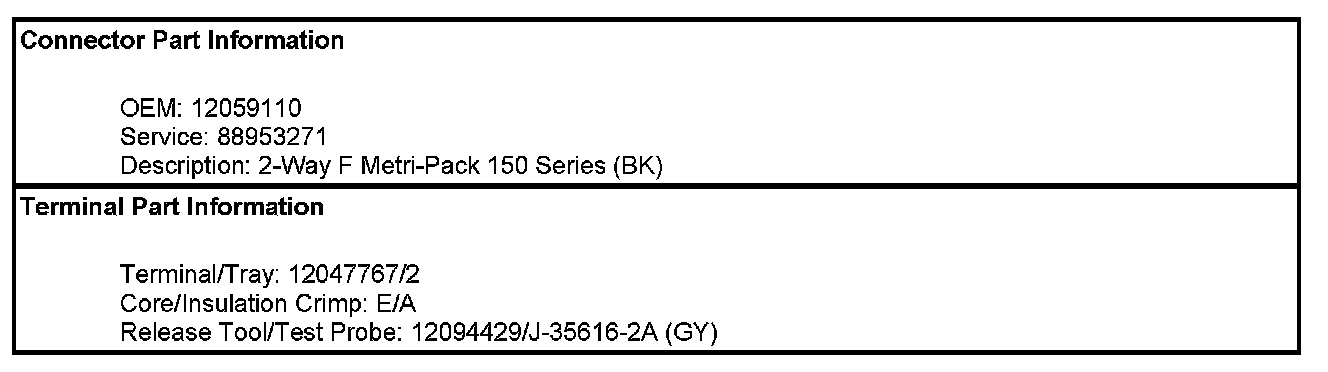

Component Connector End Views

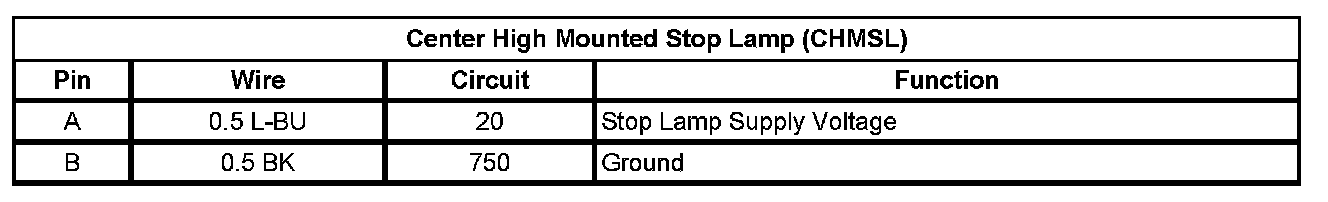

Center High Mounted Stop Lamp (CHMSL)
Auxiliary Transmission Fluid Pump (M33 Only):
