Home >> Chevrolet >> 2008 >> Cobalt L4-2.4L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cooling Fan >> Radiator Cooling Fan Motor >> Diagrams

Radiator Cooling Fan Motor: Diagrams



Component Connector End Views

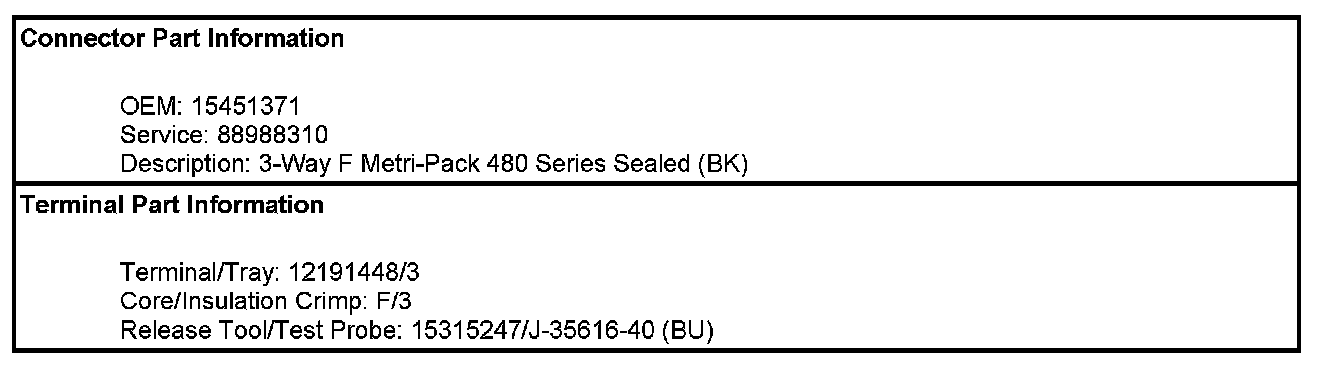

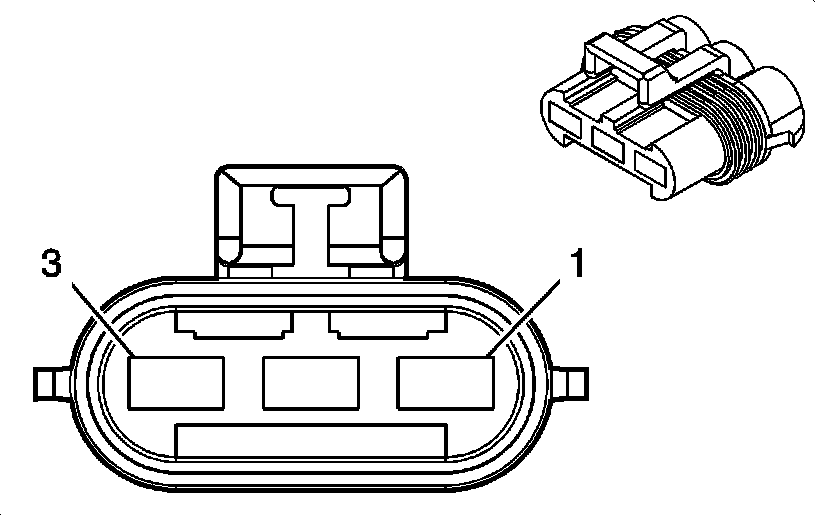

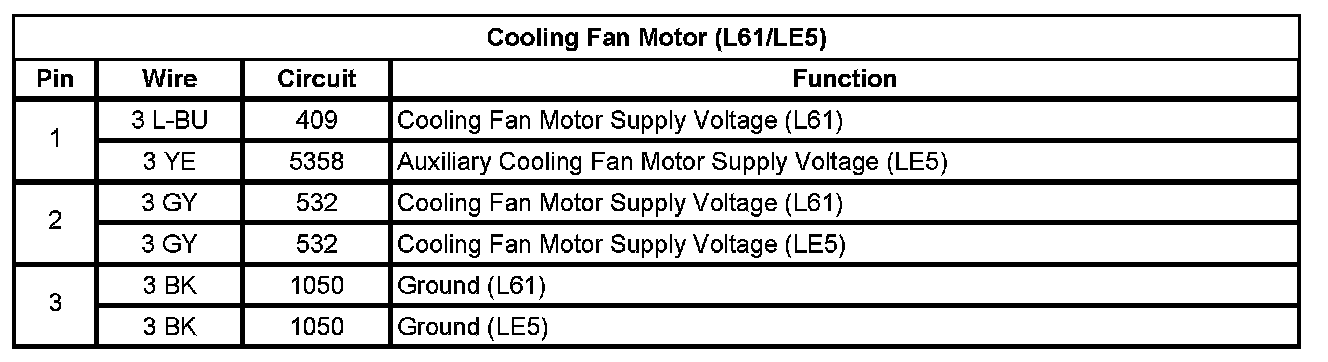

Cooling Fan Motor (L61/LE5)
