Chevrolet
>>
2008
>>
Cobalt L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Lamp Views
>>
Forward Lamp Harness
Forward Lamp Harness

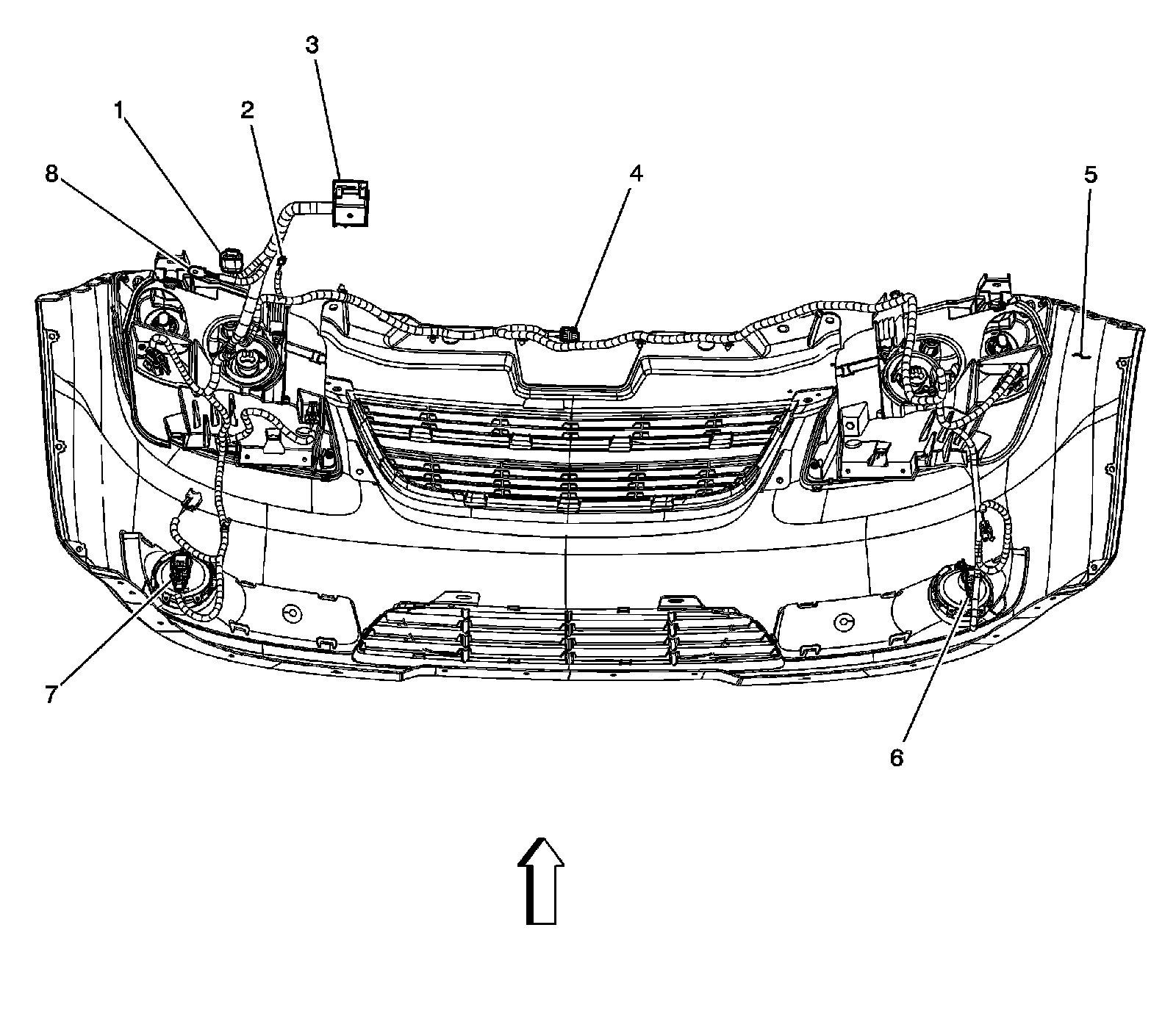

Harness Routing Views
Forward Lamp Harness
1
- X121
2
- G102
3
- Fuse Block - Underhood X3
4
- Inflatable Restraint Front End Sensor Connector
5
- Front Fascia
6
- Fog Lamp - Right
7
- Fog Lamp - Left
8
- G101
