Heating and Air Conditioning

HVAC Schematics

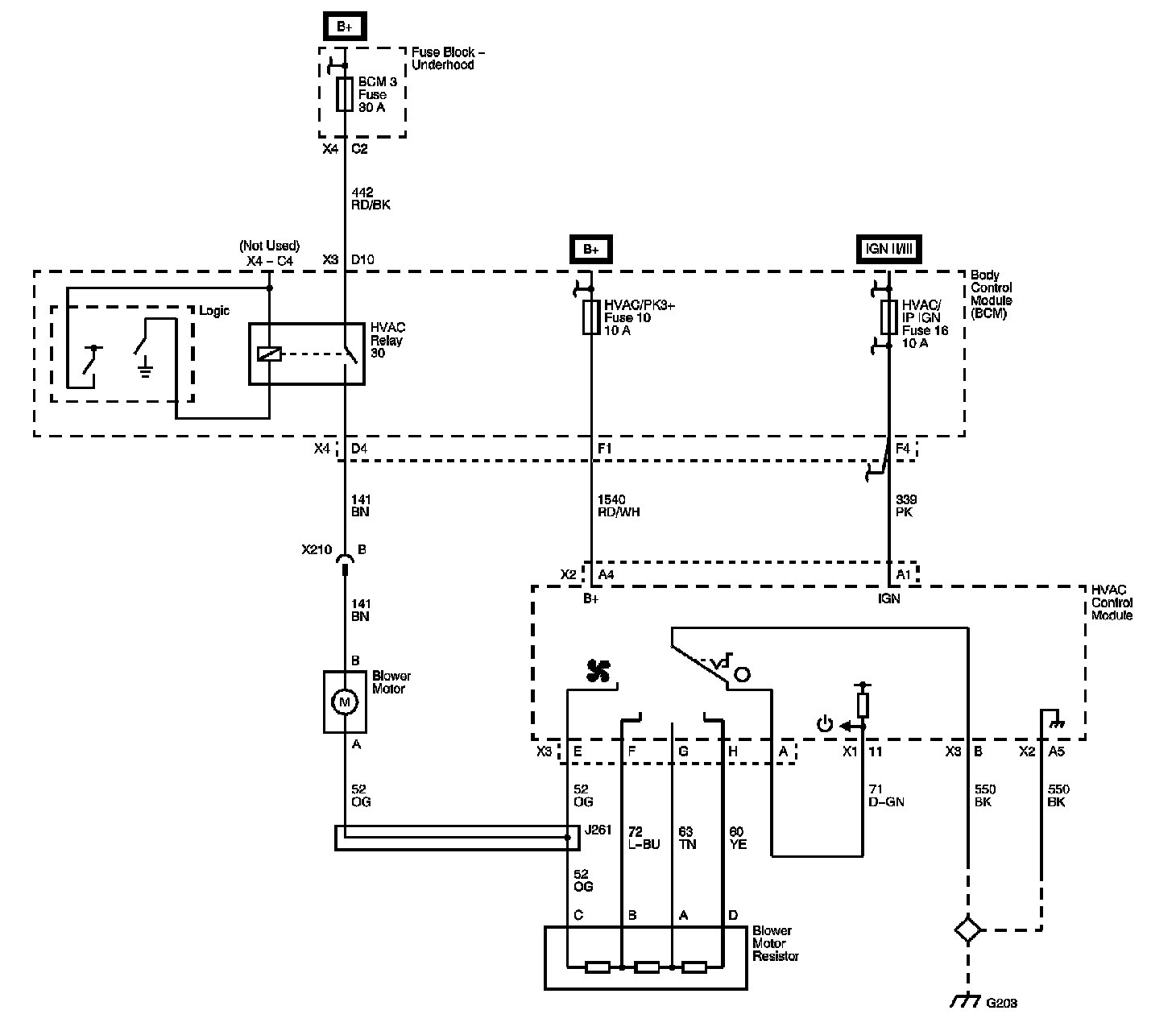

Power, Ground, Blower Motor

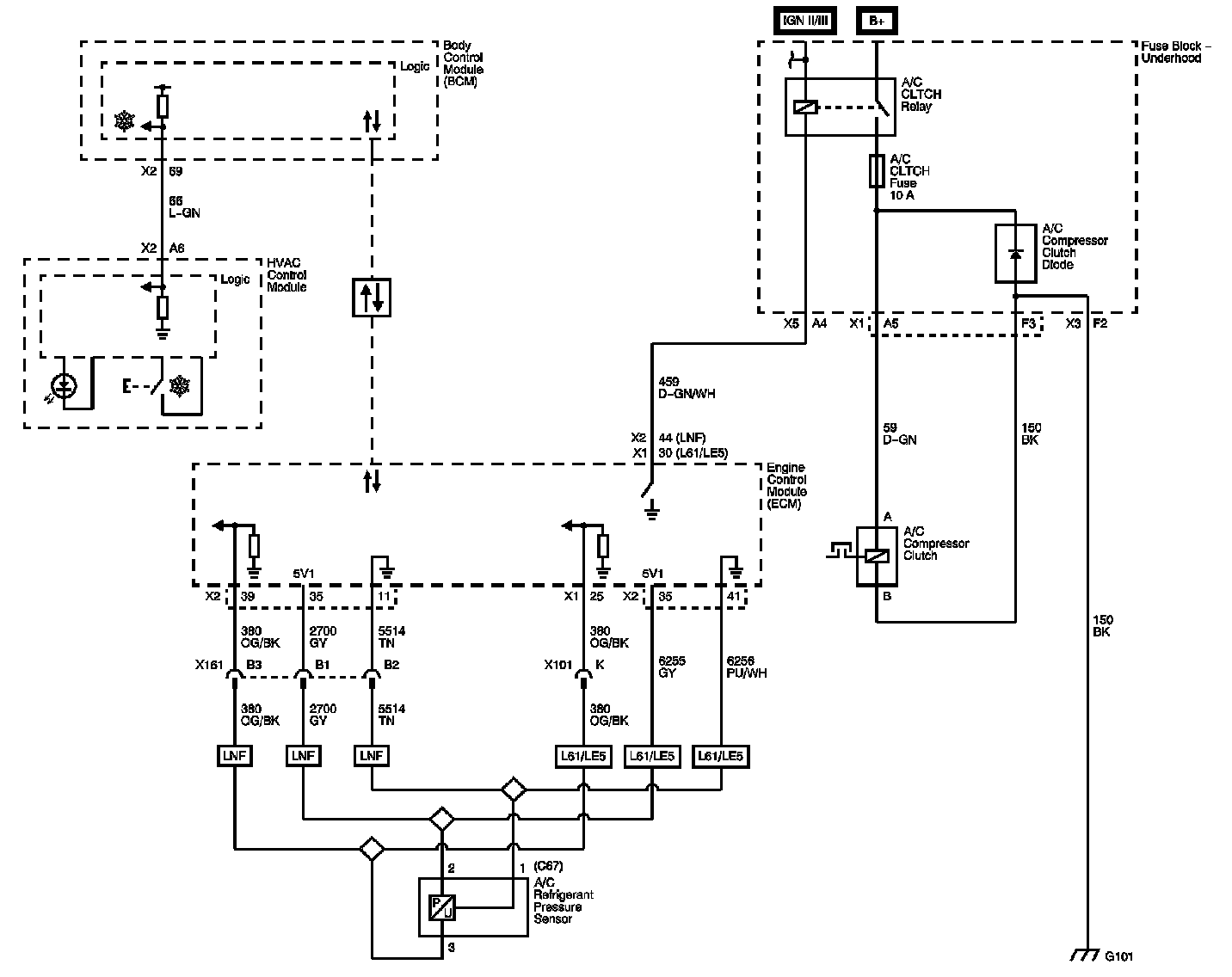

Compressor Controls

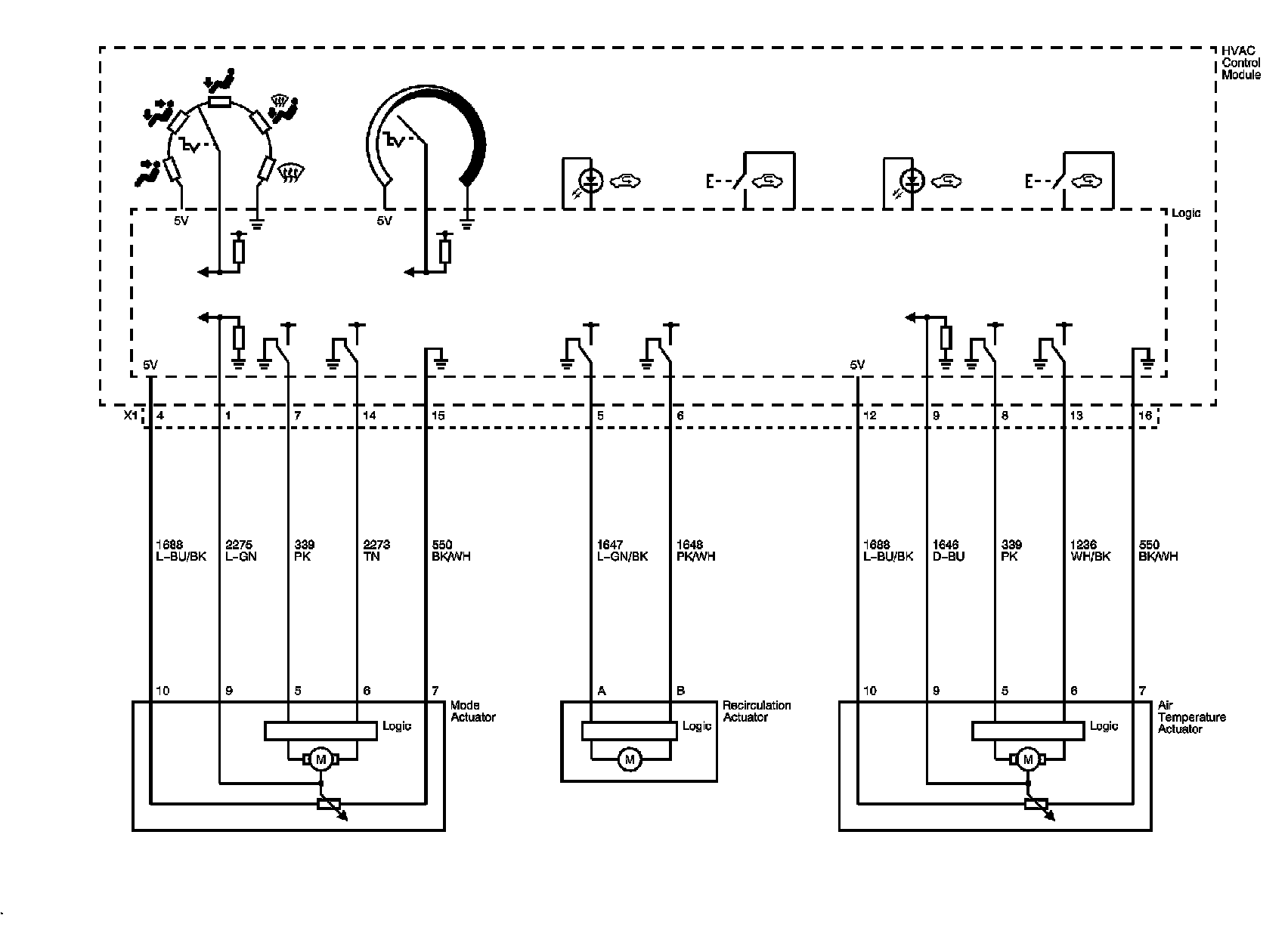

Mode and Air Temperature Controls






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
