Home >> Chevrolet >> 2008 >> Cobalt L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo



Component Connector End Views

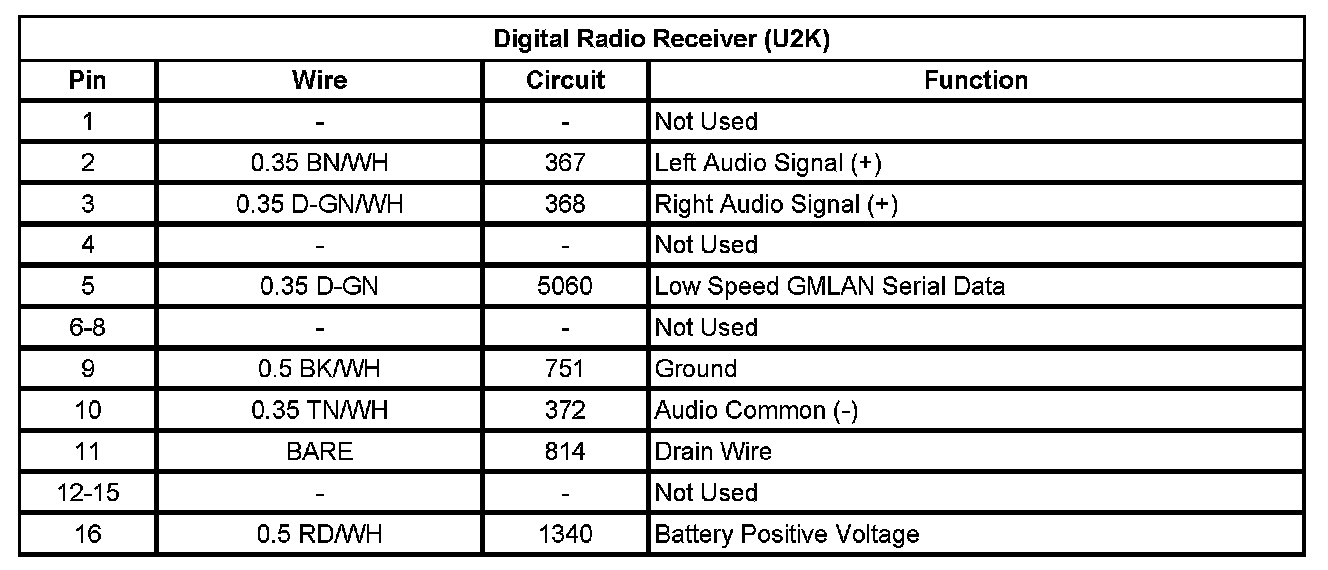

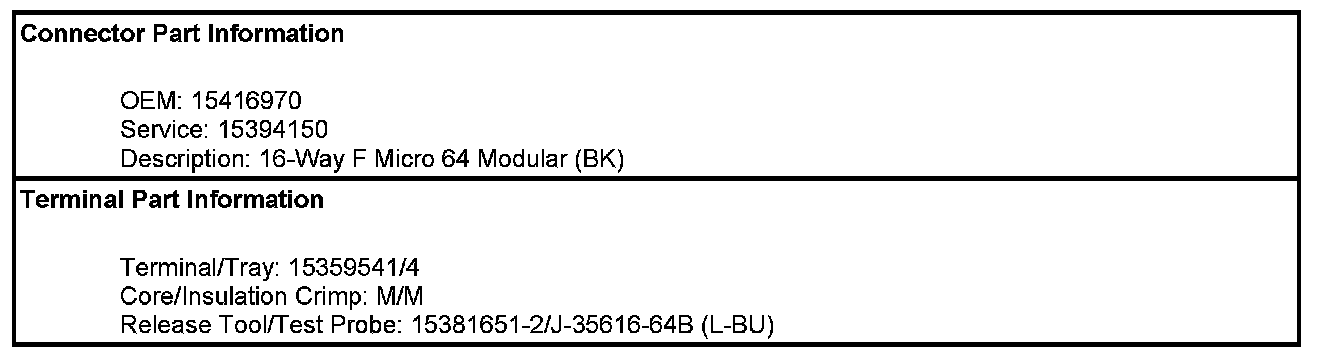

Digital Radio Receiver (U2K)

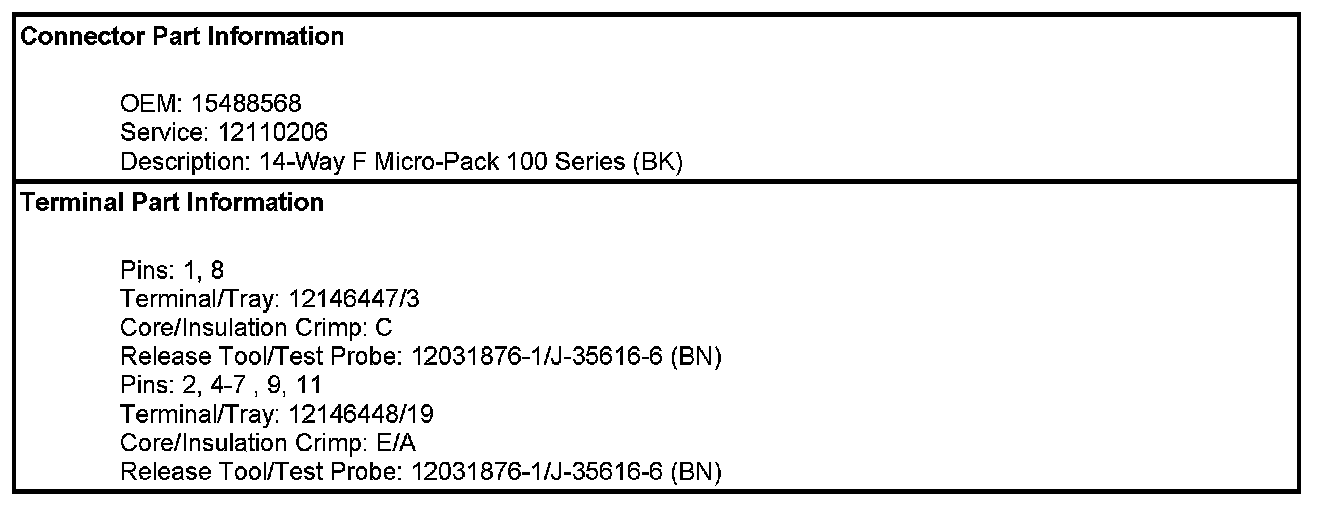

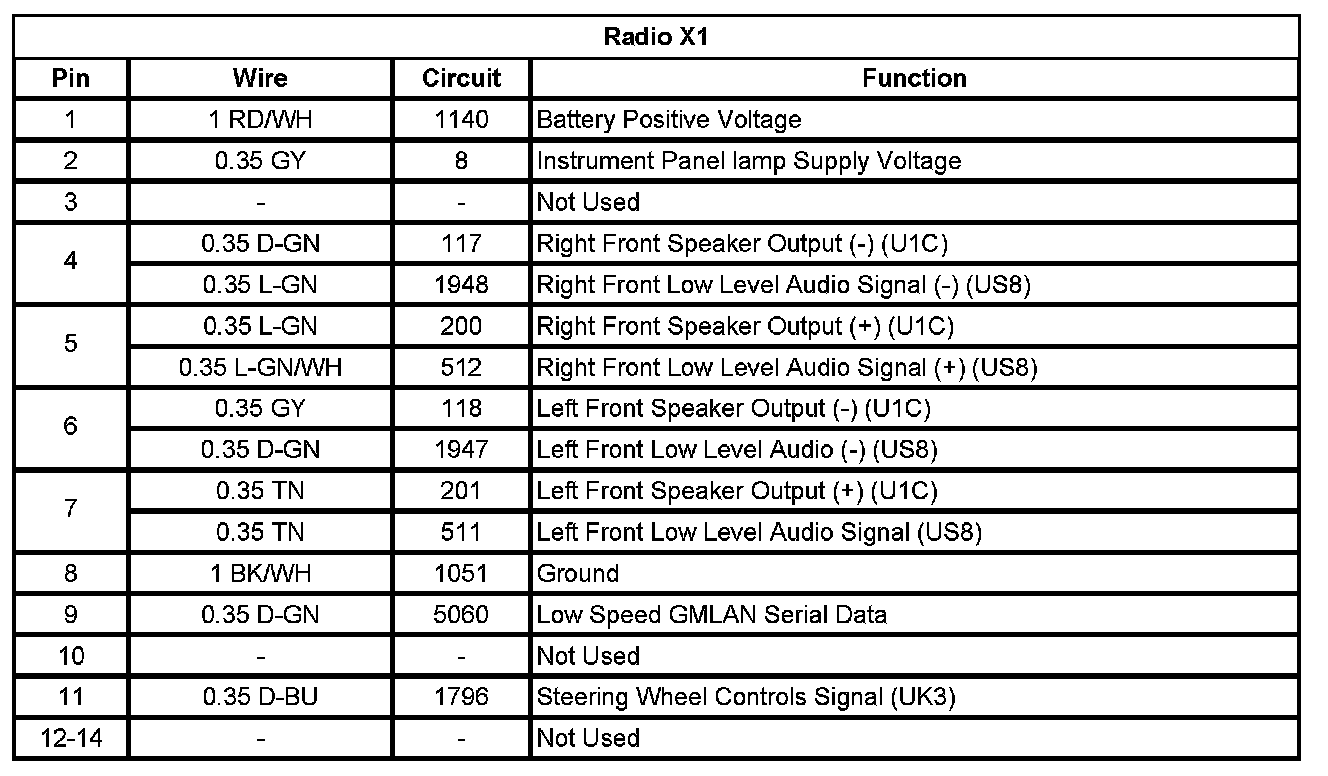

Radio X1 (UQ3)

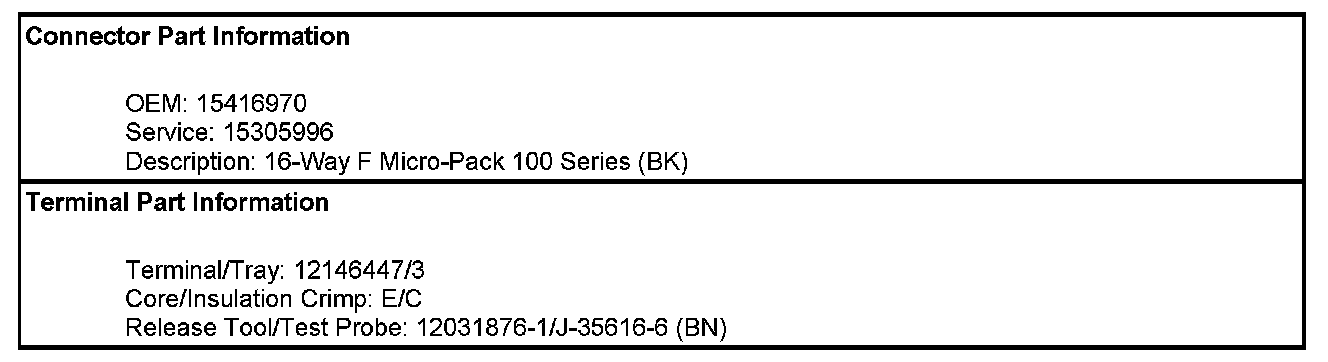

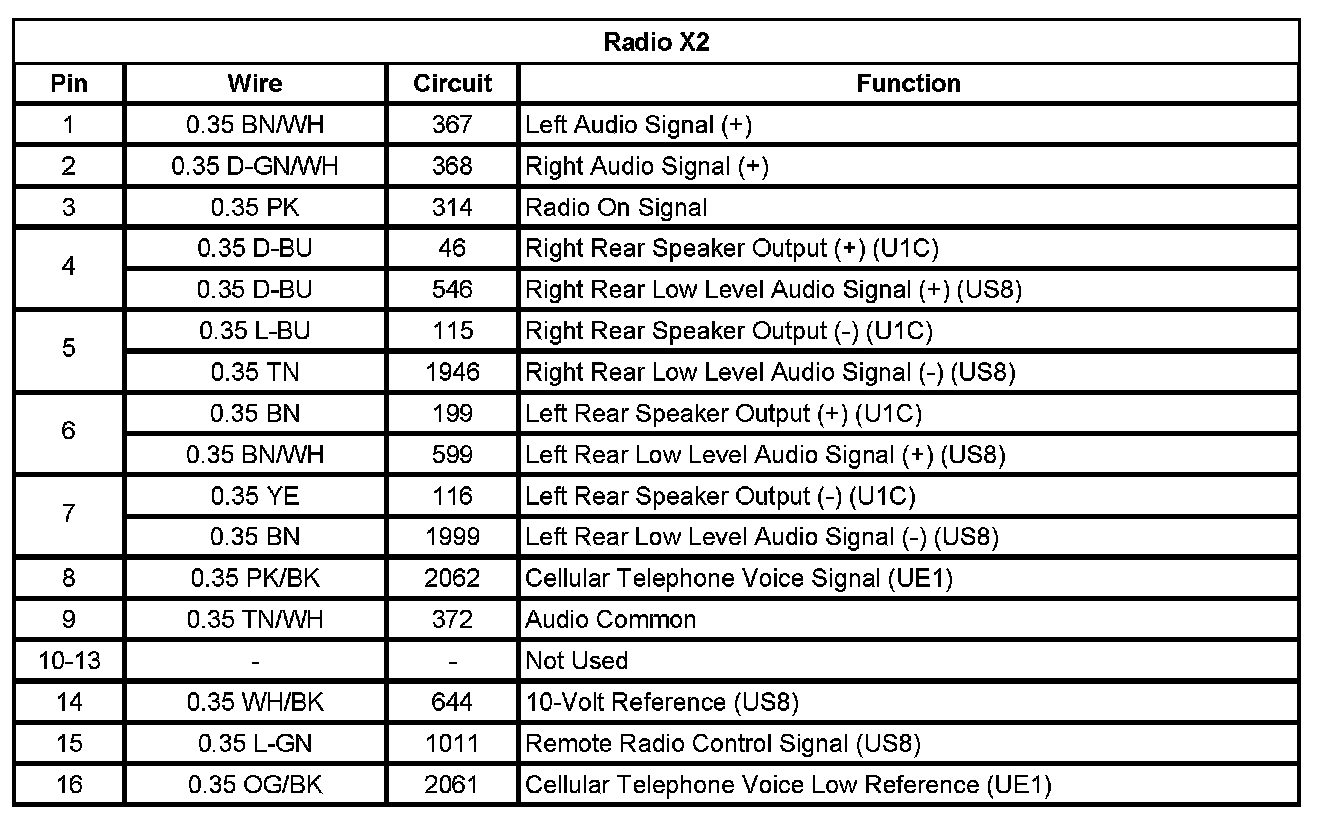

Radio X2 (UQ3)
