Power Trunk / Liftgate Lock Actuator

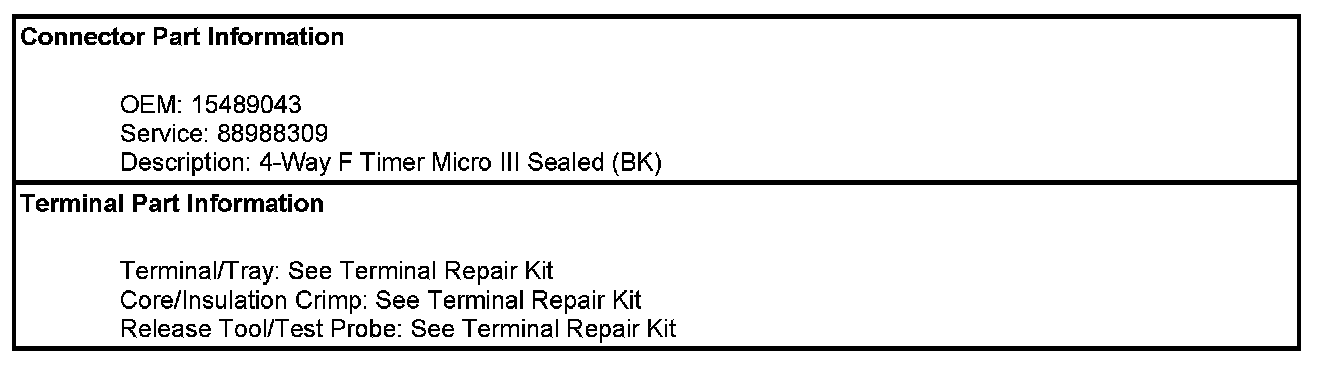

Component Connector End Views - Continued

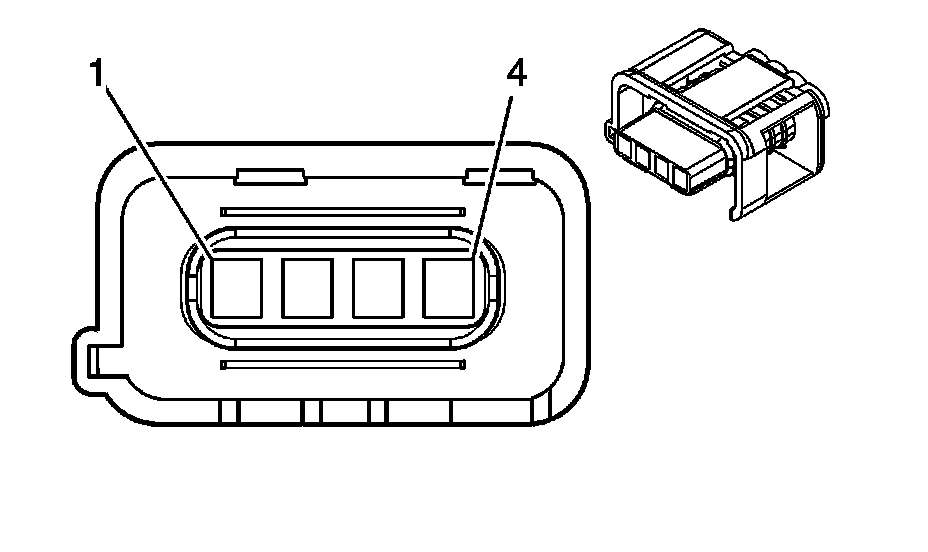

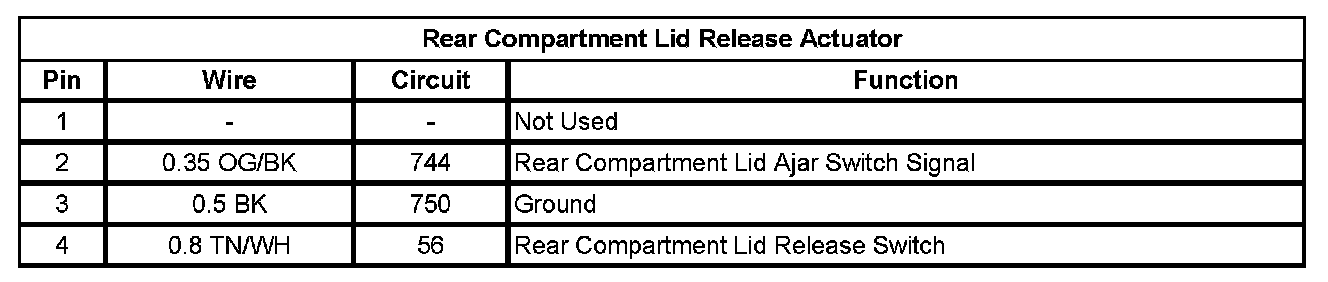

Rear Compartment Lid Release Actuator
