Pedal Positioning Sensor
Pedal Positioning Sensor

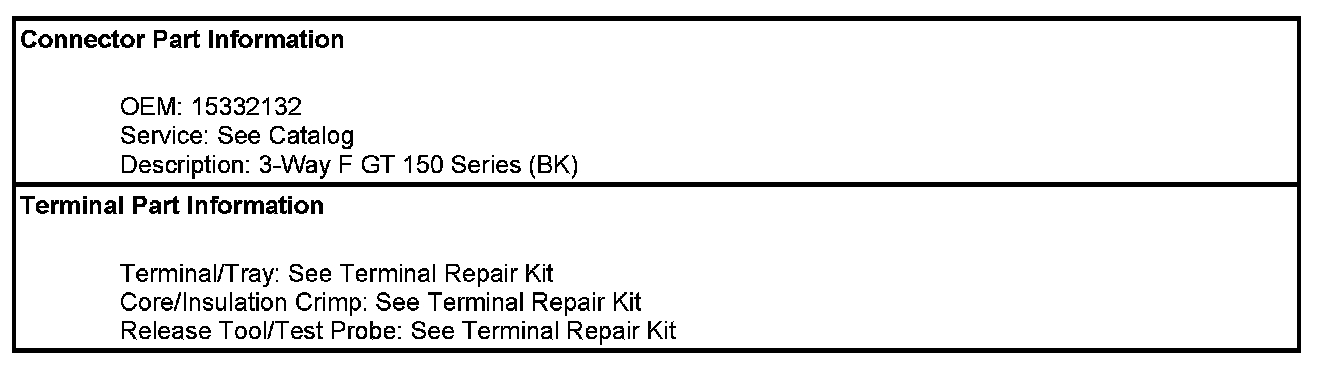

Component Connector End Views

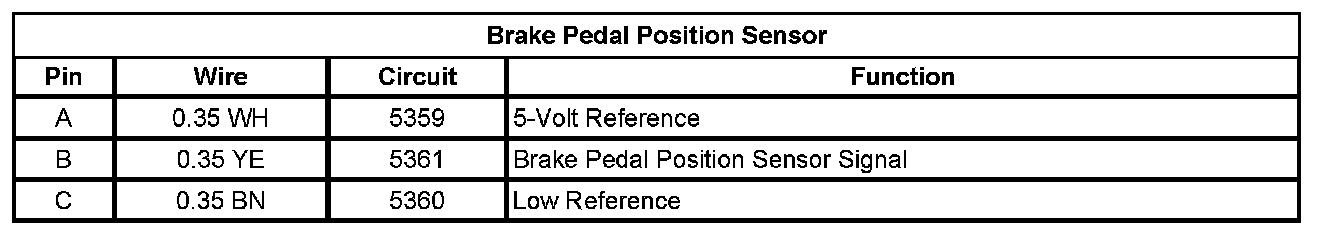

Brake Pedal Position Sensor
