Impact Sensor



Component Connector End Views - Continued

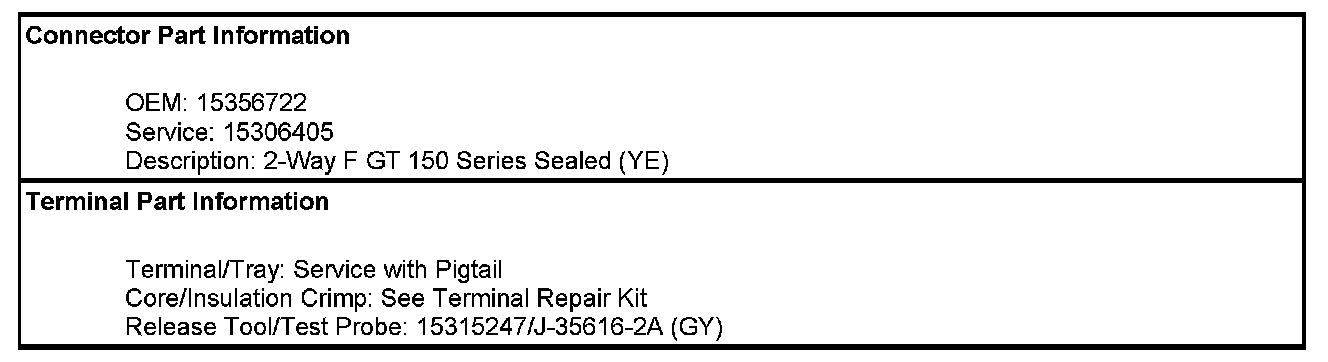

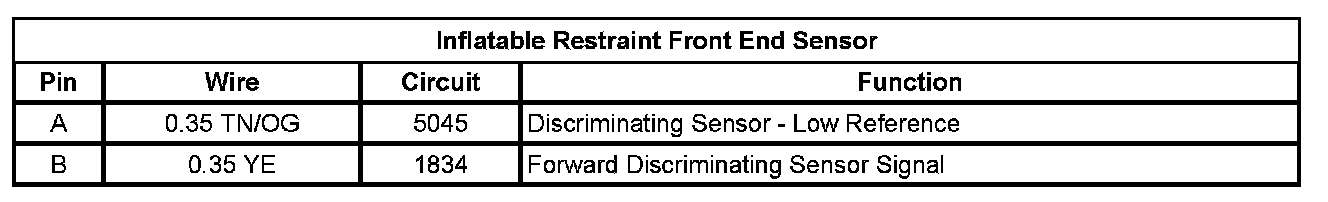

Inflatable Restraint Front End Sensor














Inflatable Restraint Front Passenger Presence System (PPS) Sensor

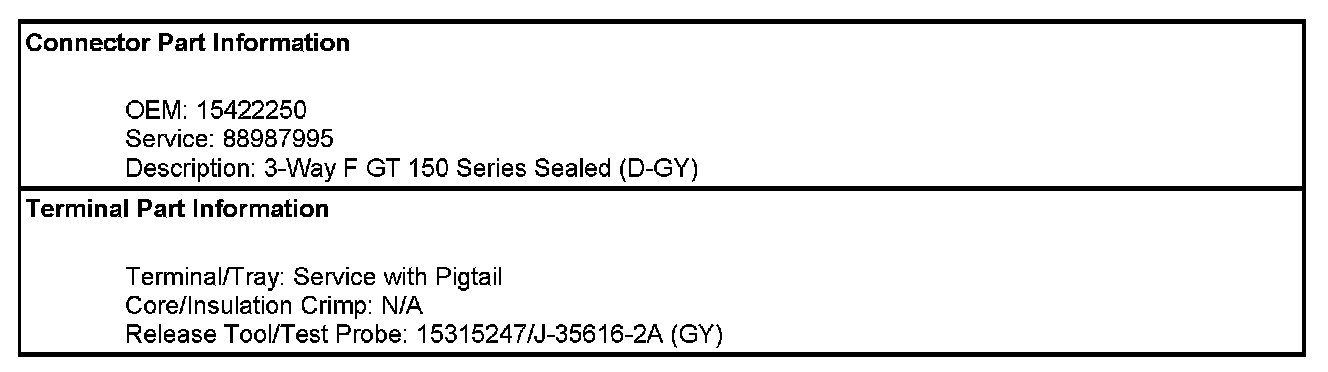

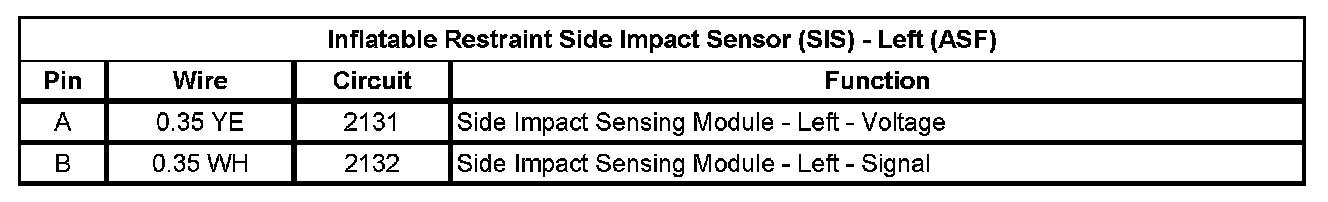

Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

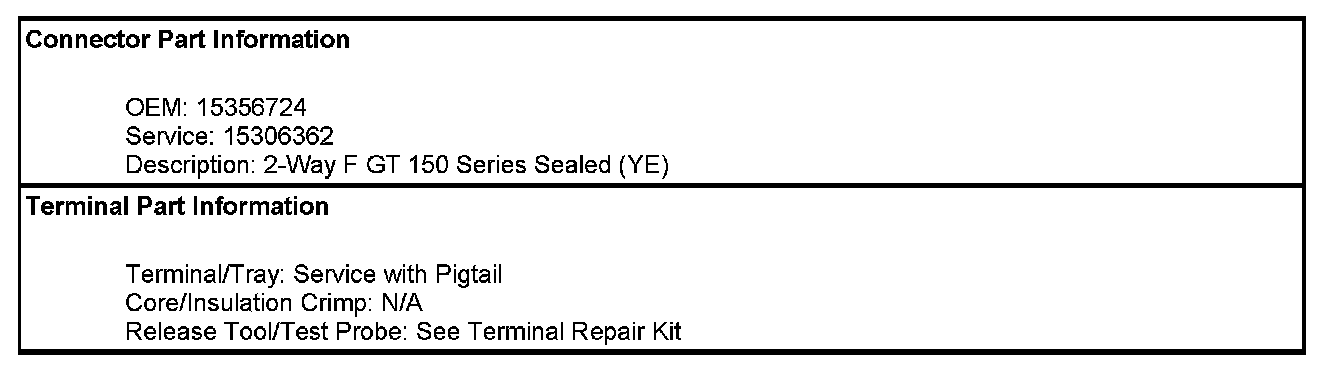

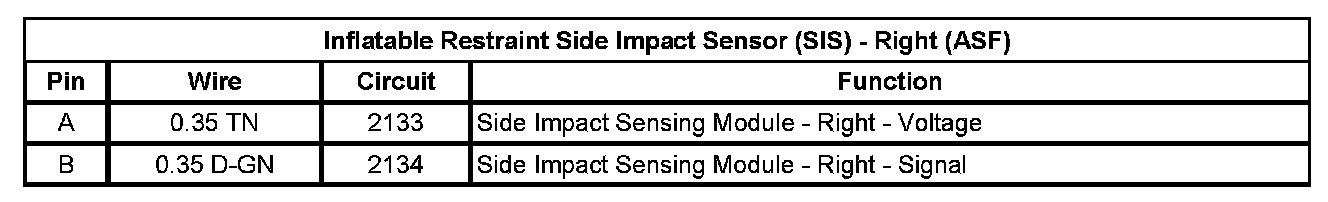

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
