Home >> Chevrolet >> 2008 >> Cobalt L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Connector Views

Connector Views

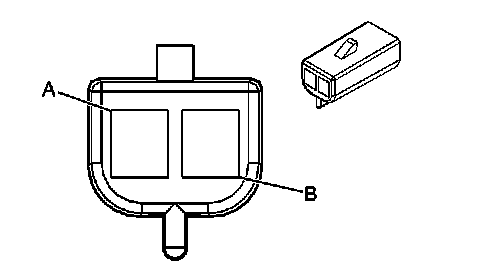

Component Connector End Views

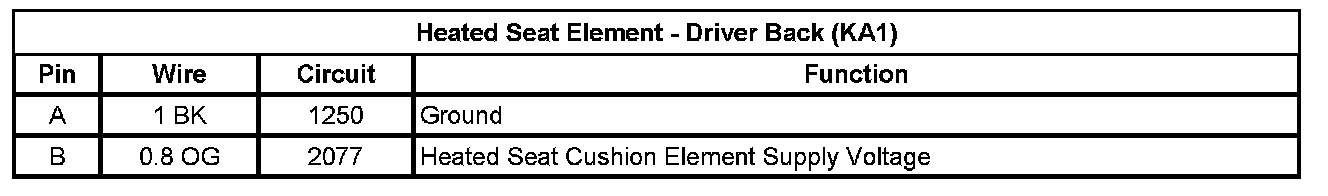

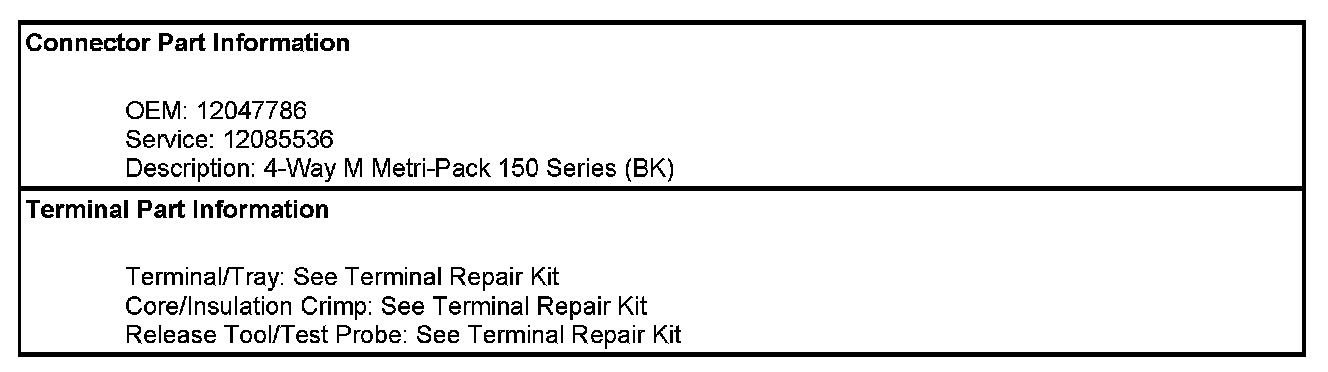

Heated Seat Element - Driver Back (KA1)

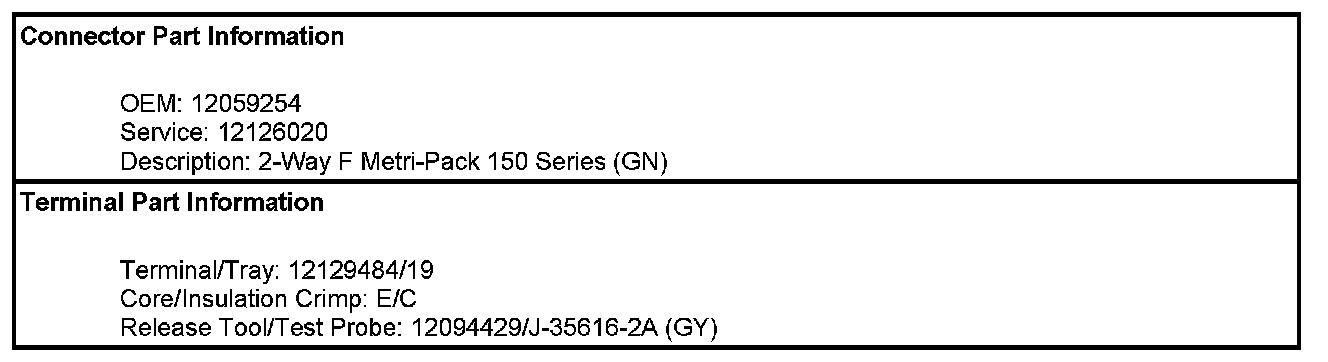

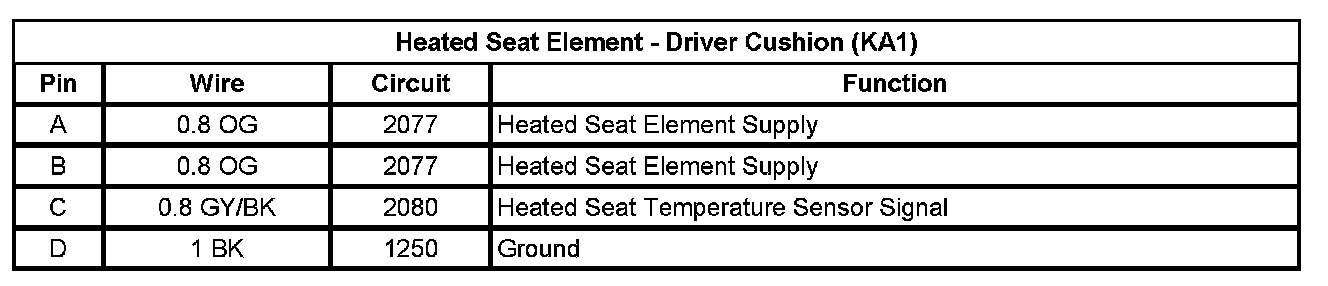

Heated Seat Element - Driver Cushion (KA1)

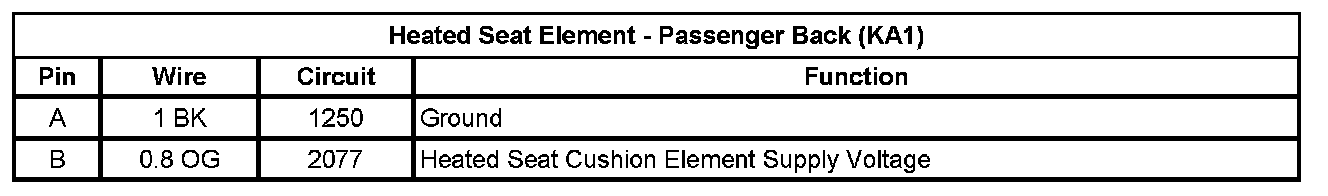

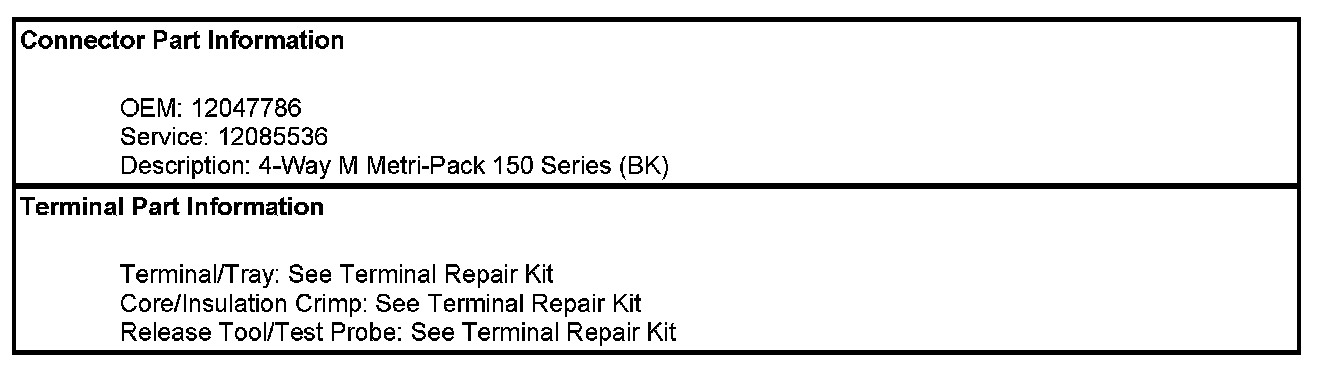

Heated Seat Element - Passenger Back (KA1)














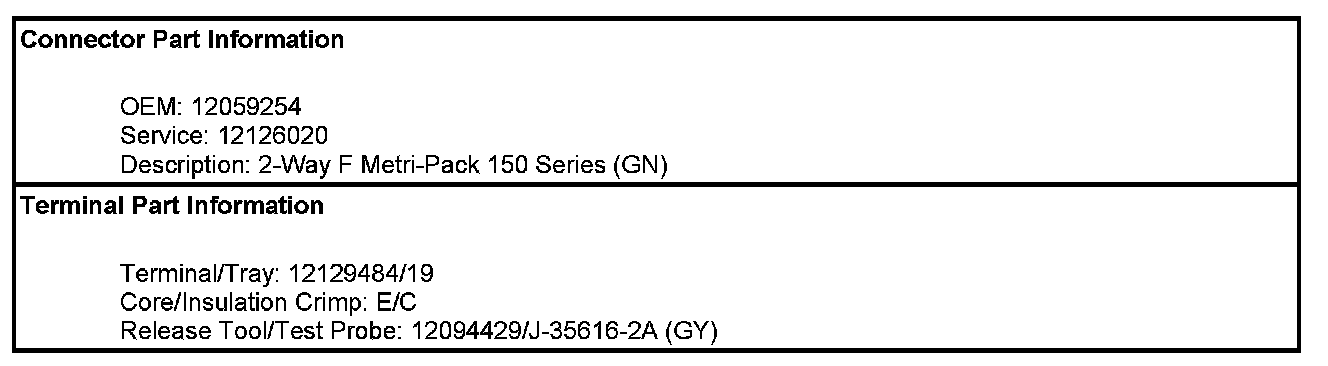

Heated Seat Element - Passenger Cushion (KA1)
