Rear Split Folding Seat Back Replacement

Rear Split Folding Seat Back Replacement

Removal Procedure




1. Pull the release handles for the rear split folding seat backs located inside the rear compartment opening.
2. Fold down the split folding seat backs slightly to release the seat back from the seat back latch.
3. With a flat-bladed tool (2) release the retainer (3) for the pivot bolt on the latch assembly.

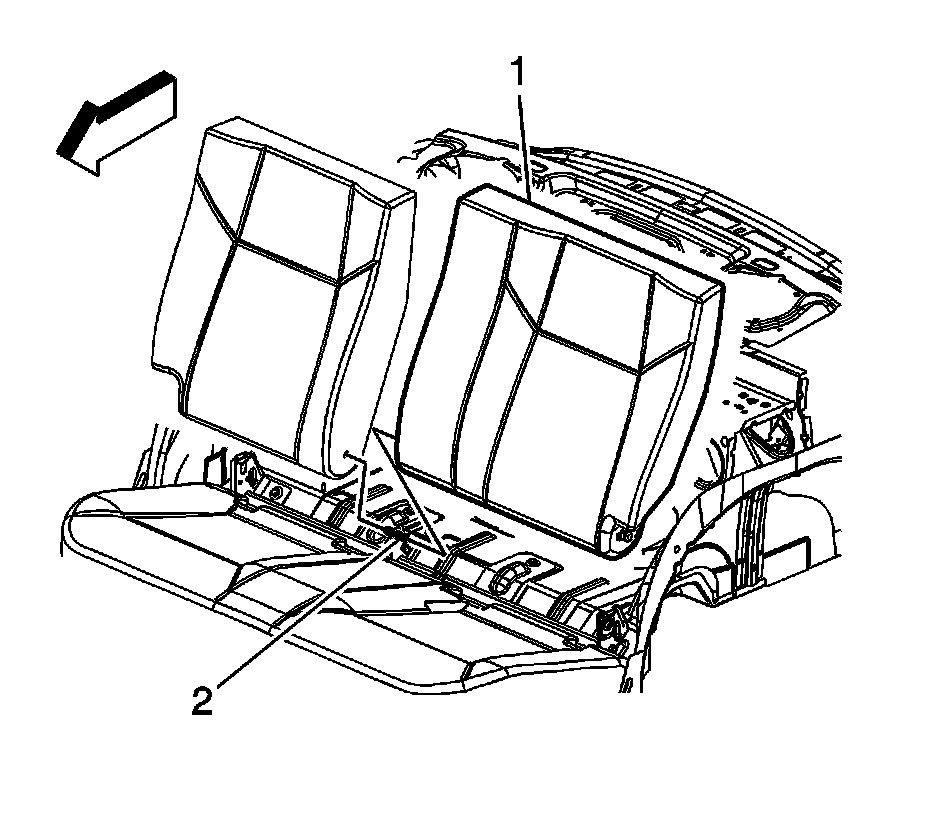

4. Lift up the seat back (1). This will disengage the pivot bolt (3) from the latch assembly.




5. Slide the outboard side of the seat back (1) towards the center of the vehicle. This will remove the seat back from the center pivot pin (2) on the latch assembly.
6. Remove the seat back from the vehicle.

Installation Procedure




1. Position the seat back (1) into the vehicle.
2. Align the opening on the seat back bottom to the center pivot pin (2) on the latch assembly.
3. Slide the outboard side of the seat back (1) towards the outside of the vehicle. This will install the seat back (1) to the center pivot pin (2) on the latch assembly.




4. Align the shoulder bolt to the retainer (3) on the latch assembly.
5. Push the down on the seat back (1). This will engage the pivot bolt to the retainer (3) on the latch assembly.
6. Return the seat back (1) to the original position.
