Front Door Latch: Diagrams

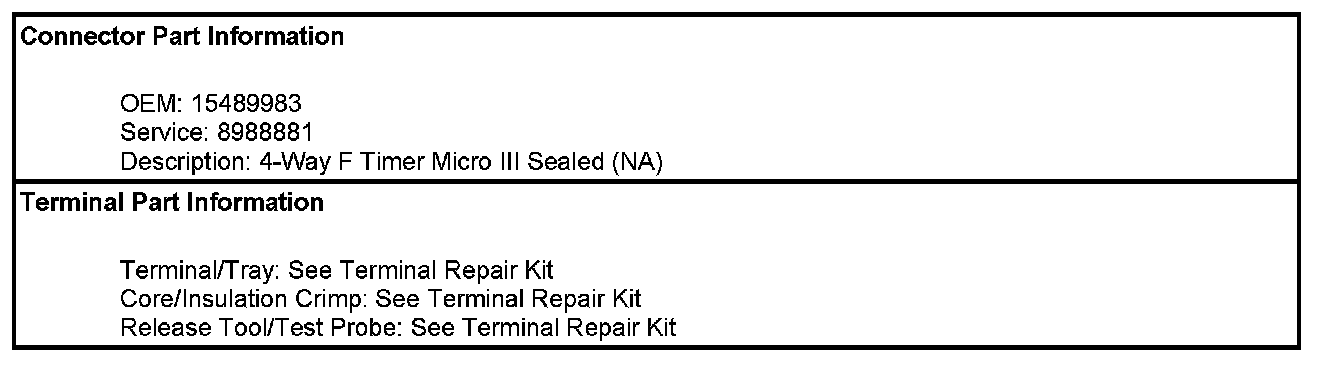

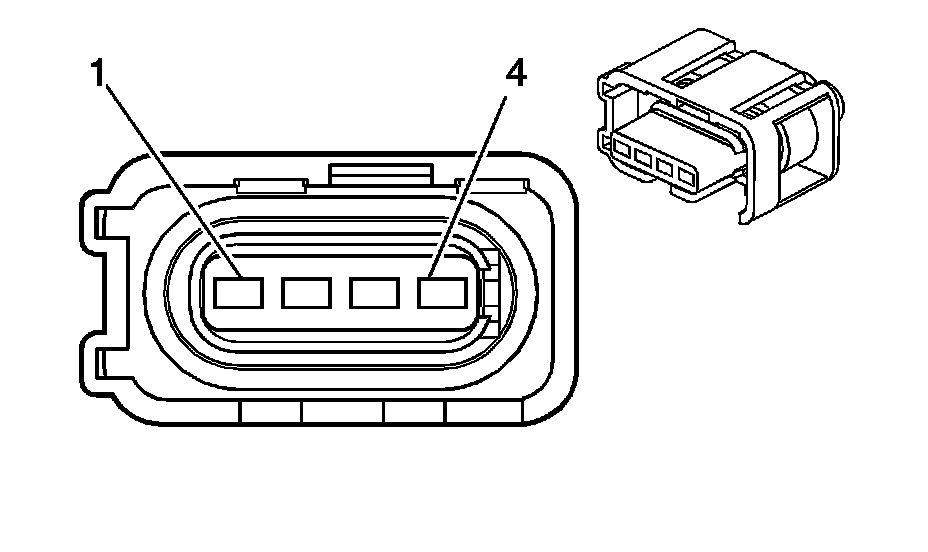

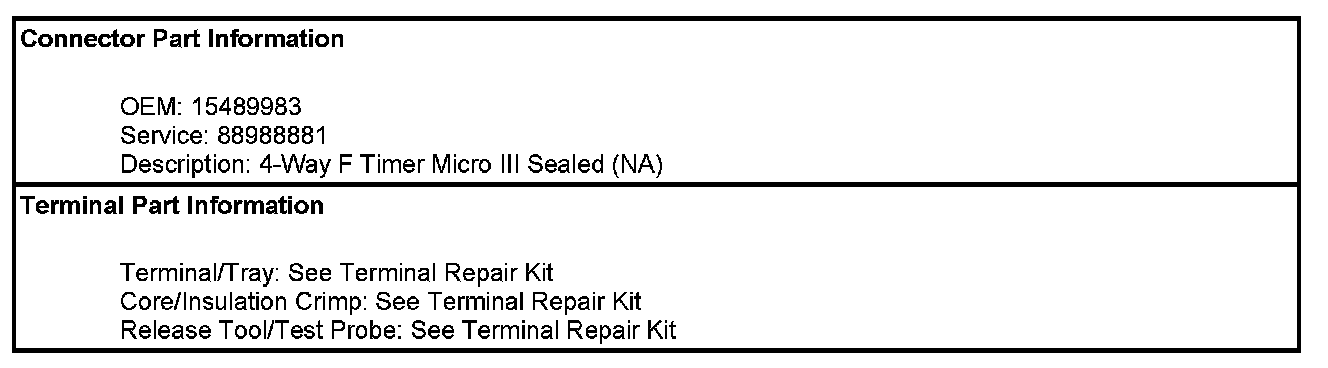

Component Connector End Views

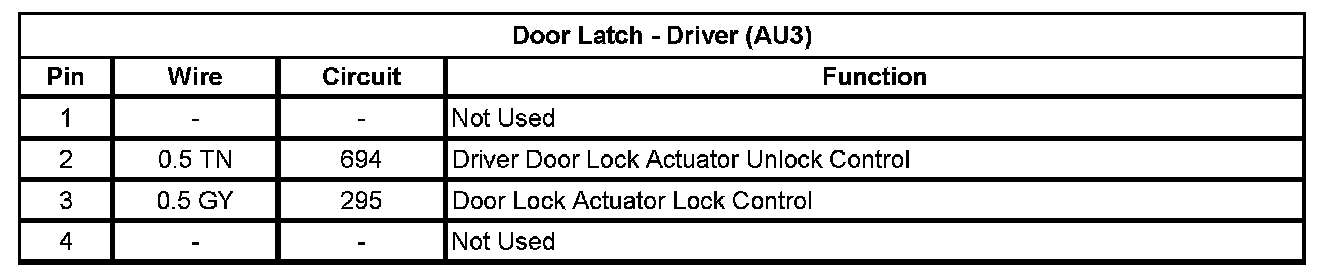

Door Latch - Driver (AU3)

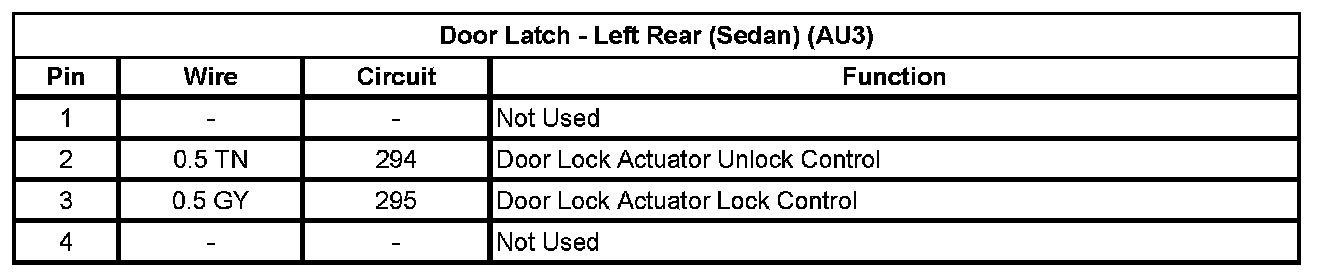

Door Latch - Left Rear (Sedan) (AU3)

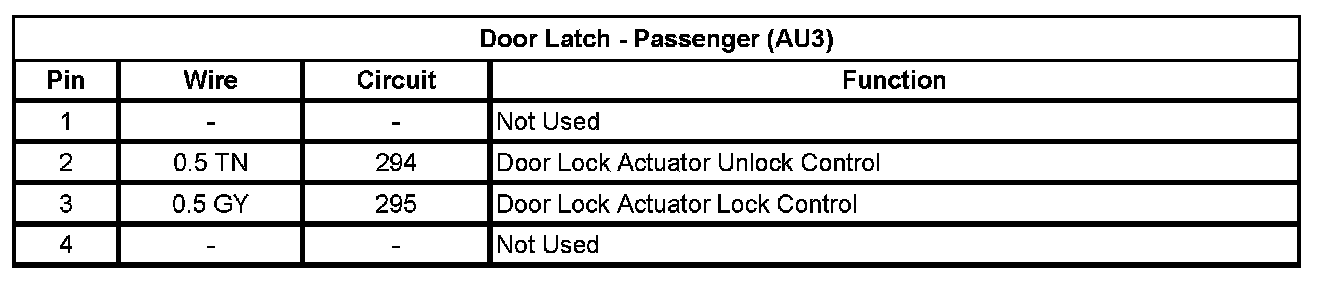

Door Latch - Passenger (AU3)

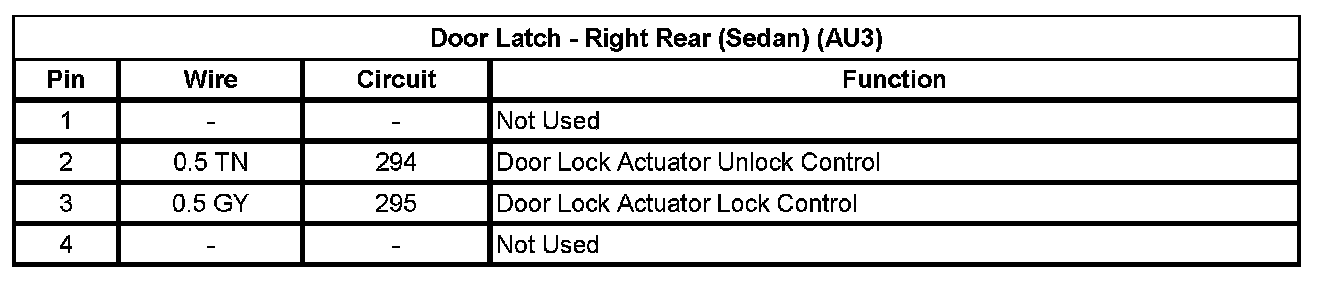

Door Latch - Right Rear (Sedan) (AU3)
