Secondary Air Injection Pump Inlet Hose/Duct Replacement

Secondary Air Injection Pump Inlet Hose/Duct Replacement

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

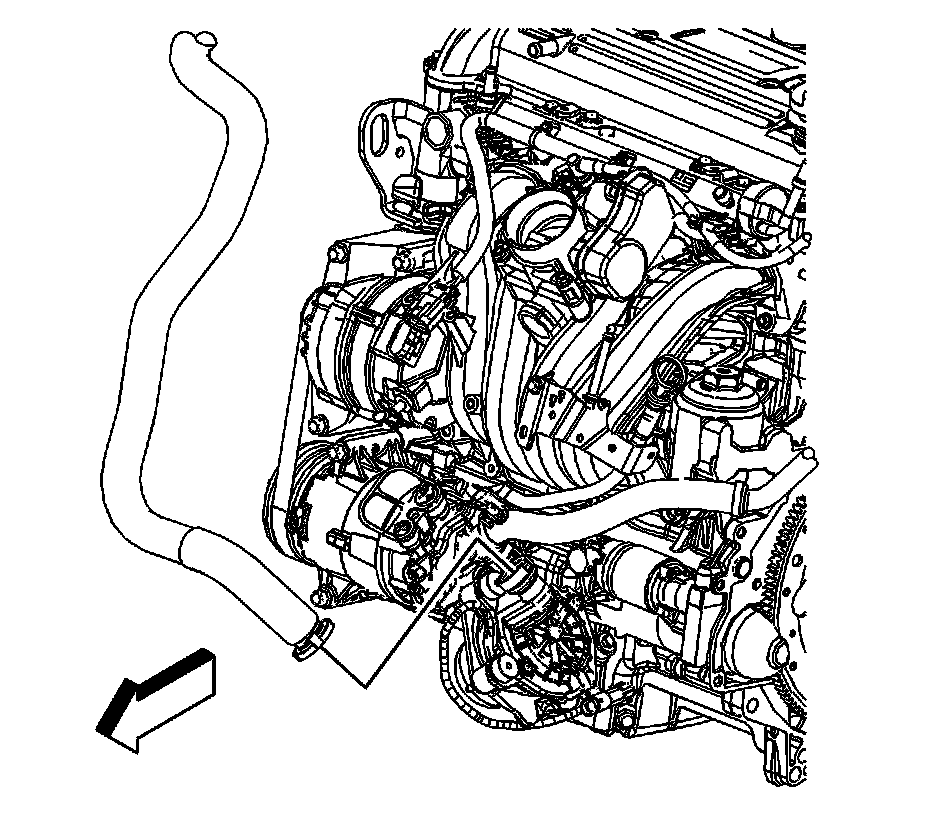

2. Disconnect the secondary air injection (AIR) pump inlet hose quick connect fitting at the AIR pump.
3. Lower the vehicle.




4. Remove the air cleaner outlet duct.

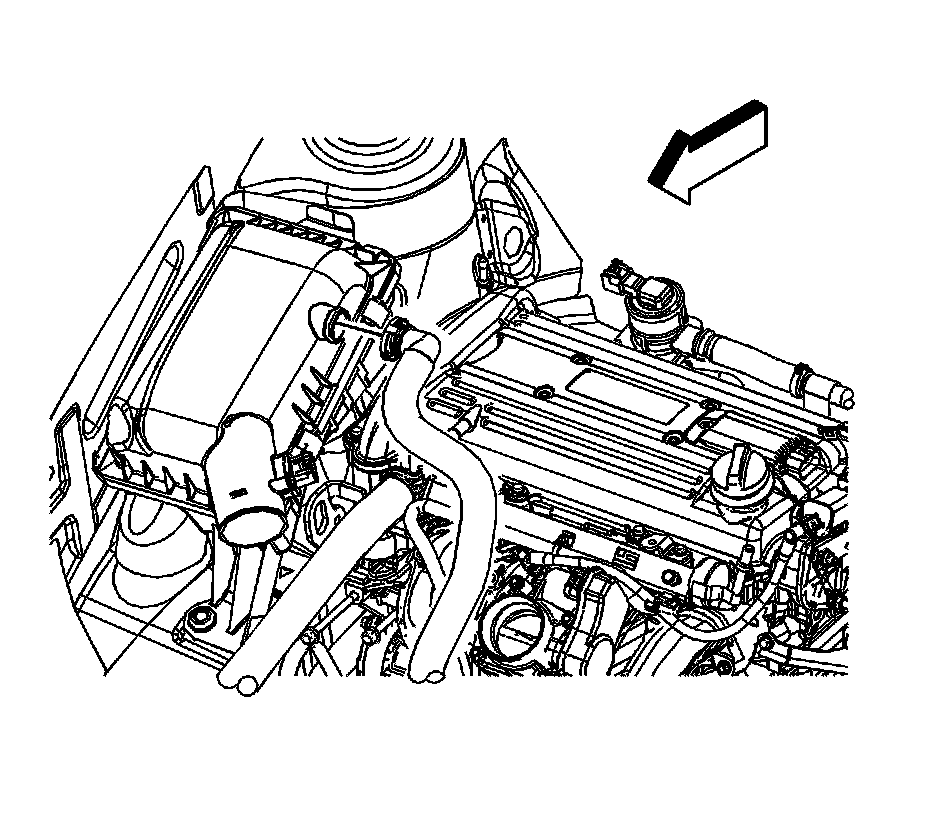

5. Disconnect the AIR pump inlet hose quick connect fitting from the air cleaner.

Installation Procedure




1. Install the AIR pump inlet hose to the vehicle.
2. Connect the AIR pump inlet hose quick connect fitting to the air cleaner.
3. Install the air cleaner outlet duct.




4. Raise and suitably support the vehicle.
5. Connect the AIR pump inlet hose quick connect fitting at the AIR pump.
6. Lower the vehicle.
