Transmission Front Mount Replacement

Transmission Front Mount Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

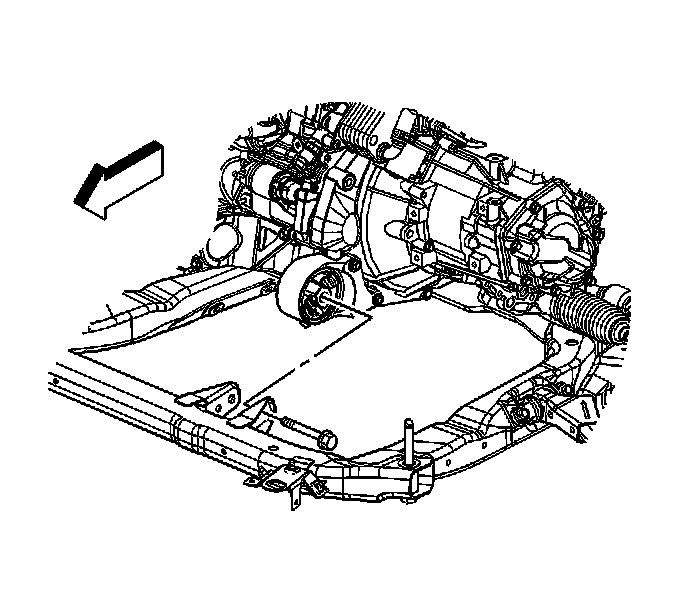

2. Remove the front transaxle mount through bolt.

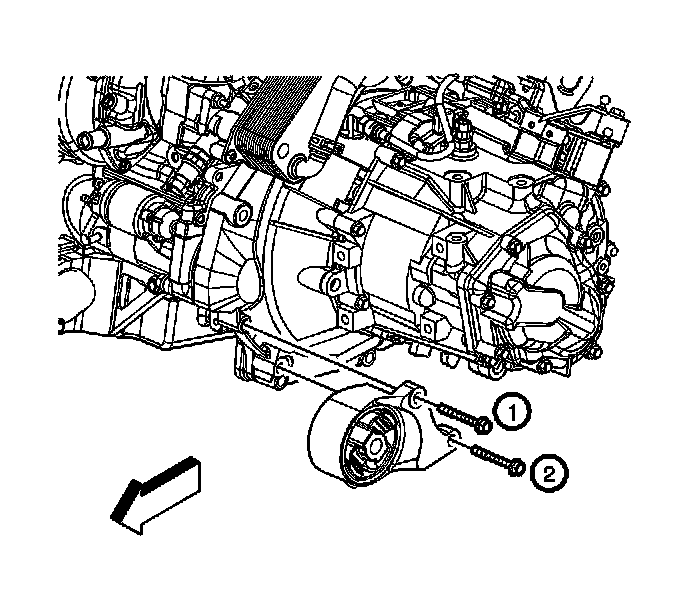

3. Remove the front transaxle mount to transaxle bolts.
4. Remove the front transaxle mount from the vehicle.



Installation Procedure






Notice: Refer to Fastener Notice .

1. Install the front transaxle mount to the transaxle bolts, and tighten in sequence.

Tighten the bolts to 90 N.m (66 lb ft).





2. Hand start the front transaxle mount through bolt.

Important: The front and rear transaxle mounts must be allowed to settle with the through bolts loosened.


3. Loosen the rear transaxle mount through bolt.
4. Tighten the transaxle mount through bolts in the following order:

1. Tighten the rear bolt to 100 N.m (74 lb ft).
2. Tighten the front bolt to 100 N.m (74 lb ft).


5. Lower the vehicle.
