Transmission Rear Mount Bracket Replacement

Transmission Rear Mount Bracket Replacement

Removal Procedure

1. Remove the rear transaxle mount. Refer to Transmission Rear Mount Replacement (Transmission Rear Mount Replacement) .

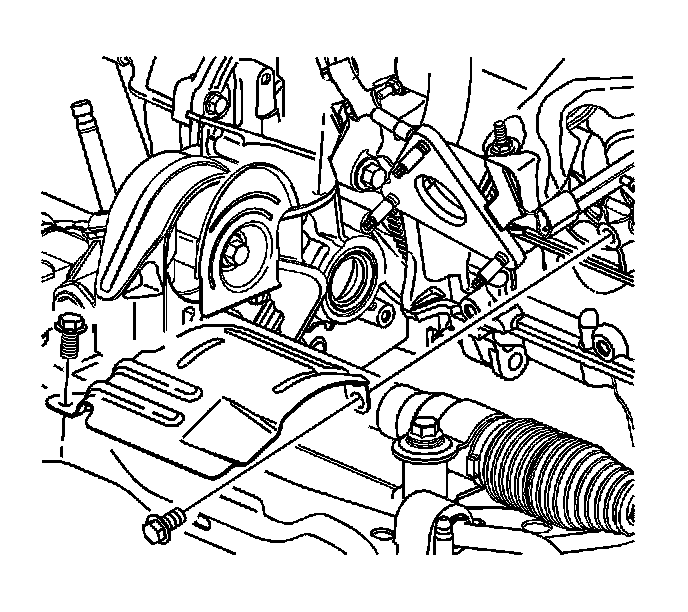

2. Remove the axle boot heat shield bolts.
3. Remove the axle boot heat shield.




4. Remove the rear transaxle mount bracket to transaxle bolts.
5. Remove the rear transaxle mount bracket from the transaxle.



Installation Procedure





1. Install the rear transaxle mount to transaxle.

Notice: Refer to Fastener Notice .

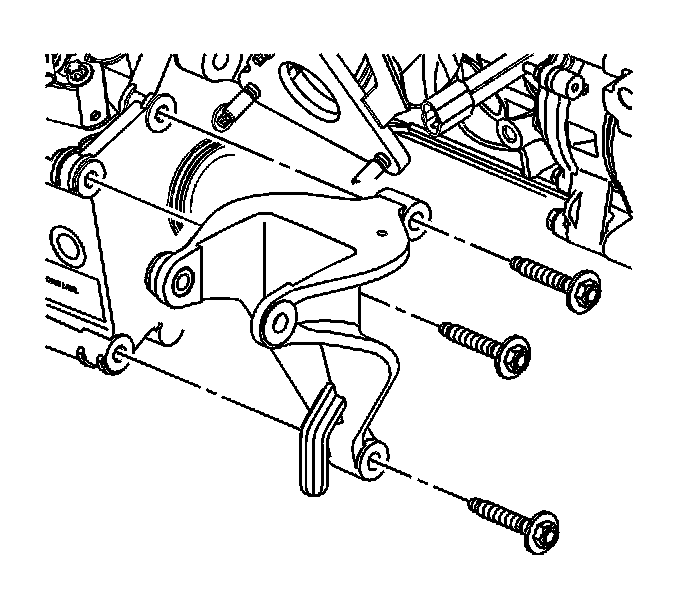

2. Using the following sequence, install the rear transaxle mount bracket bolts:

1. Tighten the middle bolt to 60 N.m (44 lb ft).
2. Tighten the lower bolt to 60 N.m (44 lb ft).
3. Tighten the upper bolt to 60 N.m (44 lb ft).






3. Install the axle boot heat shield.
4. Install the axle boot heat shield bolts.

* Tighten the heat shield to transmission mount bracket bolt to 10 N.m (89 lb in).
* Tighten the heat shield to engine bolt to 30 N.m (22 lb ft).


5. Install the rear transaxle mount. Refer to Transmission Rear Mount Replacement (Transmission Rear Mount Replacement) .
