MU3 - Manual Transaxle

Transmission Fluid Leak Diagnosis

Diagnostic Aids

Using the incorrect type of transaxle fluid may affect the sealing ability of the seals. Ensure the use of the correct type of transaxle fluid. The incorrect type of sealer may not be compatible with the transaxle fluid or may not have the correct characteristics for sealing the affected components. Ensure the use of the correct type of sealers. Refer to Sealers and Lubricants (MU3 - Manual Transaxle) .


Test Description

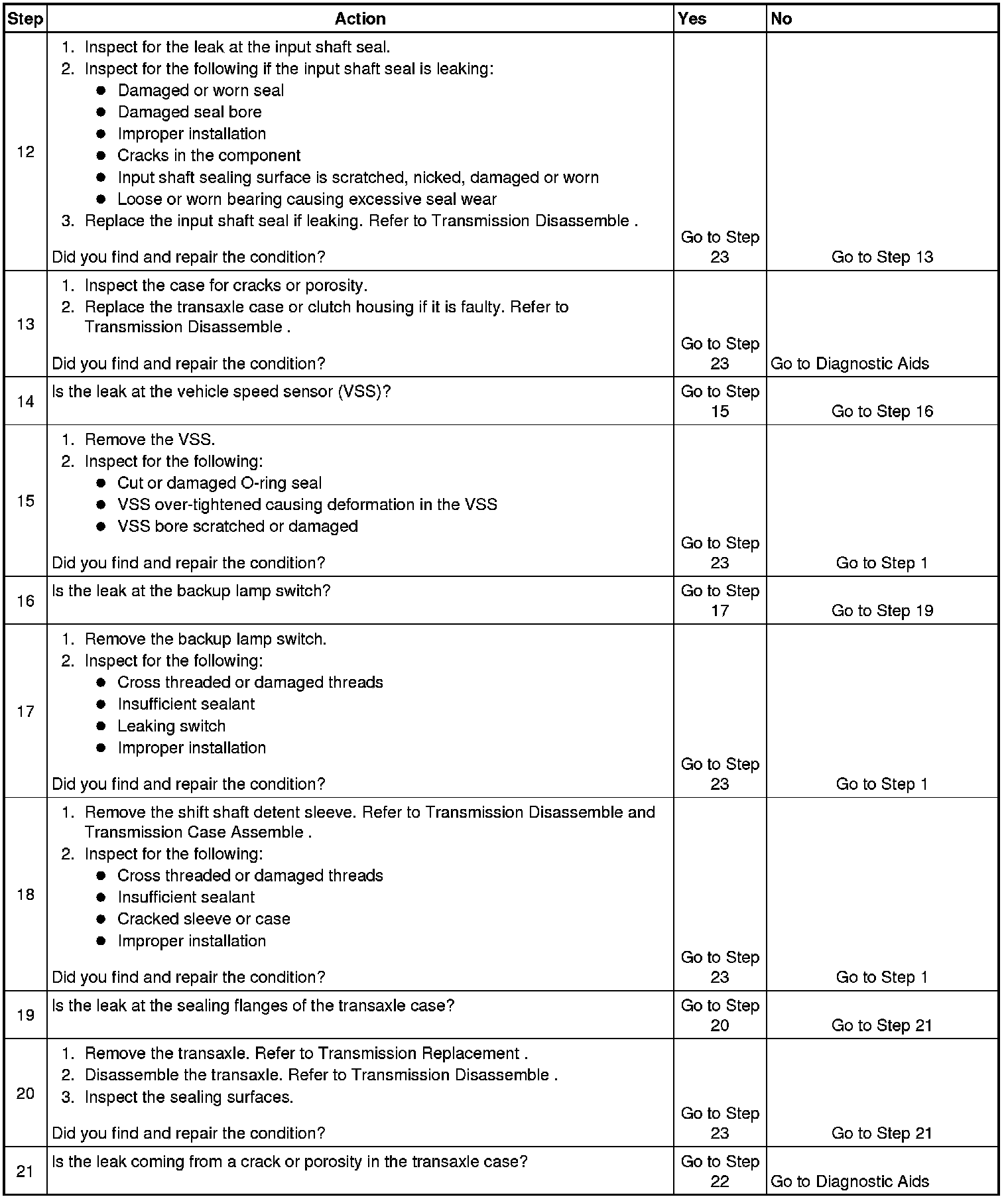

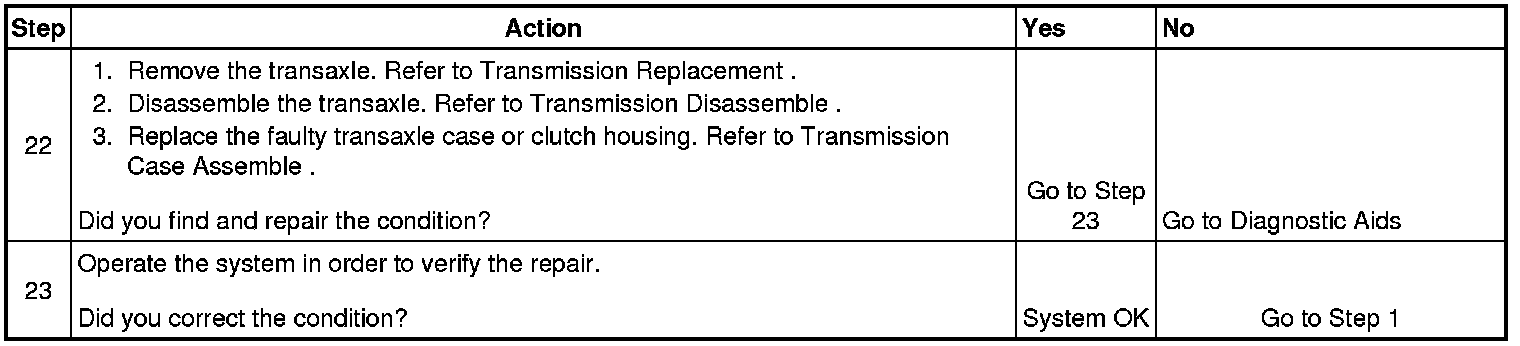

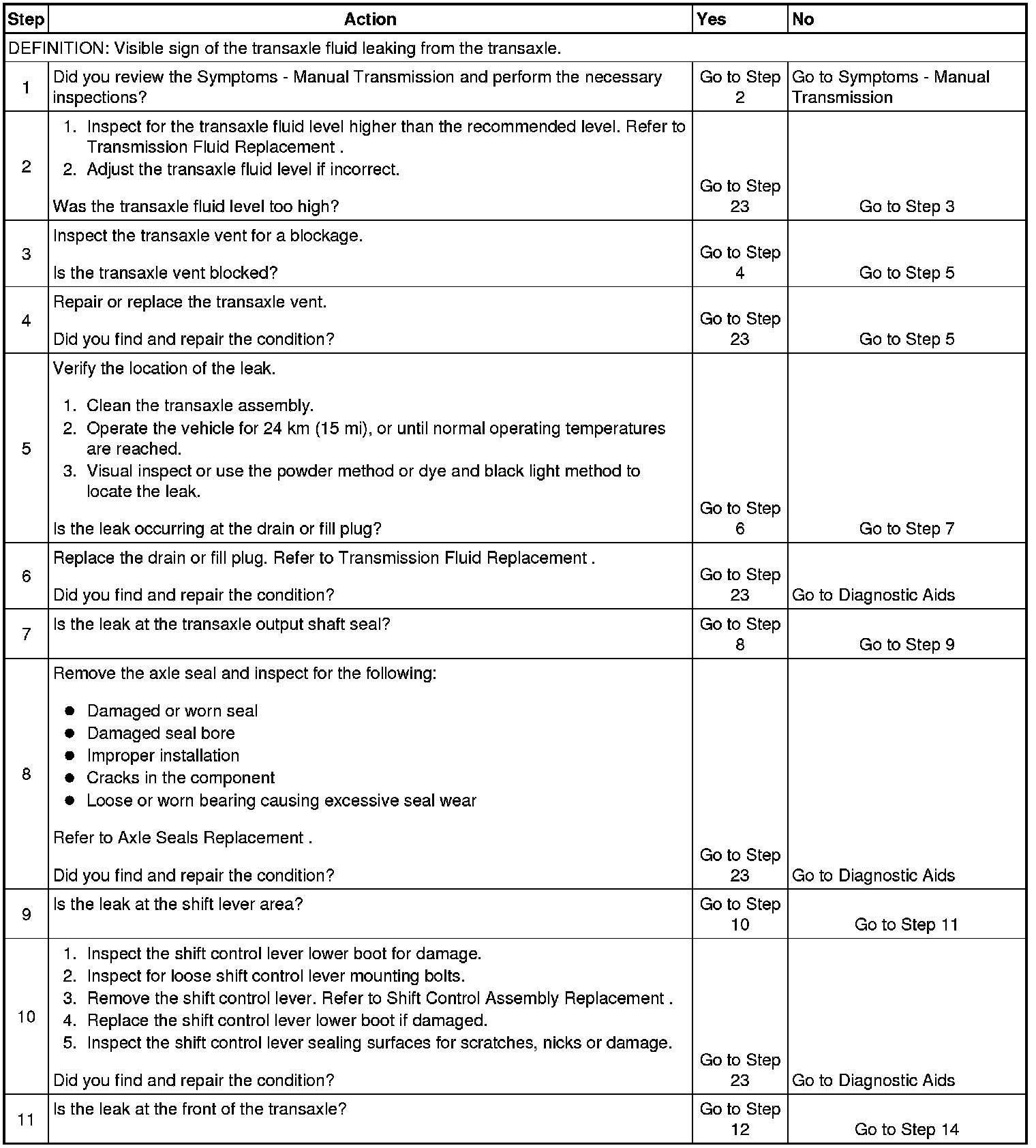

The number below refers to the step number on the diagnostic table.
5. Use an approved method to clean the transaxle to ensure the leak location is correctly identified. If using a powder method or dye method, ensure the products are compatible with the transaxle fluid.
