Clutch Housing Assemble

Clutch Housing Assemble


Tools Required
* 83 90 114 Sleeve
* 83 90 312 Drift, Bearing Race Input Shaft
* 87 91 311 Sleeve, Bearing Driver Shaft
* 87 92 210 Support, Differential Bearing
* 87 92 236 Support
* J 44809 Output Shaft Seal Installer

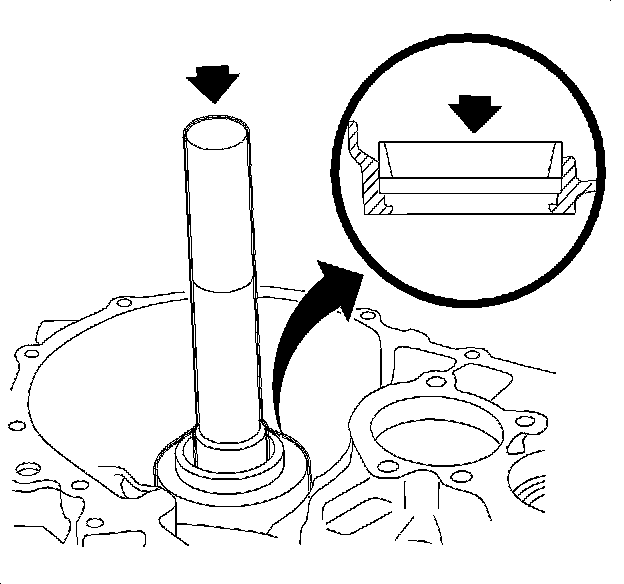

1. Press in the new differential bearing race using the J 44809 . Use the 87 92 236 as a base for the pressing operation.

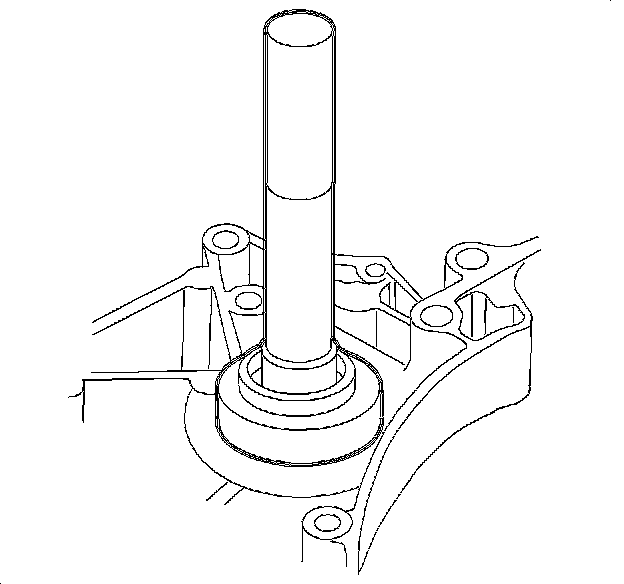

2. Install the new axle using the J 44809 .

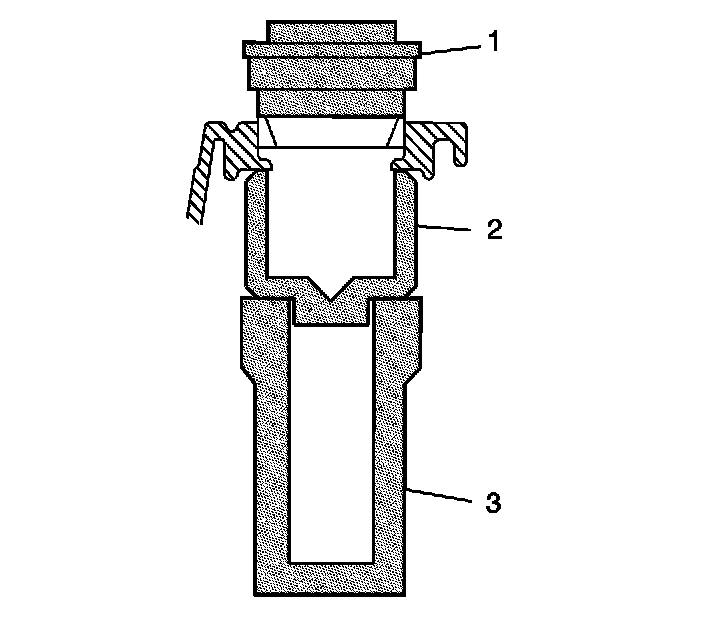

3. Press in the new input shaft bearing race using the 83 90 312 (1) . Use the 83 90 114 (2) and the 87 91 311 (3) as a base for the pressing operation.
