Home
>>
Chevrolet
>>
2008
>>
Cobalt L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
MU3 - Manual Transaxle
>>

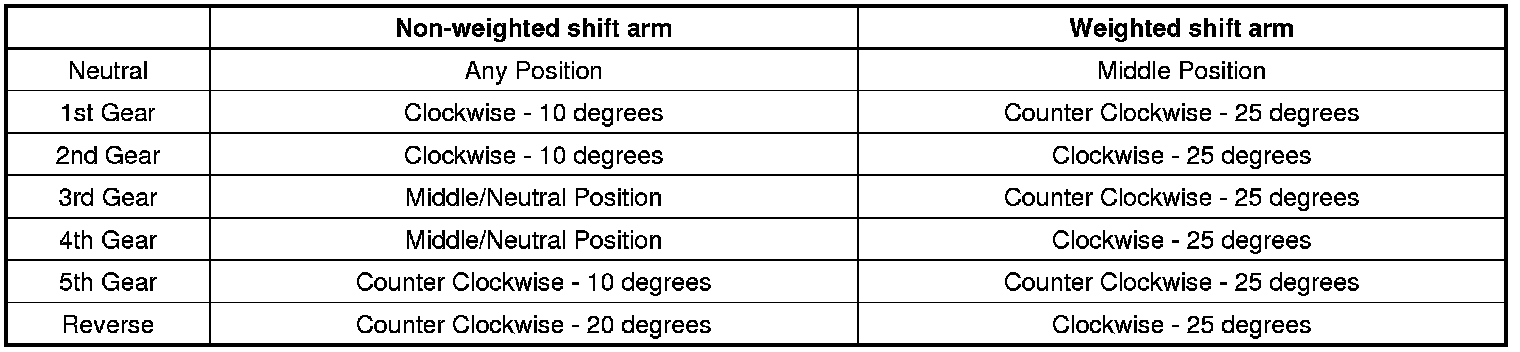

Shift Control Lever and Selector Control Lever Position/Rotation Specifications
Shift Control Lever and Selector Control Lever Position/Rotation Specifications
Shift Control Lever and Selector Control Lever Position/Rotation Specifications
