Home >> Chevrolet >> 2008 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram

System Diagram





Starting and Charging Scematics

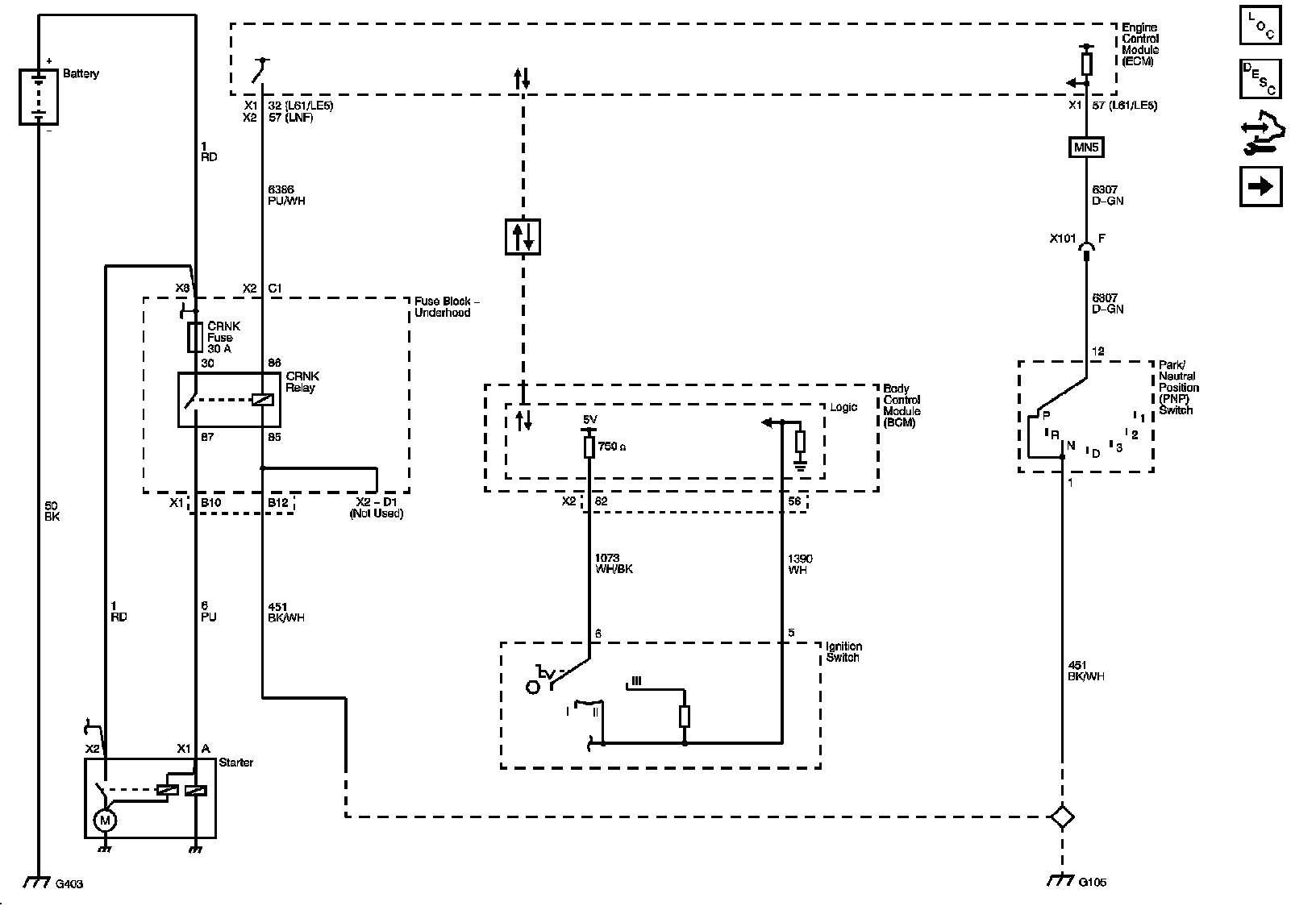

Starting:

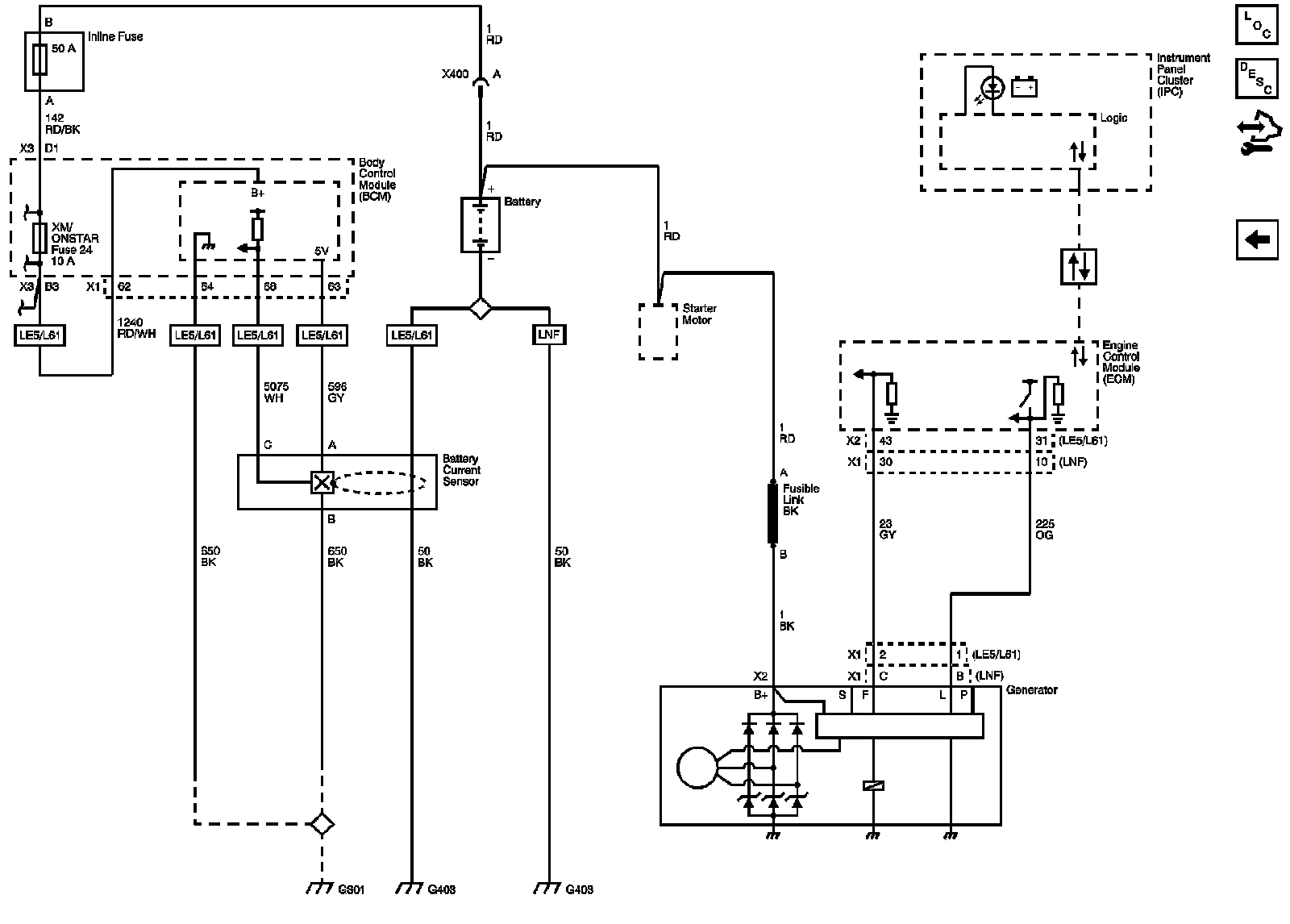

Charging:
