Home >> Chevrolet >> 2008 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Hydraulic Control Assembly - Antilock Brakes >> Service and Repair >> Brake Pressure Modulator Valve Bracket Replacement (Without JL4)

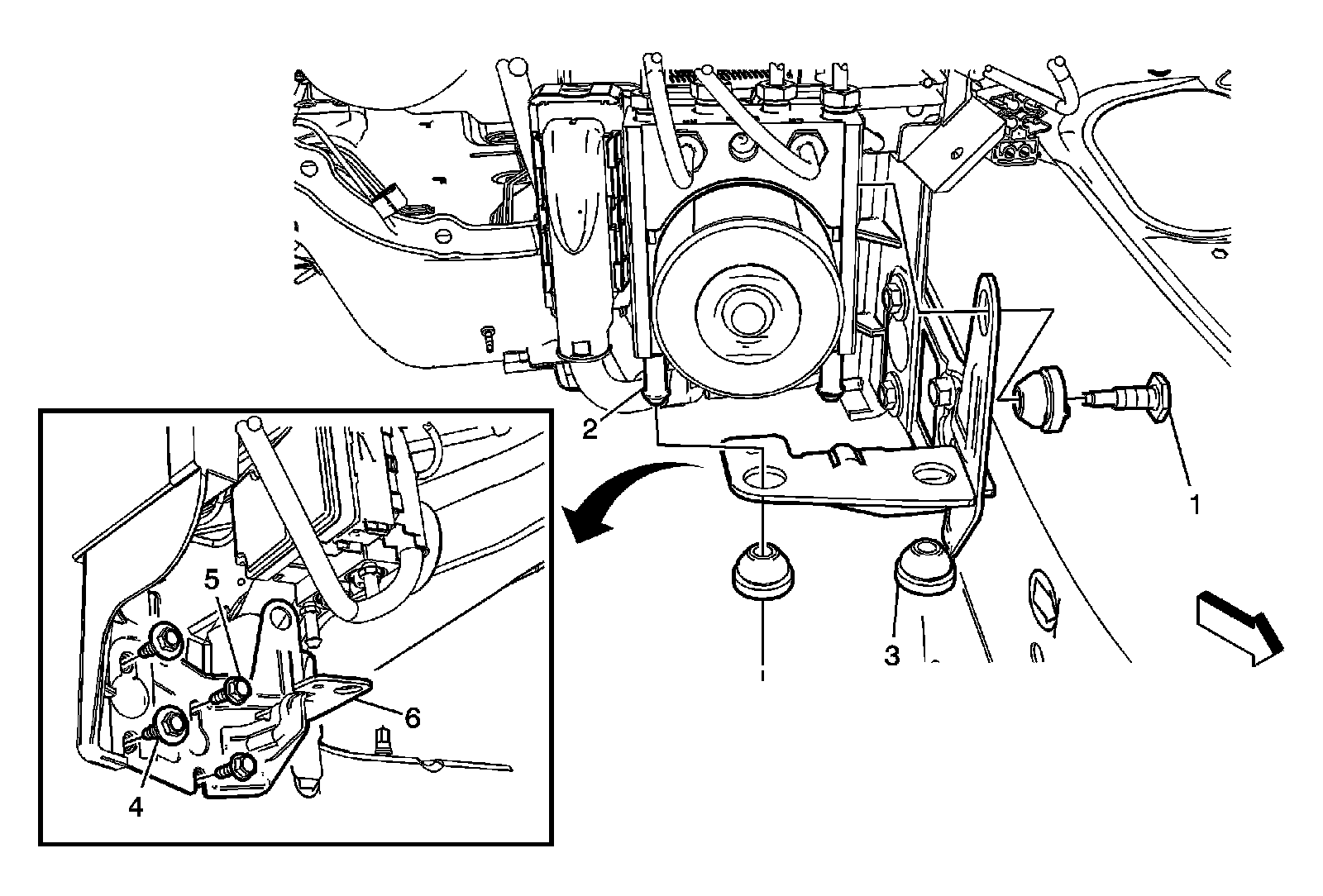

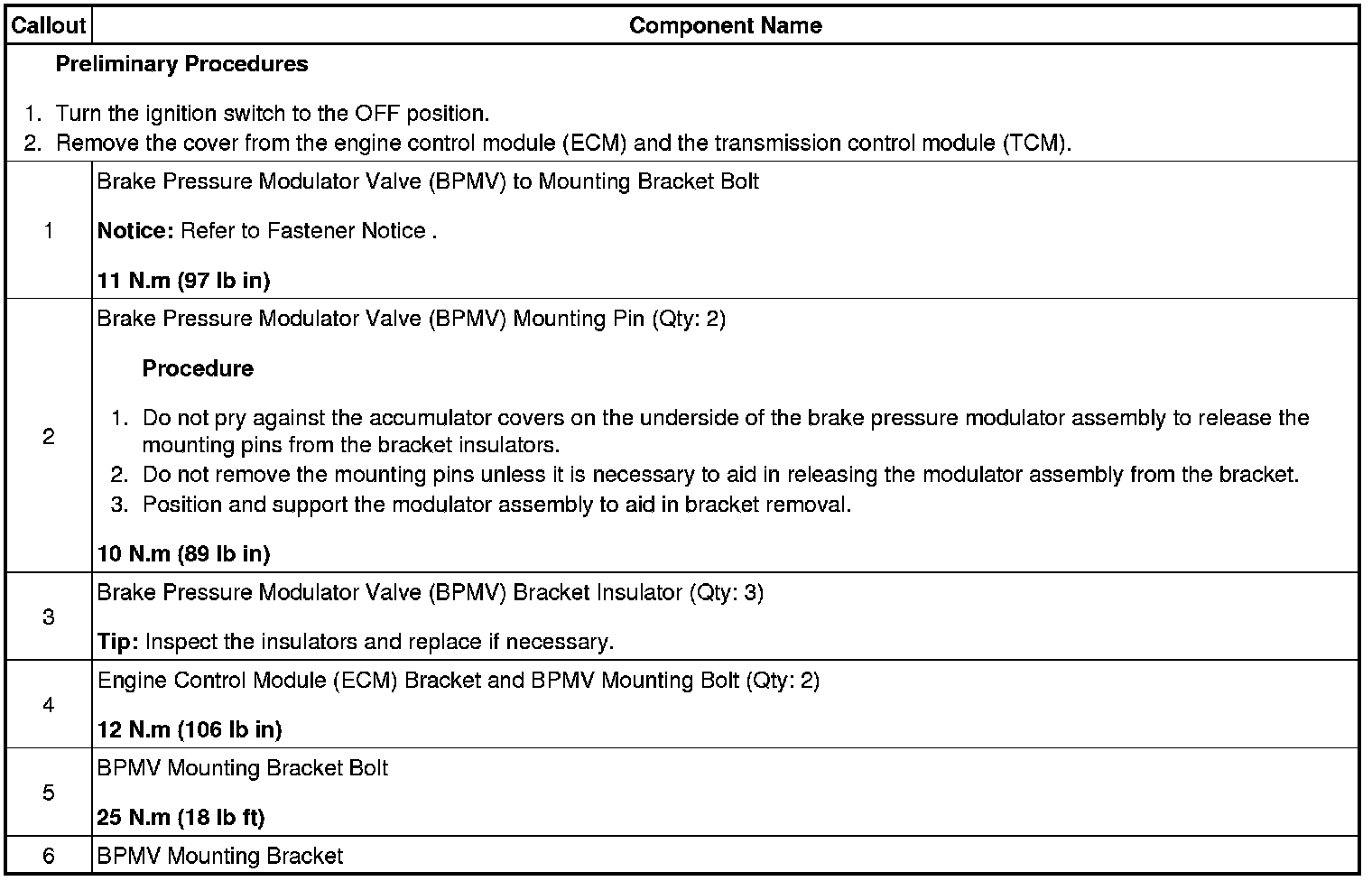

Brake Pressure Modulator Valve Bracket Replacement (Without JL4)



Brake Pressure Modulator Valve Bracket Replacement (Without JL4)
