Diagnostic Trouble Code (DTC) List - Vehicle

Diagnostic Trouble Code (DTC) List - Vehicle

This master DTC list includes all applicable DTCs in alphanumeric order with descriptors.

The GMLAN modules on this vehicle also support DTC Symptom descriptors.

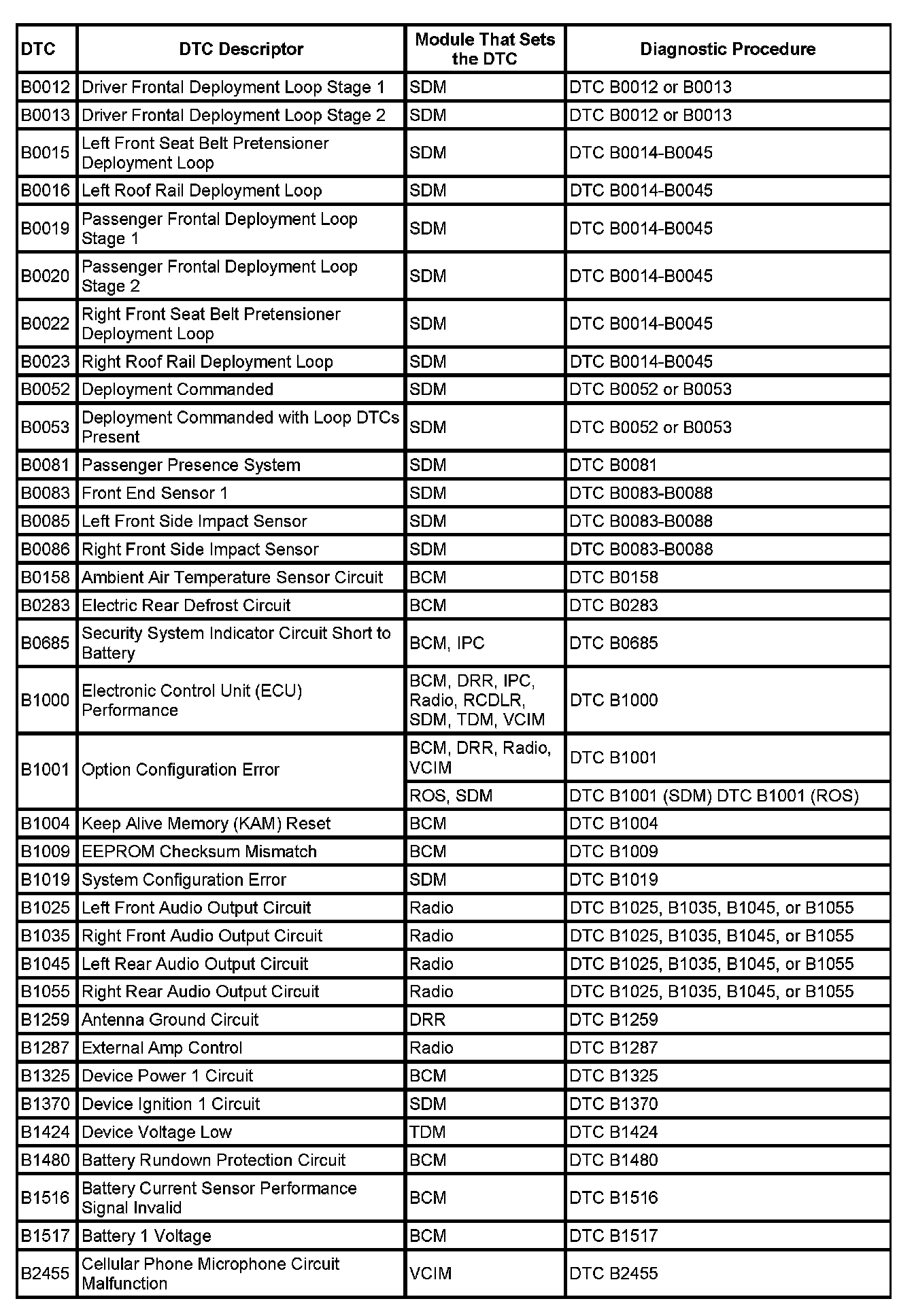

B0012-B2455:

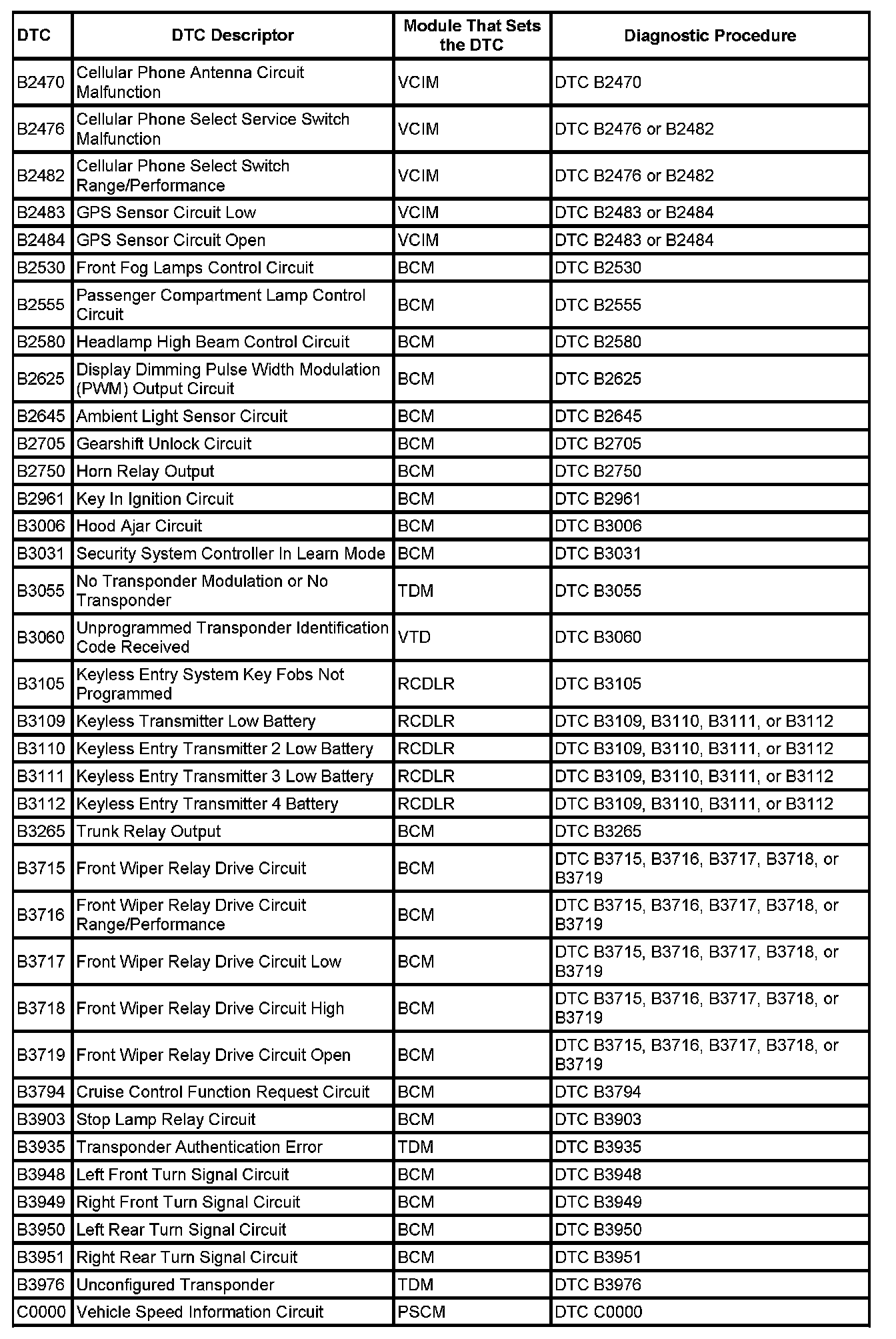

B2470-B3976 / C0000:

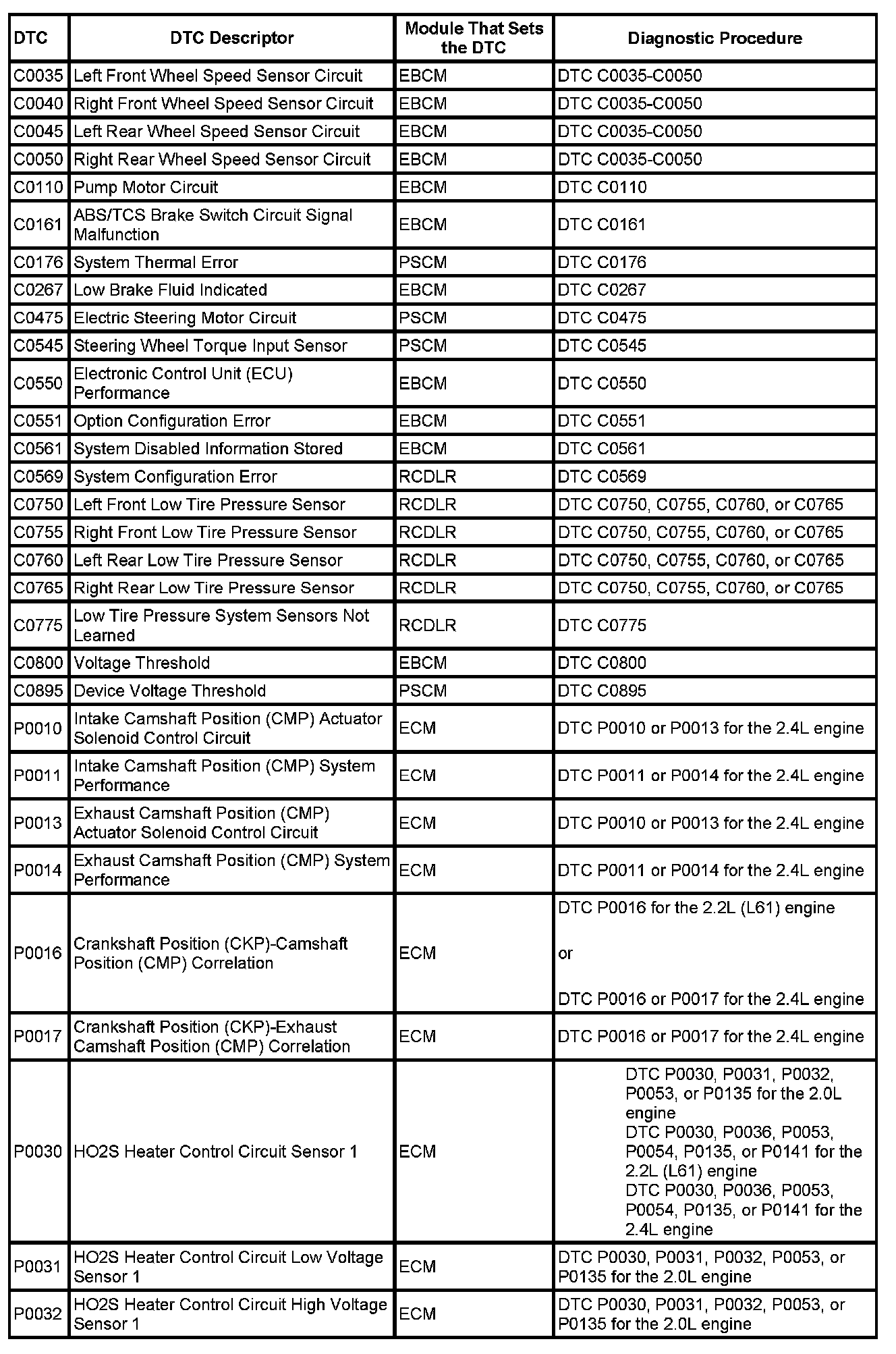

C0035-C0895 / P0010-P0032:

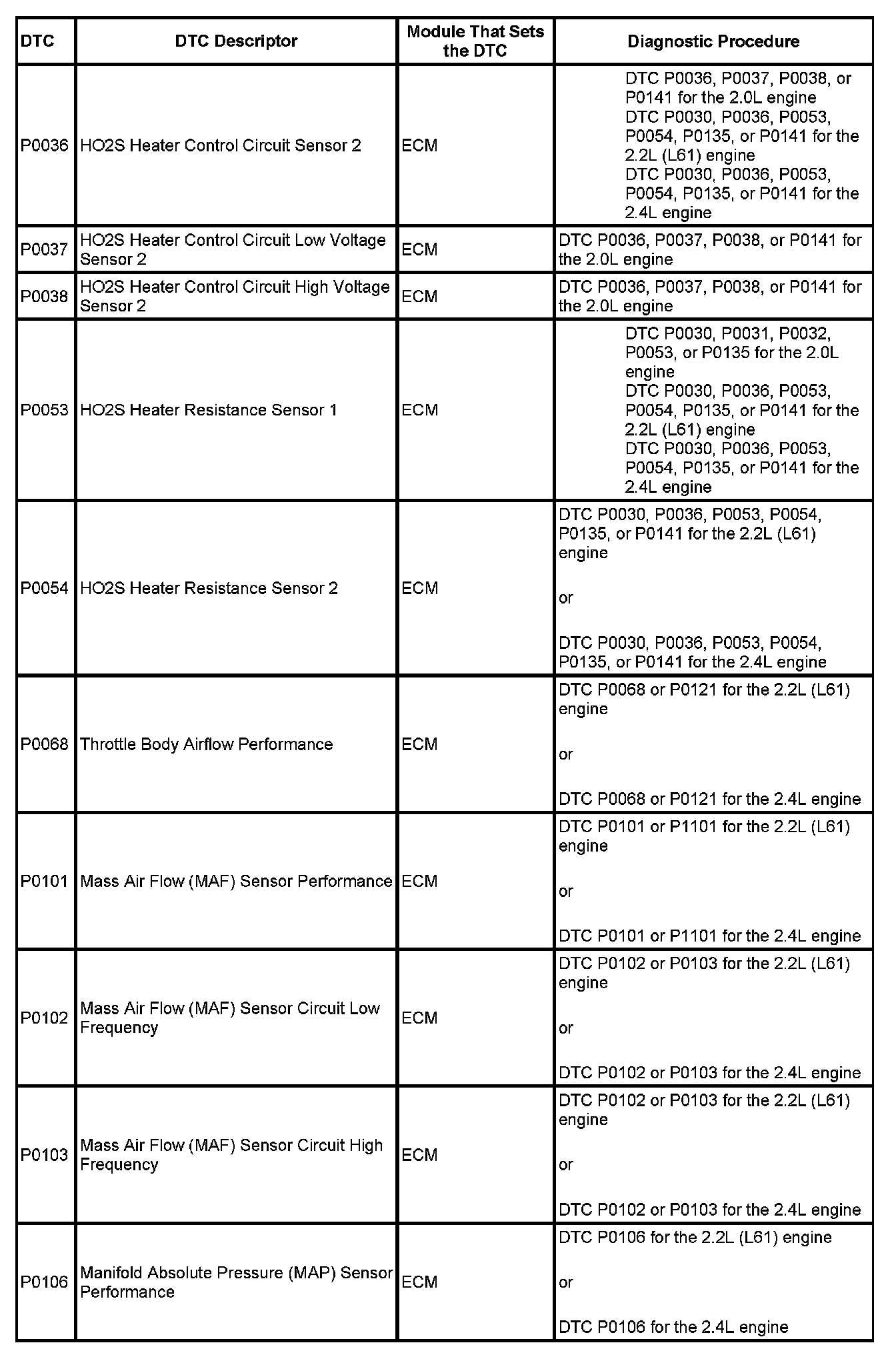

P0036-P0106:

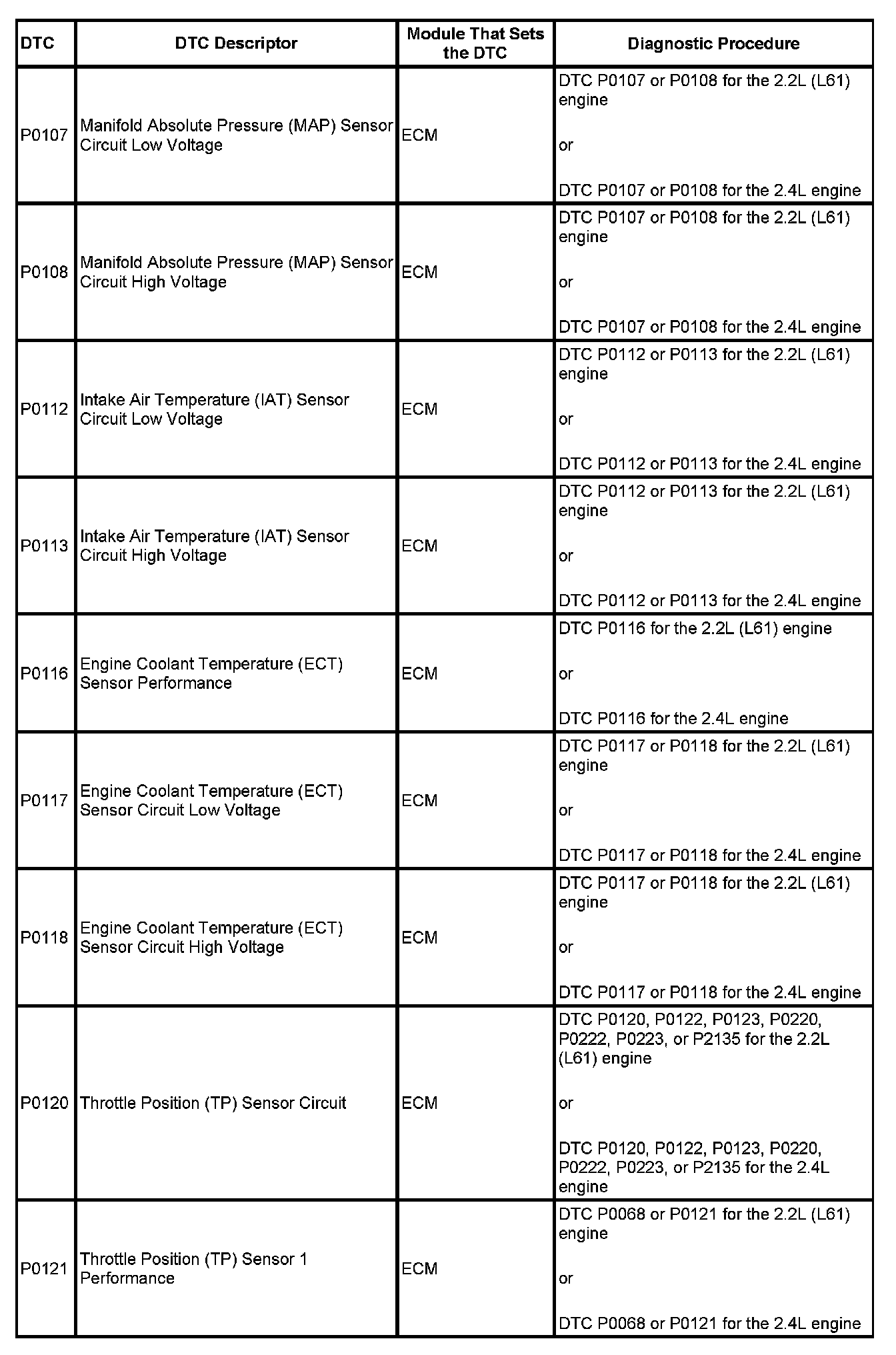

P0107-P0121:

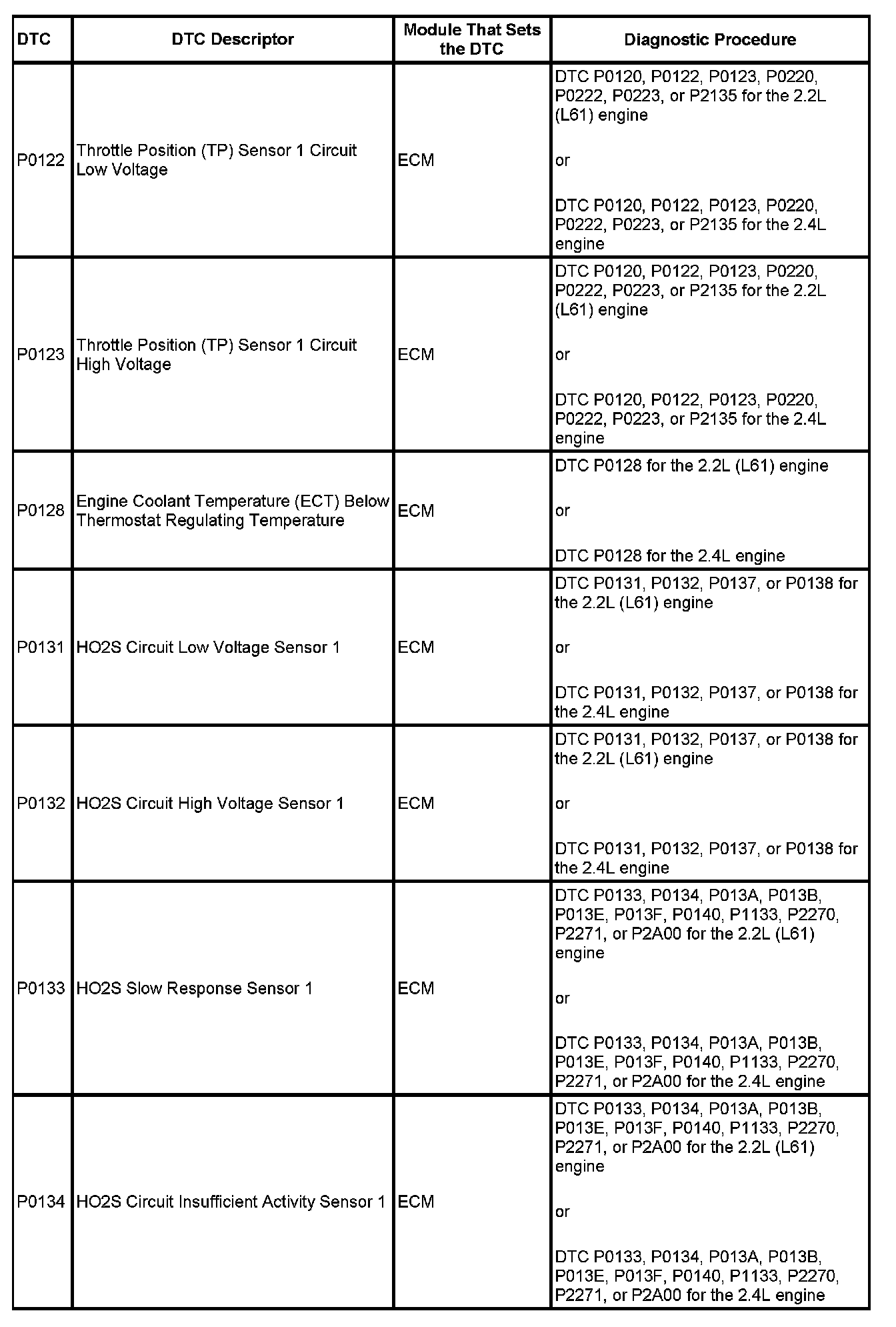

P0122-P0134:

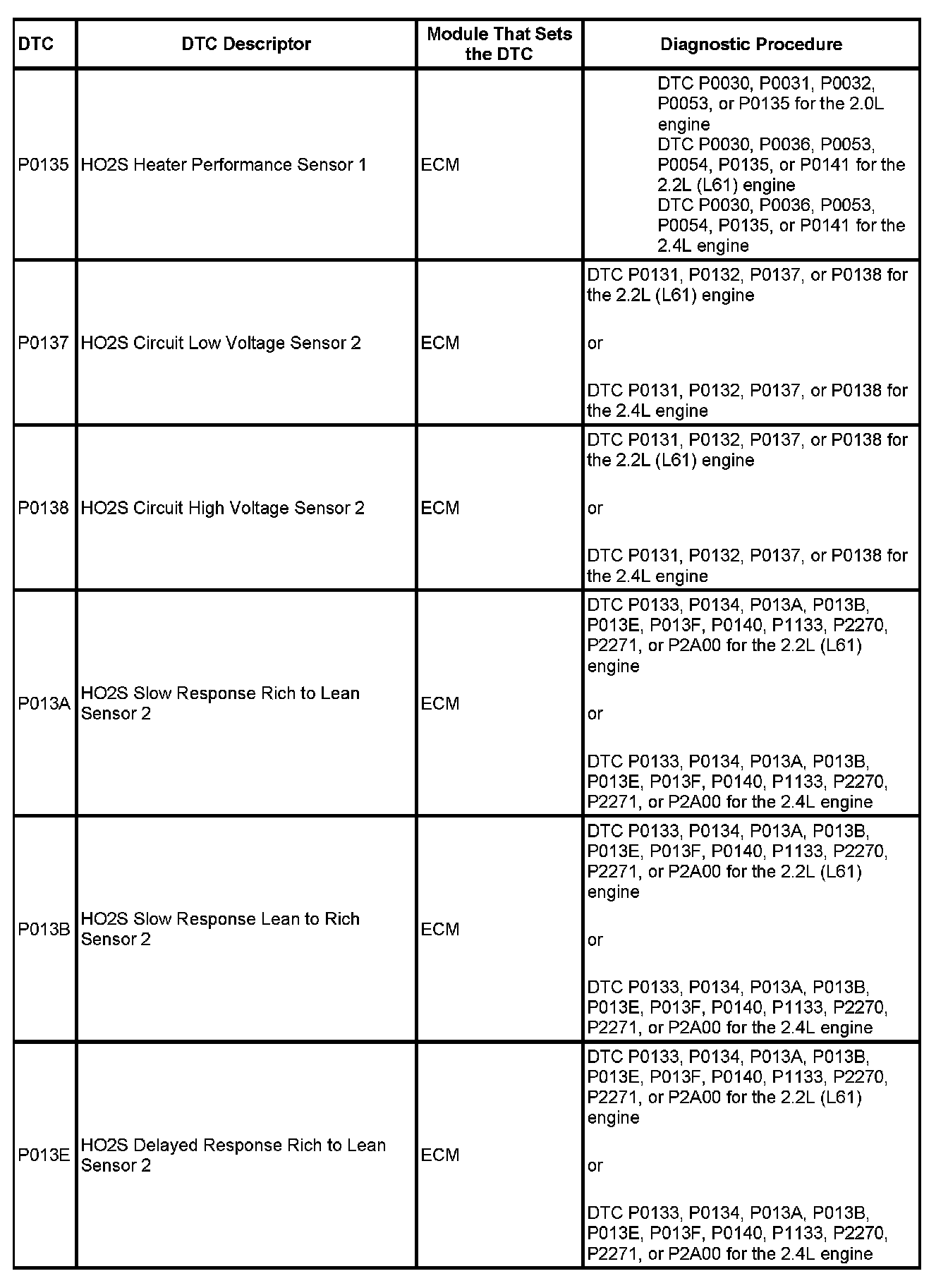

P0135-P013E:

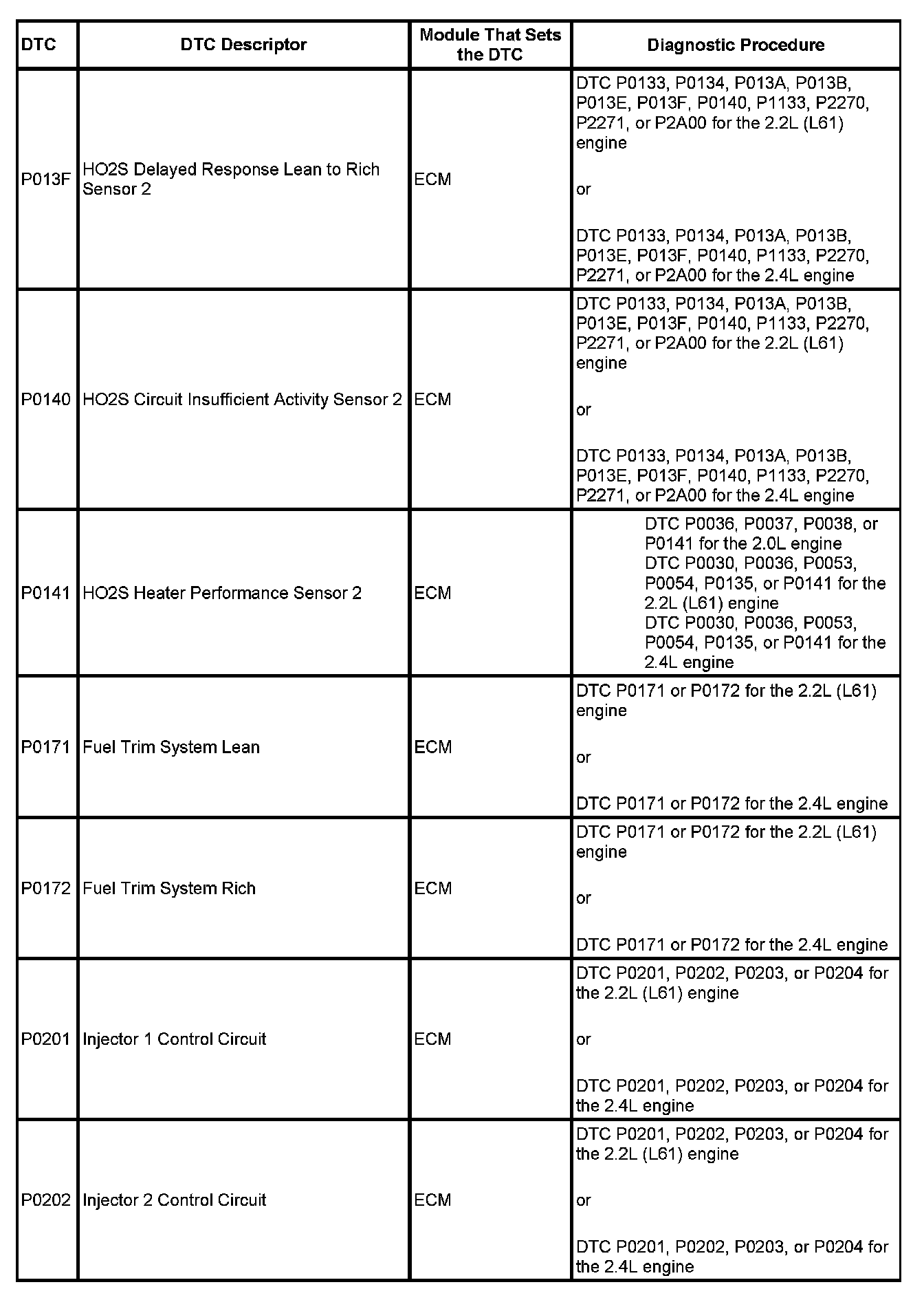

P013F-P0202:

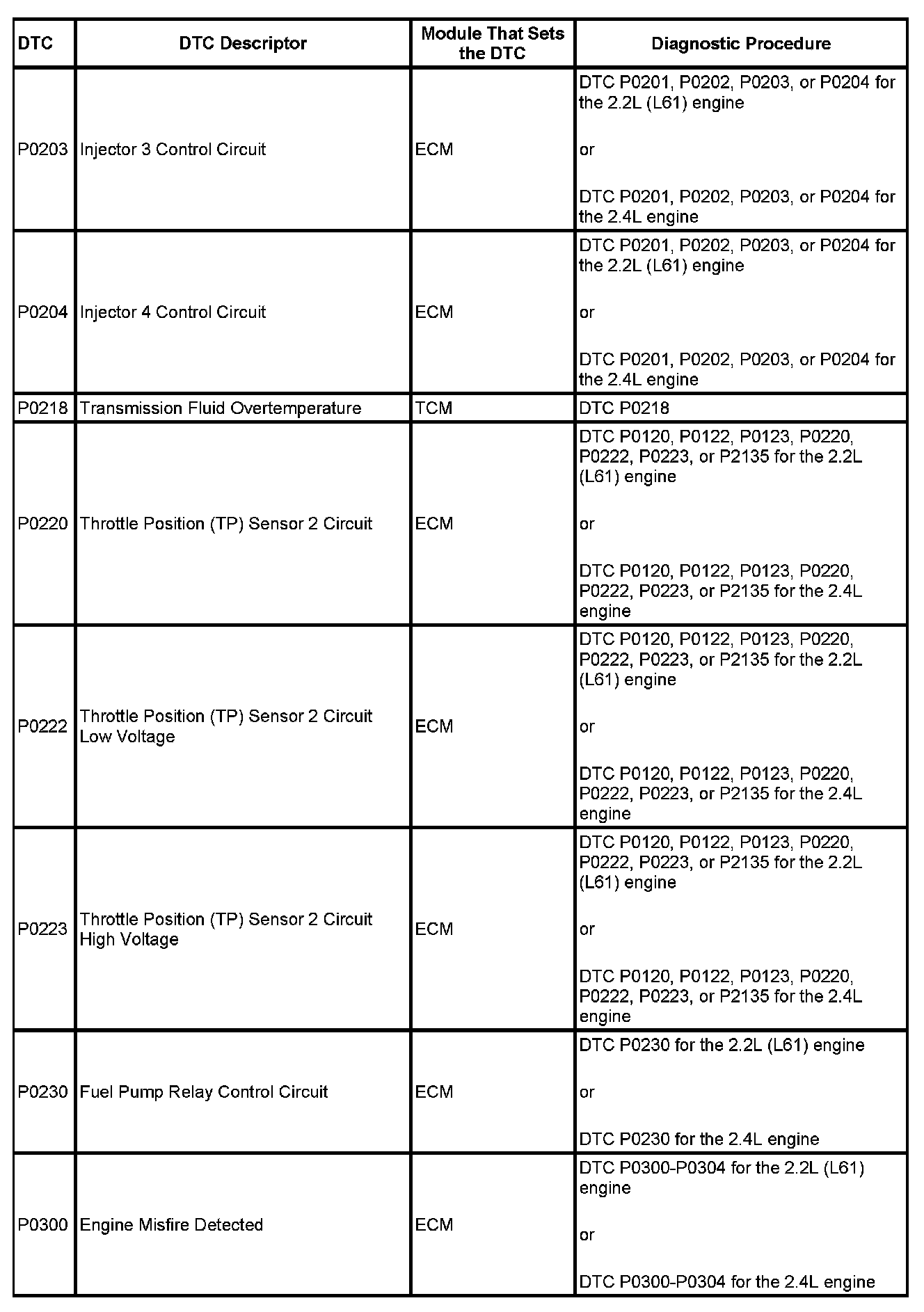

P0203-P0300:

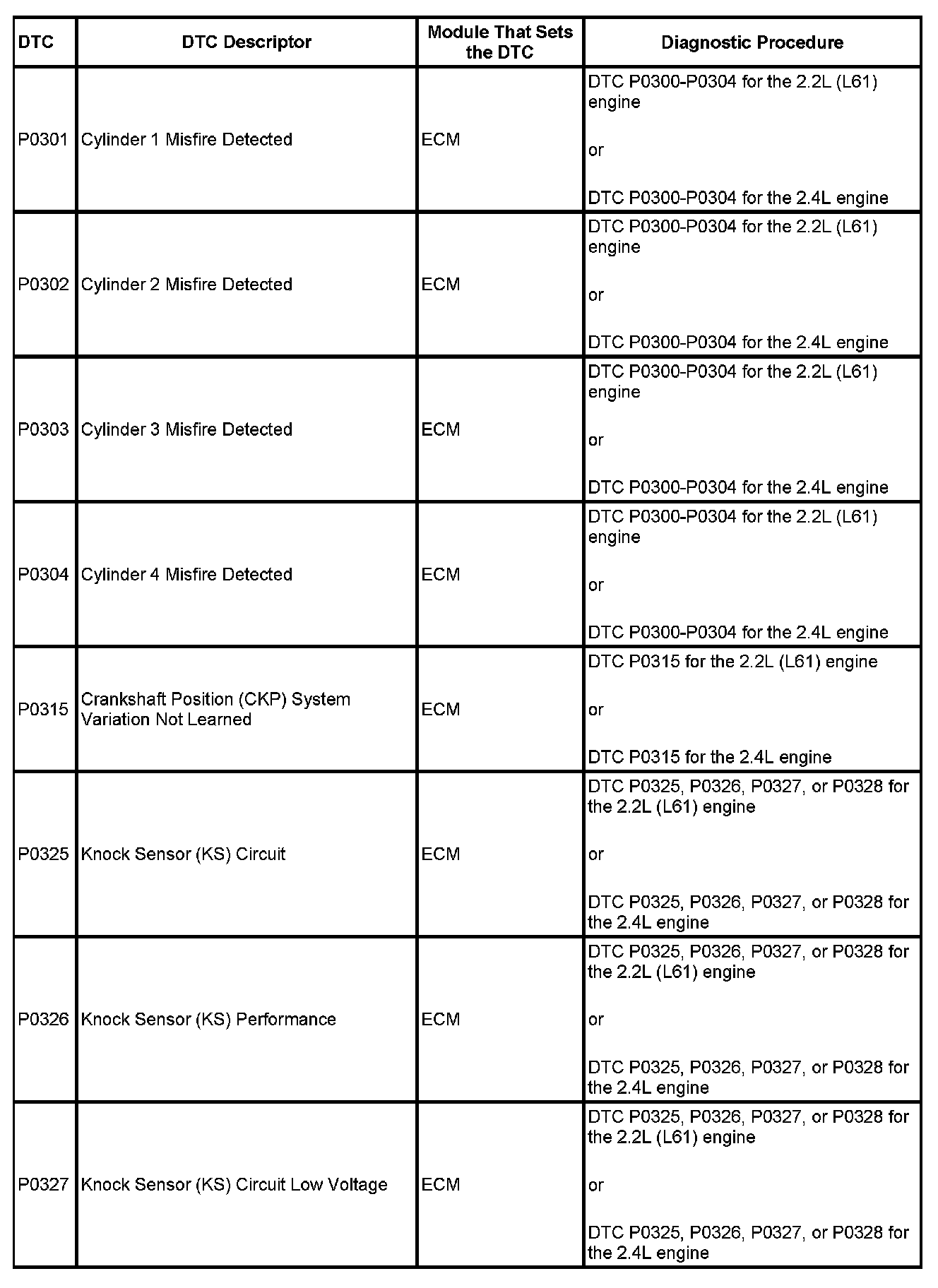

P0301-P0327:

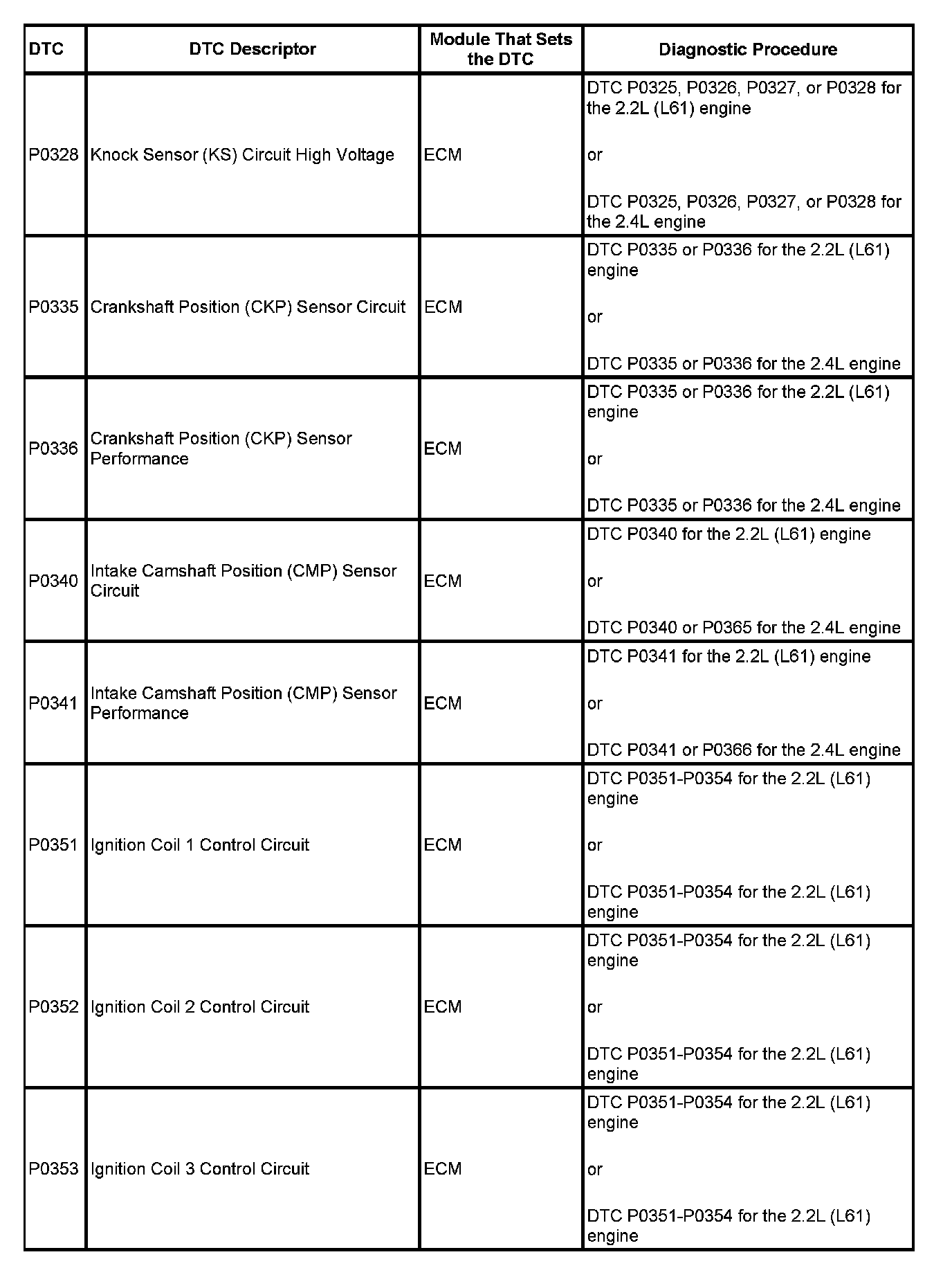

P0328-P0353:

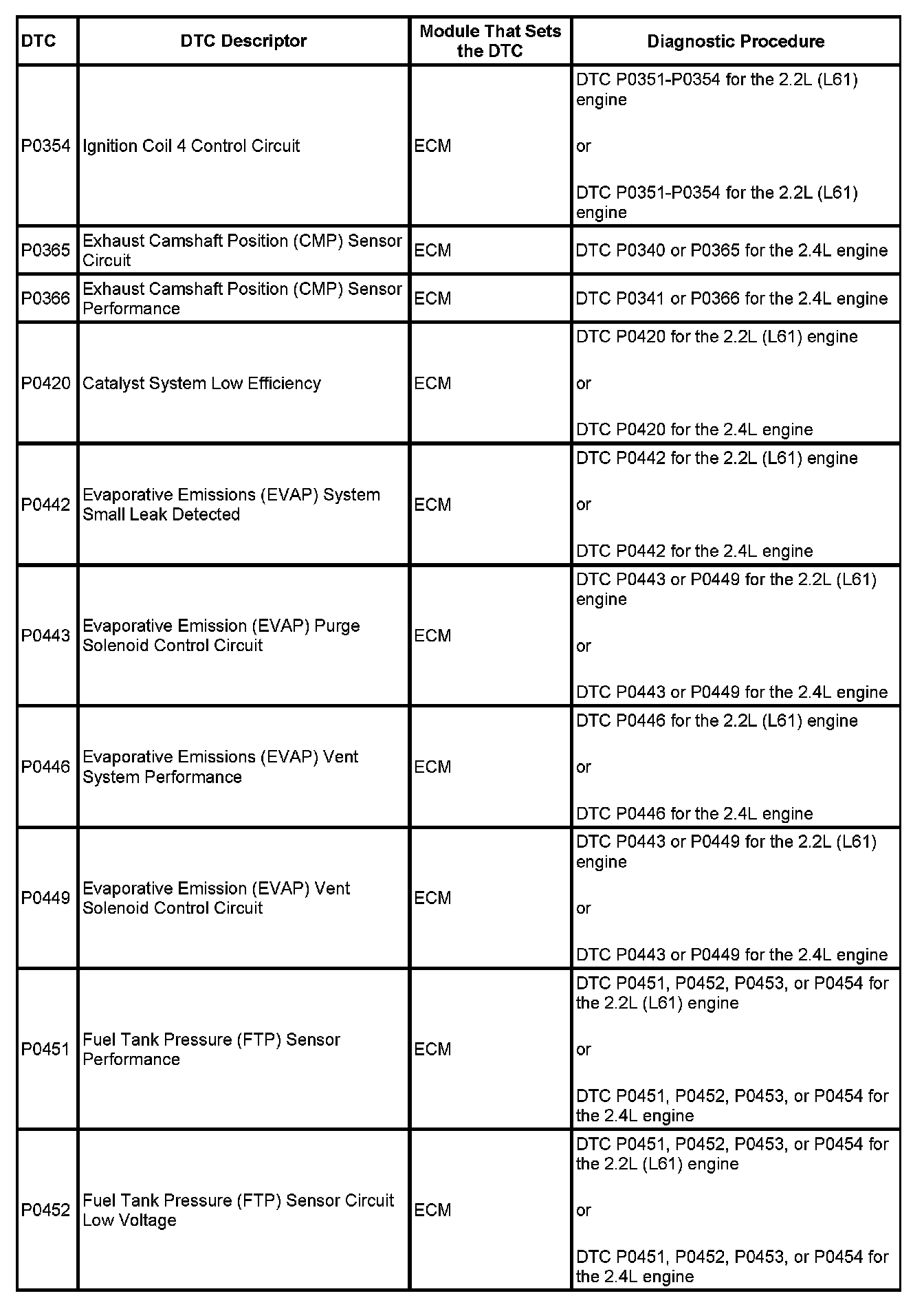

P0354-P0452:

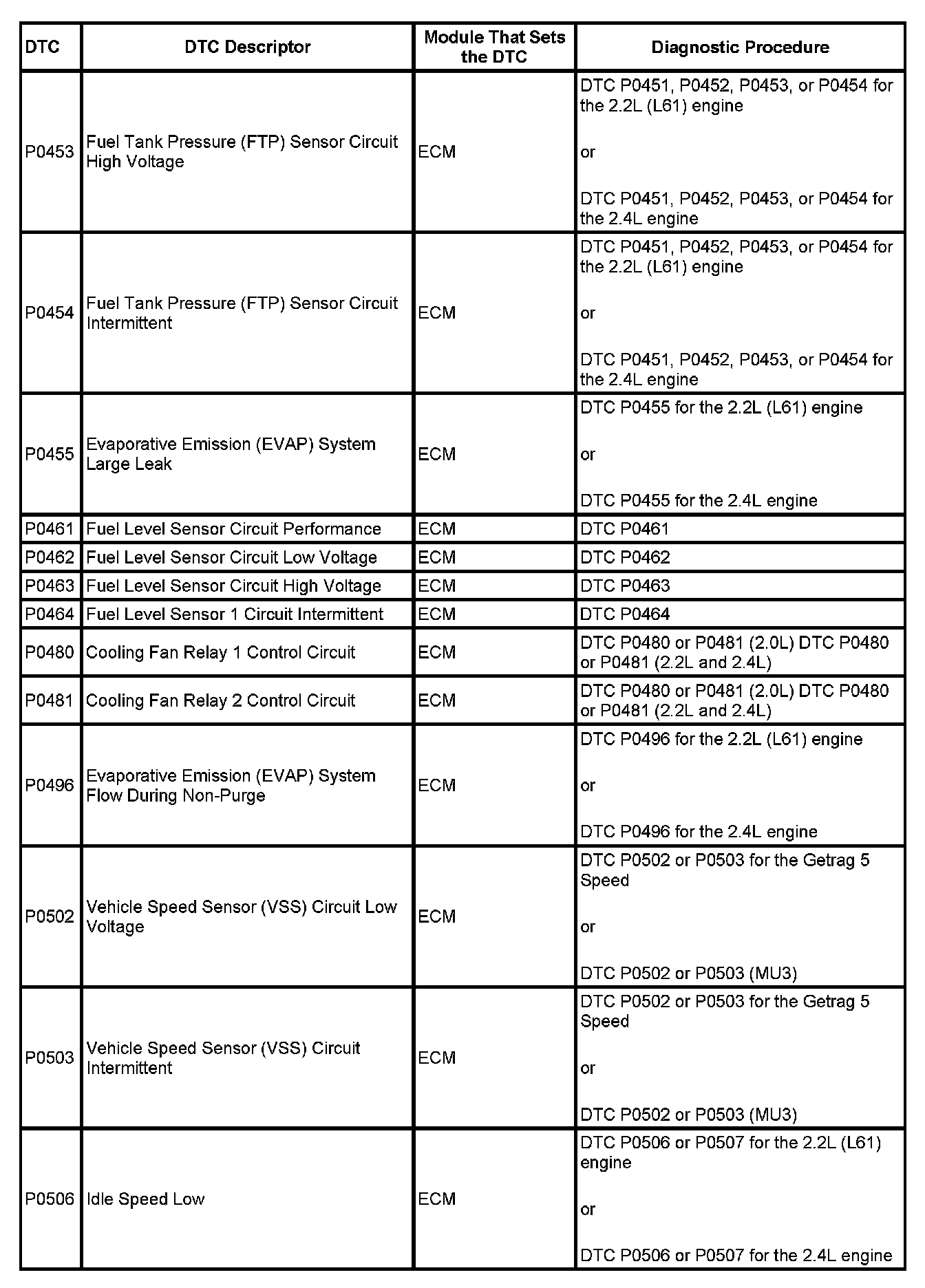

P0453-P0506:

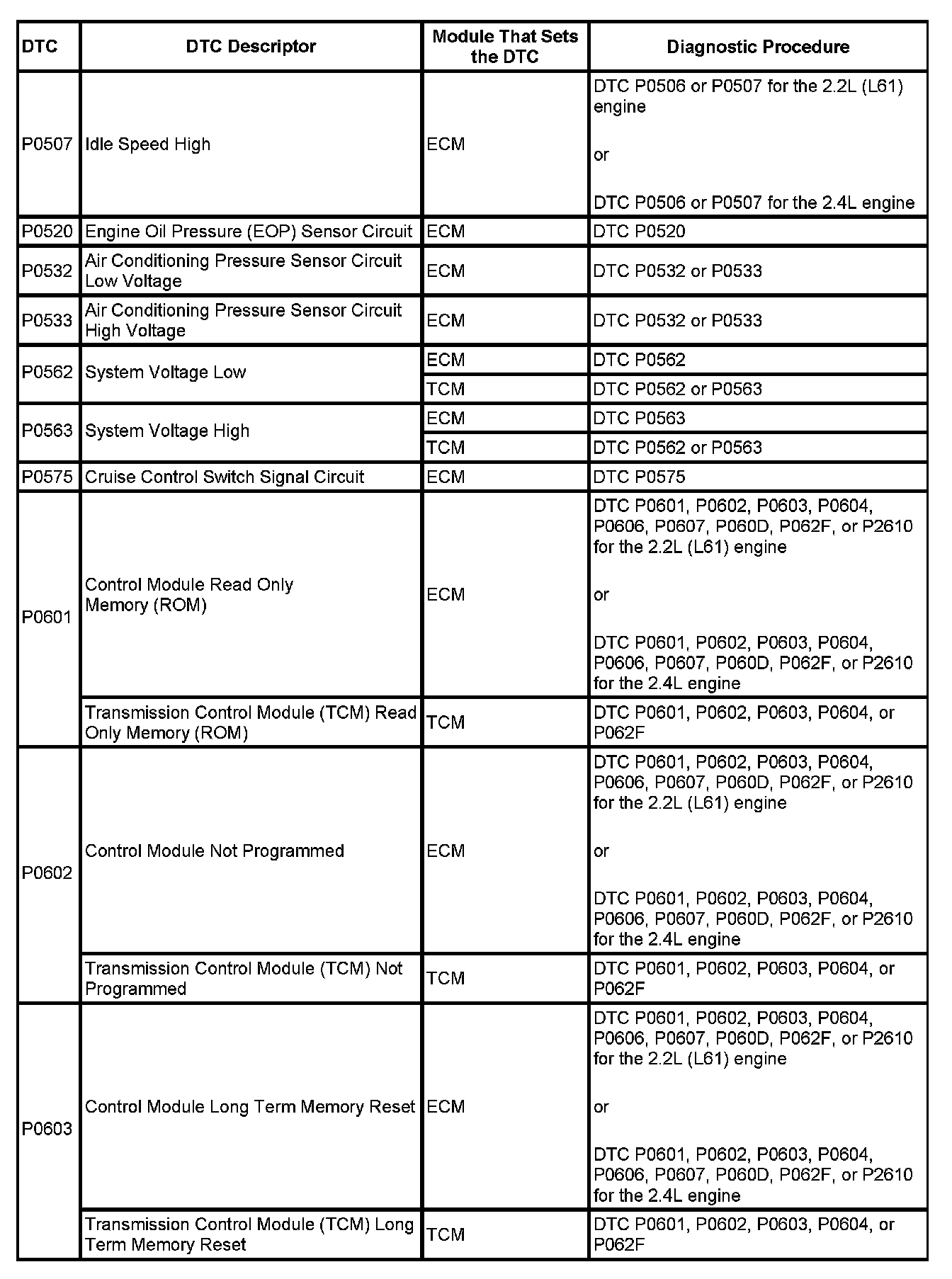

P0507-P0603:

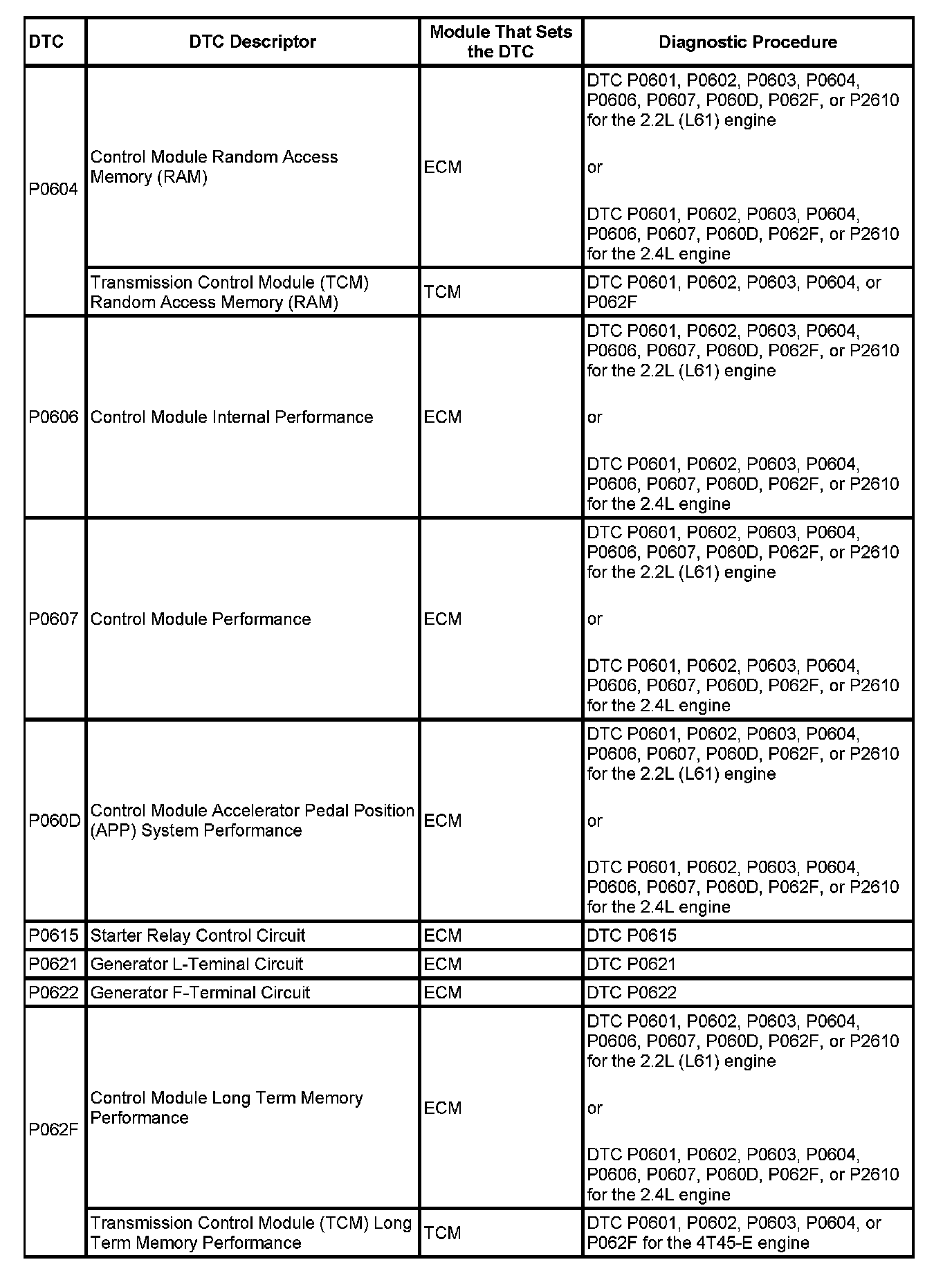

P0604-P062F:

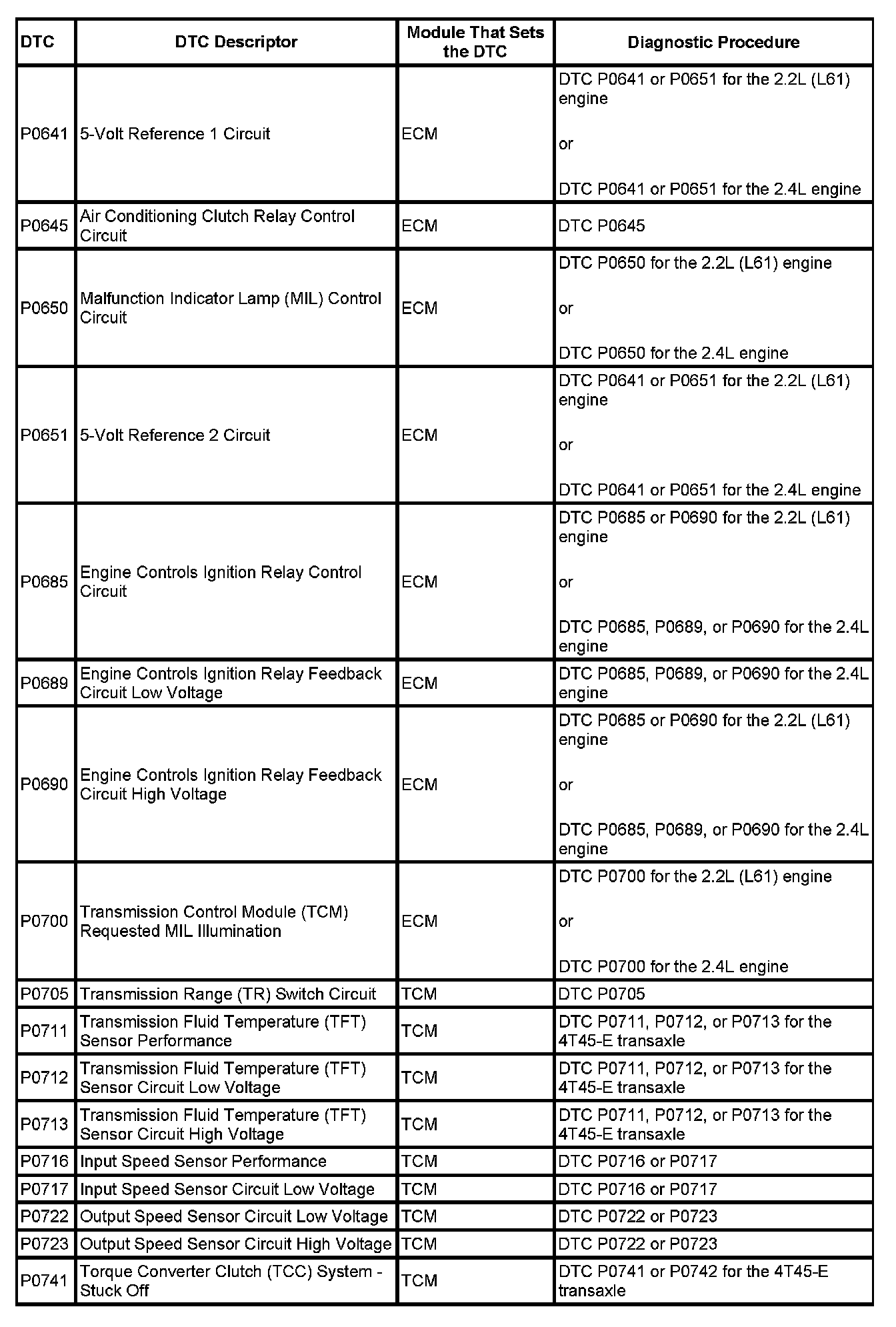

P0641-P0741:

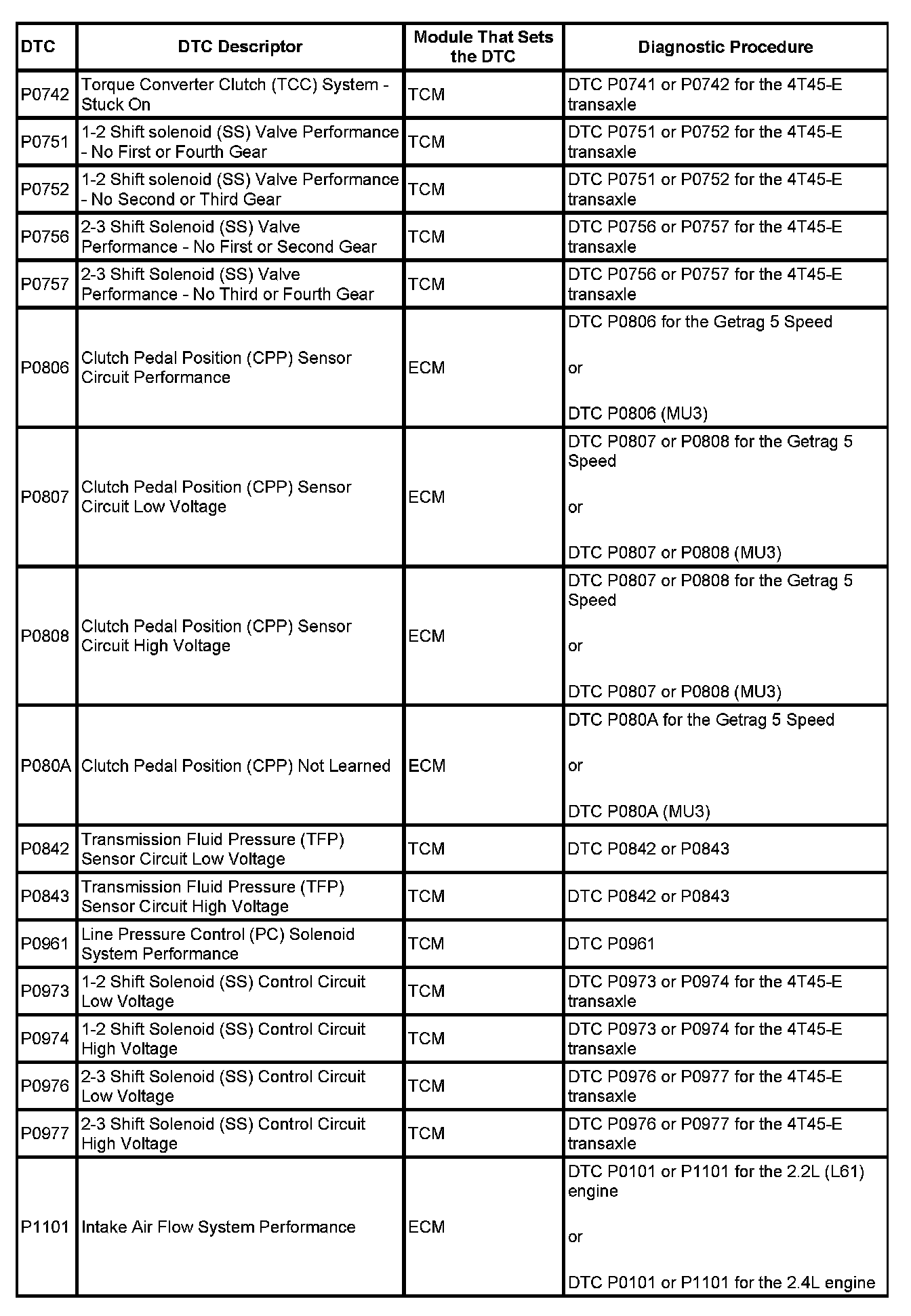

P0742-P1101:

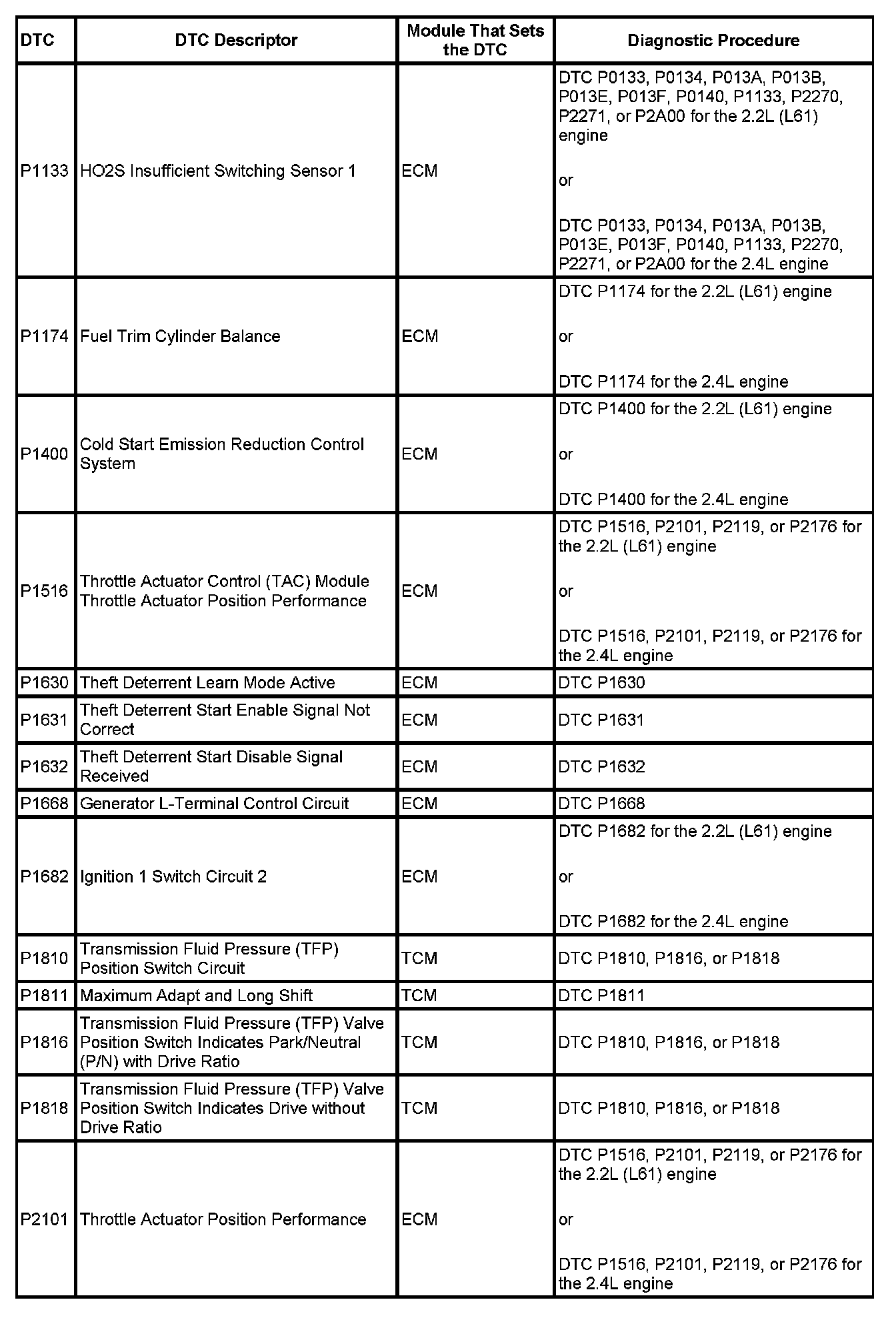

P1133-P2101:

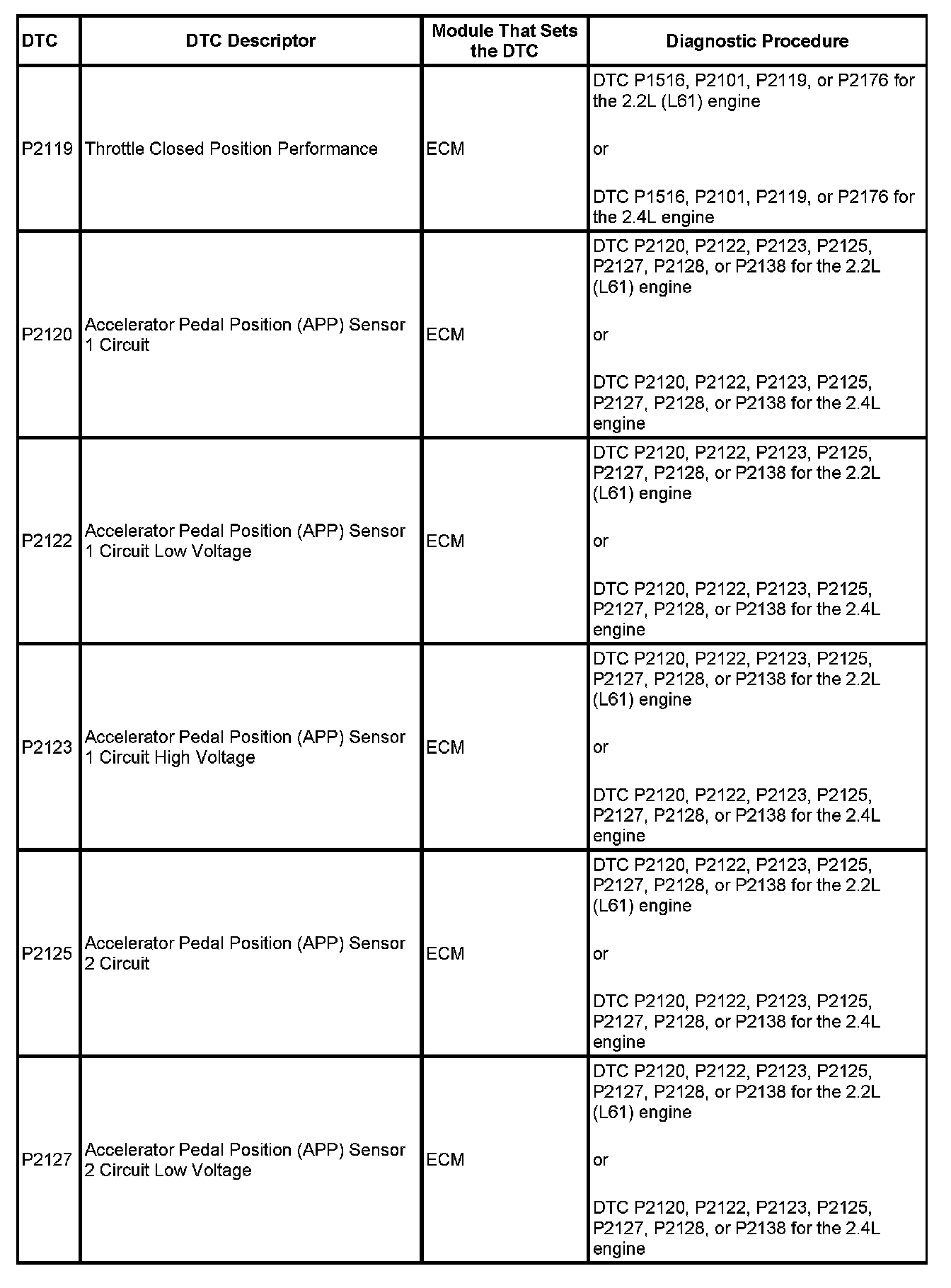

P2119-P2127:

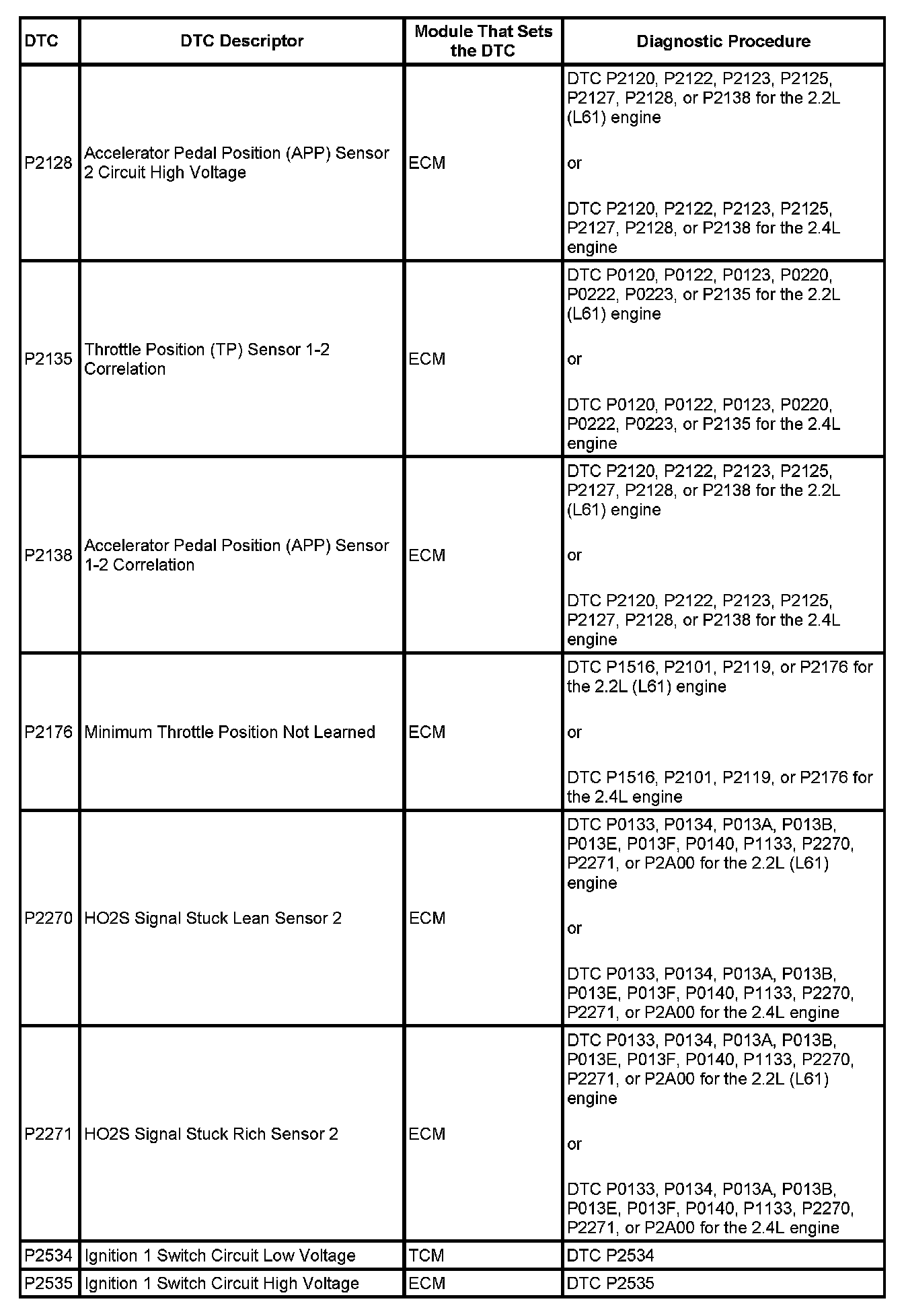

P2128-P2535:

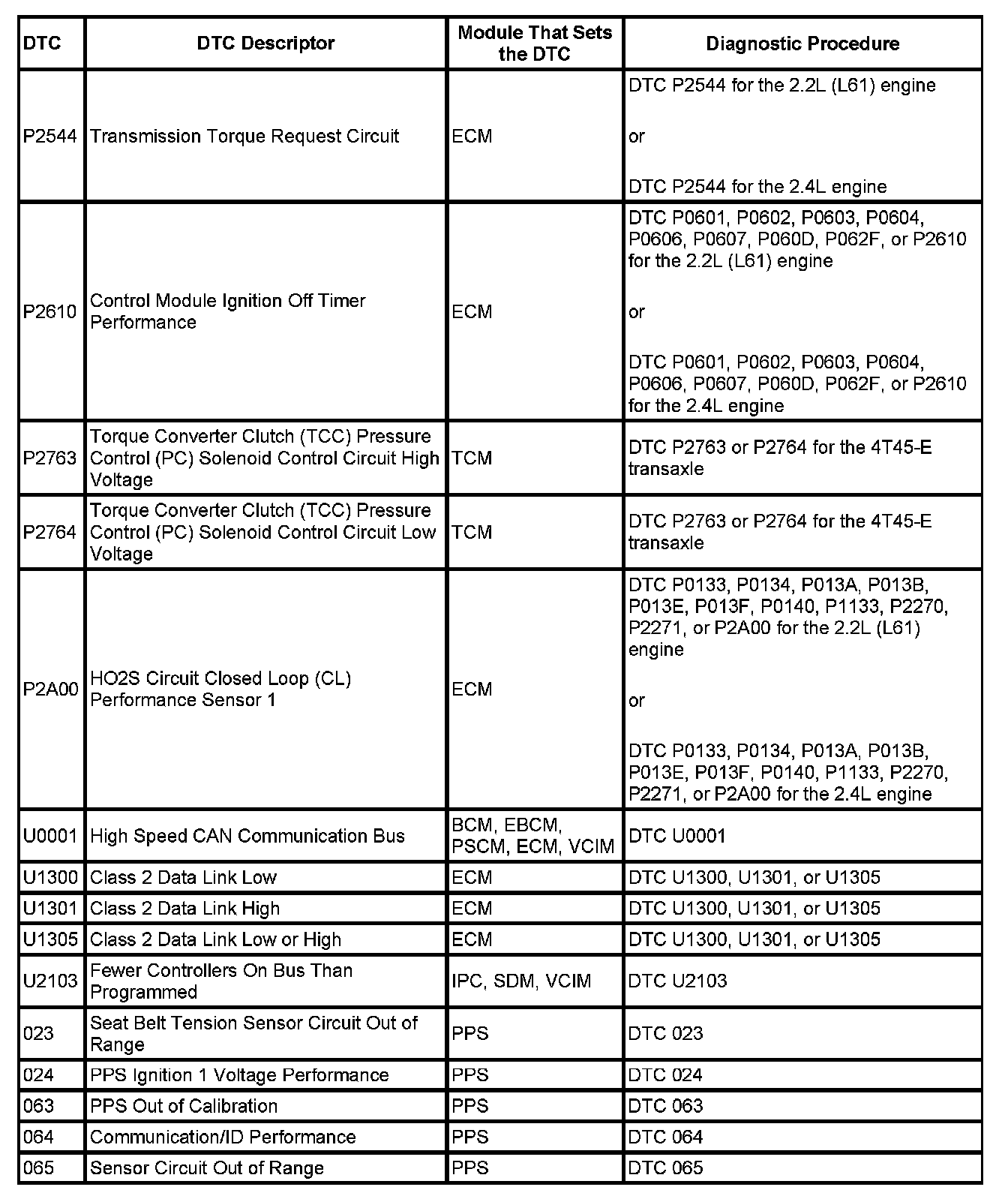

P2544-P2A00 / U0001-U2103 / 023-065:
