Supplemental Inflatable Restraints
DTC B1370
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle prior to using the diagnostic procedure. Initial Inspection and Diagnostic Overview
* Review Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B1370 06
- Device Ignition 1 (On and Start) Circuit Short to Battery

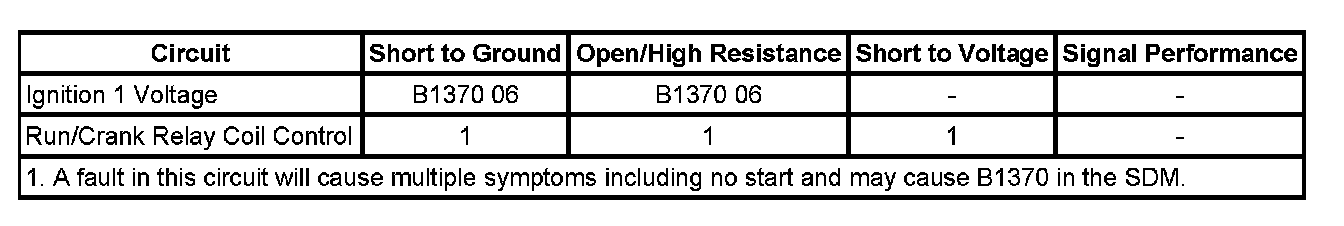

Diagnostic Fault Information
Circuit/System Description
The inflatable restraint sensing and diagnostic module (SDM) monitors the ignition signal from the ignition switch. When the vehicle ignition switch is placed in the RUN or CRANK position, the switch supplies voltage to the SDM ignition input terminal. If an open or short to ground in this SDM ignition circuit is detected, then DTC B1370 will set.
Conditions for Running the DTC
Ignition voltage is between 9-16 volts.
Conditions for Setting the DTC
The SDM detects a short to ground or an open in the ignition voltage circuit for greater than 10 seconds when the ignition switch is in RUN or CRANK.
Action Taken When the DTC Sets
* The SDM commands the AIR BAG indicator ON.
* The SDM determines its power mode only from the serial data power mode messages and discards the ignition input for the remainder of the ignition cycle.
Conditions for Clearing the DTC
* The condition for setting the DTC no longer exists.
* A history DTC will clear once 100 malfunction-free ignition cycles have occurred.
Circuit/System Testing
Important: When removing connectors inspect for damage or corrosion. Damage or corrosion in the following requires repair or replacement of the affected.
* SDM
* SDM wiring harness
1. Ignition OFF, remove the underhood AIRBAG fuse.
2. Ignition ON, connect a test lamp between the B+ side to the fuse and ground. The test lamp should illuminate.
• If the test lamp does not illuminate, refer to DTC B1370-B1379, B1380-B1389, or B1440-B1443. B1370 B1380
3. Ignition OFF, install the underhood AIRBAG fuse.
4. Disconnect the harness connector at the SDM.
5. Ignition ON, verify a test lamp illuminates between ignition circuit terminal 33 and ground.
• If the test lamp does not illuminate, test the ignition circuit for short to ground or an open/high resistance.
6. If all circuits test normal, replace the SDM.
Repair Instructions
Perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests
* SIR/SRS Wiring Repairs
