B1325

DTC B1325

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Initial Inspection and Diagnostic Overview
* Review Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B1325 03
- Device Power 1 Circuit Voltage Below Threshold

DTC B1325 07
- Device Power 1 Circuit Voltage Above Threshold

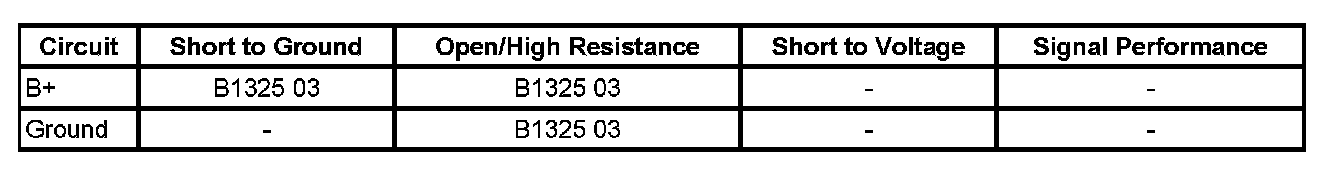

Diagnostic Fault Information






Circuit/System Description

The control modules on this vehicle monitor the battery voltage through the battery positive (B+) voltage circuits. This vehicle has multiple modules that will set the DTC. For more information on which modules, refer to Diagnostic Trouble Code (DTC) List - Vehicle. Diagnostic Trouble Code Descriptions

Conditions for Running the DTC

* The battery voltage supplied to the control modules is in the range of 7-26 volts.
* The engine is running.

Conditions for Setting the DTC

B1325 03

The control module detects a system voltage less than 9 volts for 5 seconds.

B1325 07

The control module detects a system voltage greater than 18 volts for 5 seconds.

Action Taken When the DTC Sets

* The control module immediately disables all outputs when an out of range voltage condition has been detected, with the exception of serial data, which is disabled after a 3 minute delay.
* The setting of other DTCs is inhibited.

Conditions for Clearing the DTC

The DTC clears when the malfunction is no longer present.

Diagnostic Aids

* A high or low voltage value in multiple modules indicates a concern in the charging system.
* Overcharging with a battery charger or jump starting can cause this DTC to set.

Circuit/System Verification

1. Engine running, accessories OFF, measure and record the battery voltage at the battery terminals. The voltage should be between 12.6 and 15.0 volts.

• If not within the specified range, refer to Charging System Test.

2. Observe the appropriate module scan tool Battery Voltage parameter. The reading should be between 12.6 and 15.0 volts.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector(s) at the appropriate module.
2. Ignition OFF, test for less than 5 ohms of resistance between the ground circuit terminals and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Verify that a test lamp illuminates between the B+ circuit terminals and ground.

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

4. Ignition ON, verify that a test lamp illuminates between the ignition circuit terminals and ground.

• If the test lamp does not illuminate, test the ignition circuit for a short to ground or an open/high resistance.

5. If all circuits tests normal, replace the appropriate module.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests
