Rear Window Wiper Motor Replacement (Wagon)

Rear Window Wiper Motor Replacement (Wagon)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the rear wiper arm. Refer to Rear Window Wiper Arm Replacement (Five Door) Rear Window Wiper Arm Replacement (Five Door)Rear Window Wiper Arm Replacement (Wagon) Rear Window Wiper Arm Replacement (Wagon).
3. Remove the liftgate trim cover.

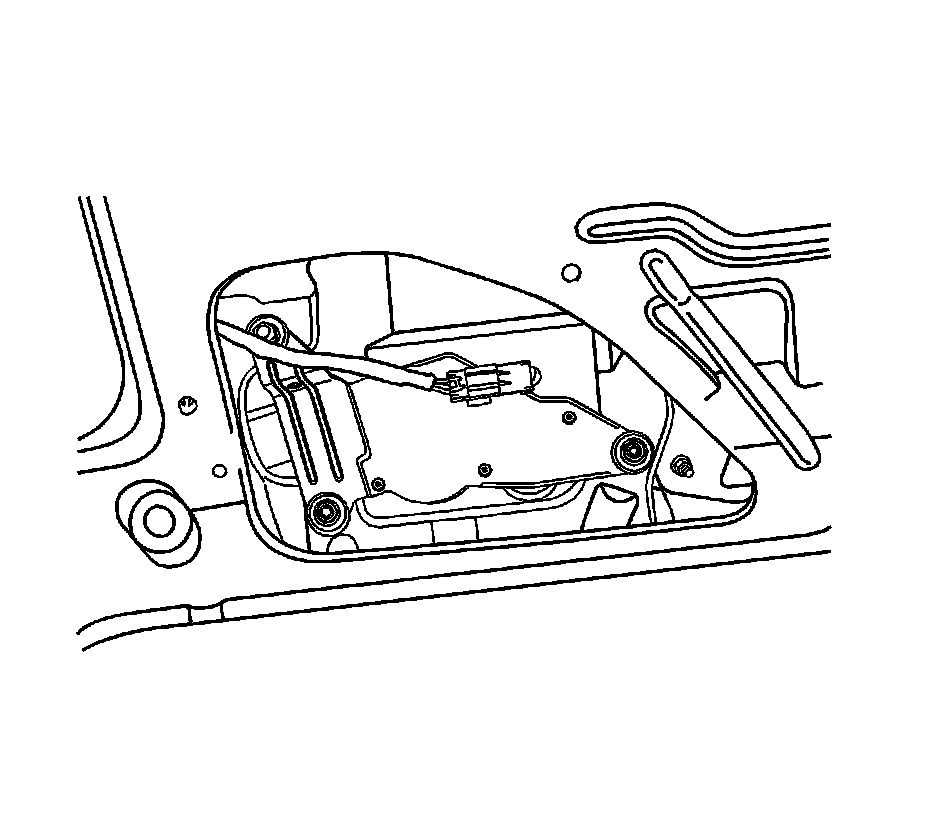

4. Remove the bolts and the rear wiper motor.
5. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the wiper motor with the bolts.

Tighten the bolts to 9 Nm (80 lb in).

3. Install the liftgate trim cover.
4. Install the rear wiper arm. Refer to Rear Window Wiper Arm Replacement (Five Door) Rear Window Wiper Arm Replacement (Five Door)Rear Window Wiper Arm Replacement (Wagon) Rear Window Wiper Arm Replacement (Wagon).
5. Connect the negative battery cable.
