Wiper Arm Blade Replacement

Wiper Arm Blade Replacement

Removal Procedure

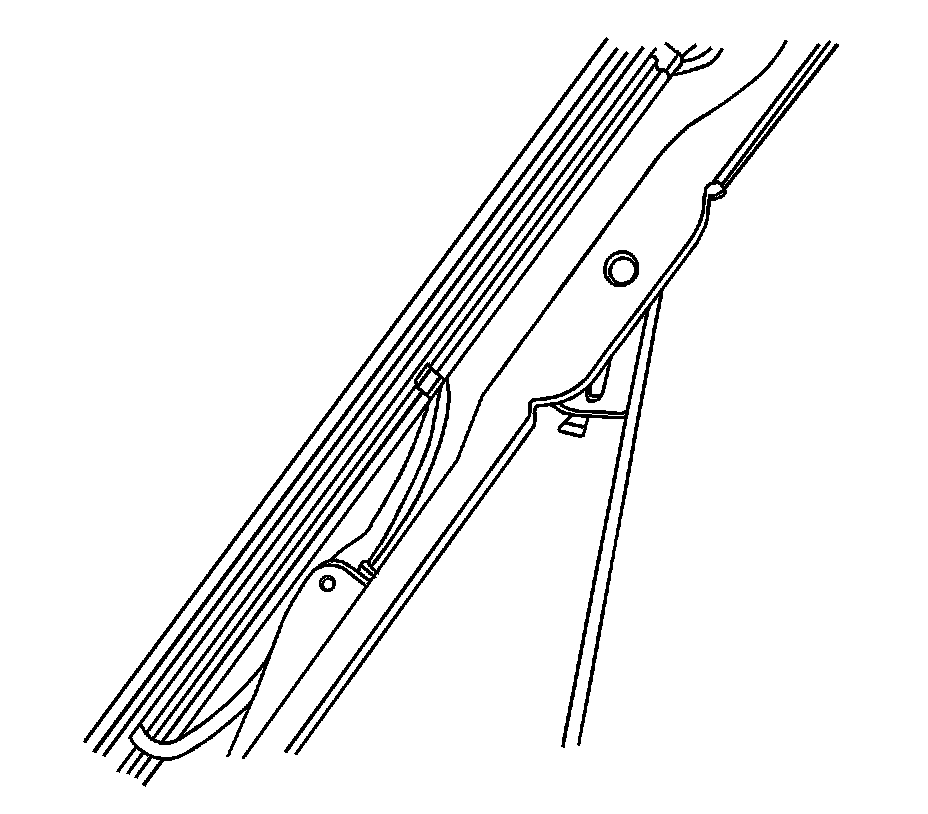

1. Rotate the wiper blade on the arm.
2. While pressing the retainer clip, slide the wiper blade down the wiper arm and remove the blade.

Installation Procedure





Install the wiper blade by sliding it onto the arm until the retainer clip engages.
