Rear Window Wiper Arm Replacement (Five Door)

Rear Window Wiper Arm Replacement (Five Door)

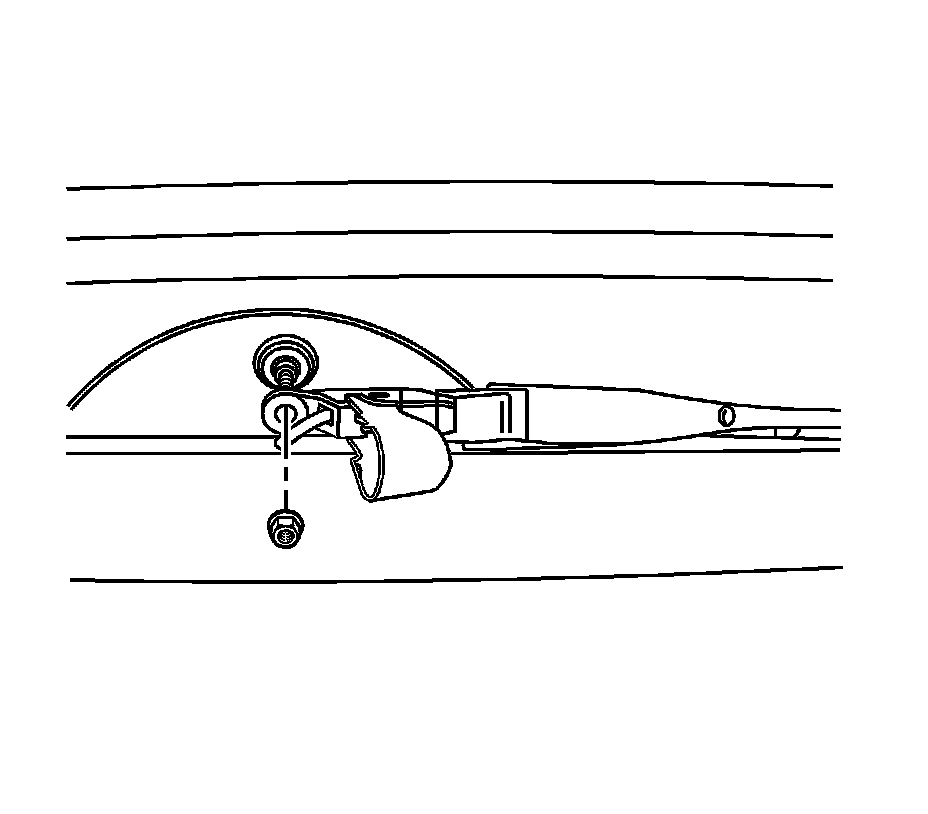

Removal Procedure




1. Open the wiper arm access cap.
2. Remove the nut from the wiper arm.
3. Pull the wiper arm off.

Installation Procedure




1. Install the wiper arm.

Notice: Refer to Fastener Notice Fastener Notice.

2. Secure the wiper arm with the nut.

Tighten the wiper arm nut to 11 Nm (97 lb in).

3. Close the wiper arm access cap.
