Rear Window Washer Nozzle Replacement (Wagon)

Rear Window Washer Nozzle Replacement (Wagon)

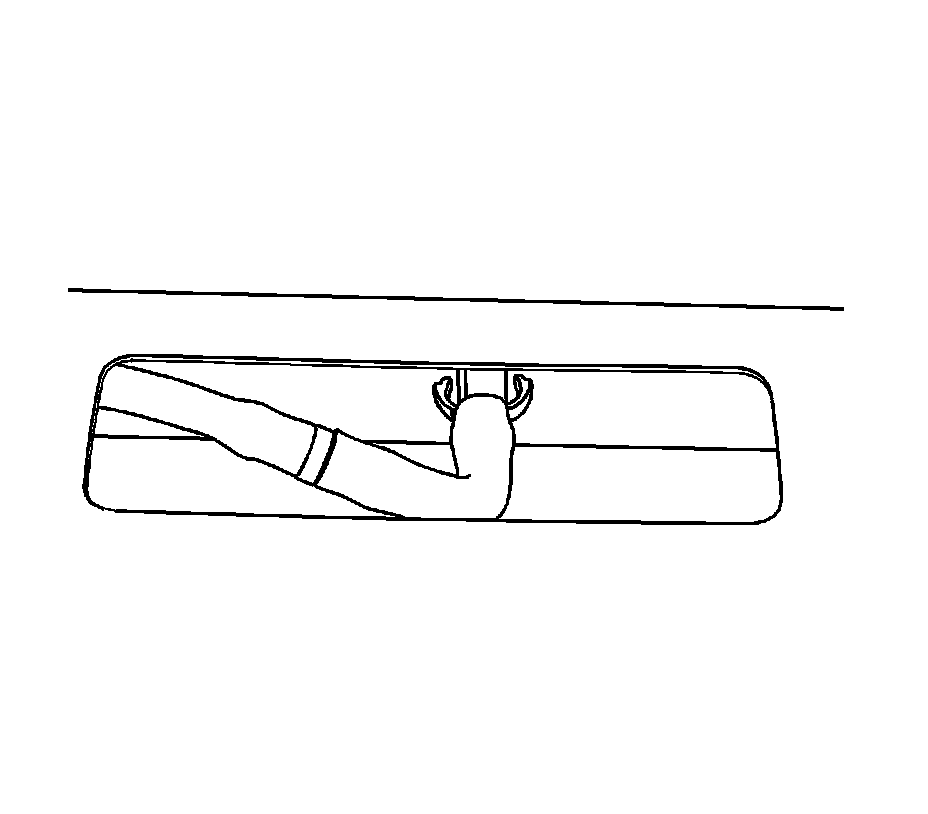

Removal Procedure




1. Remove the liftgate lower door garnish molding. Refer to Liftgate Lower Garnish Molding Replacement (Sedan) .
2. Disconnect the washer hose from the nozzle.
3. Remove the nozzle.

Installation Procedure




1. Install the nozzle.
2. Connect the washer hose to the nozzle.
3. Install the liftgate lower garnish molding. Refer to Liftgate Lower Garnish Molding Replacement (Sedan) .
