Wiper and Washer Systems: Locations

Wiper/Washer Component Views

Right Side of Steering Column




1 - Wiper Intermittent Switch (Optional)
2 - Wiper Intermittent Switch and Rear Fog Lamp Switch (w/ Rear Fog Lamps)
3 - Wiper Switch

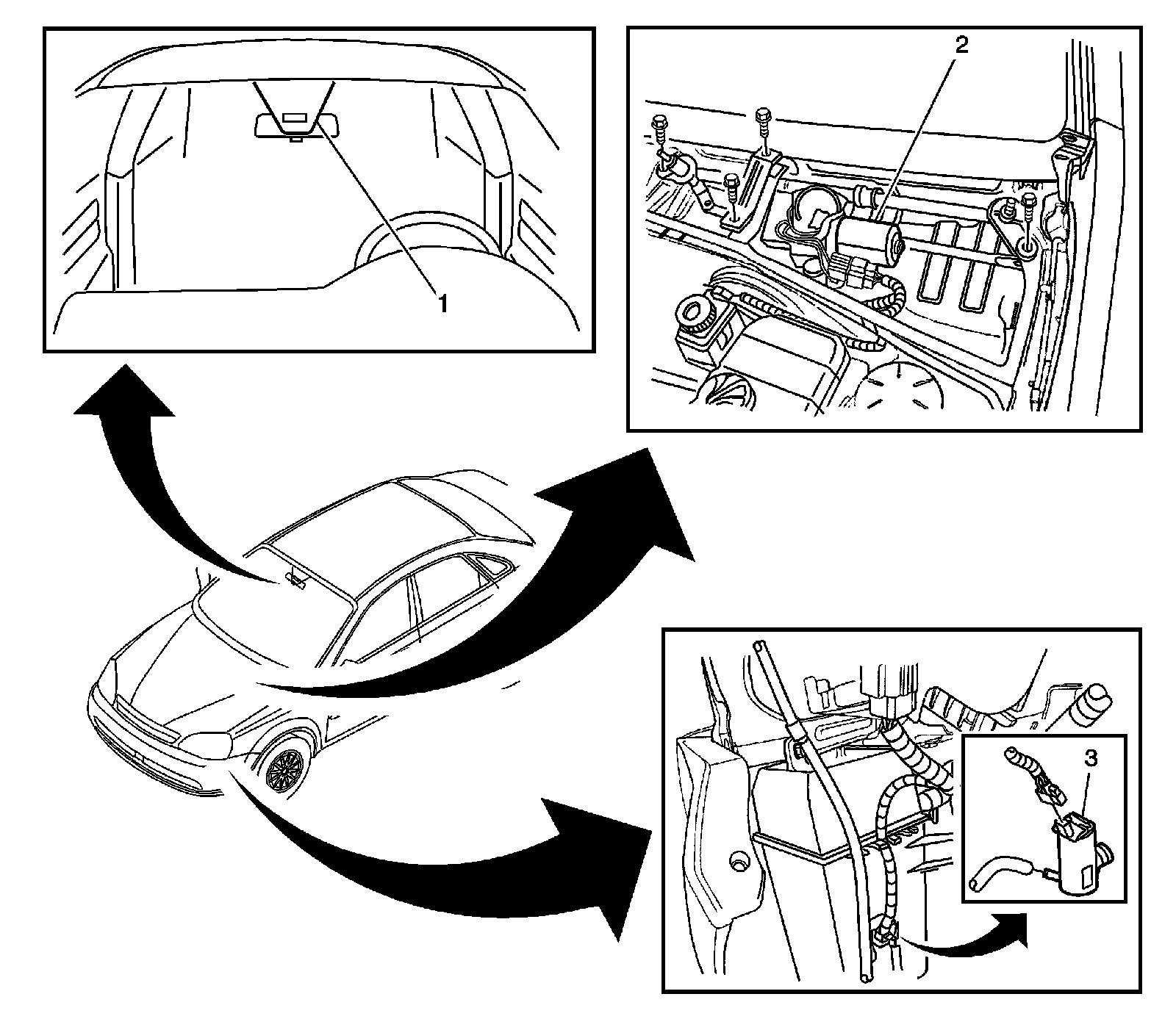

Rain Sensor, Wiper Motor, Washer Pump




1 - Rain Sensor (Optional)
2 - Windshield Wiper Motor
3 - Windshield Washer Fluid Pump
