Electrical Diagrams




Wiper/Washer Schematics

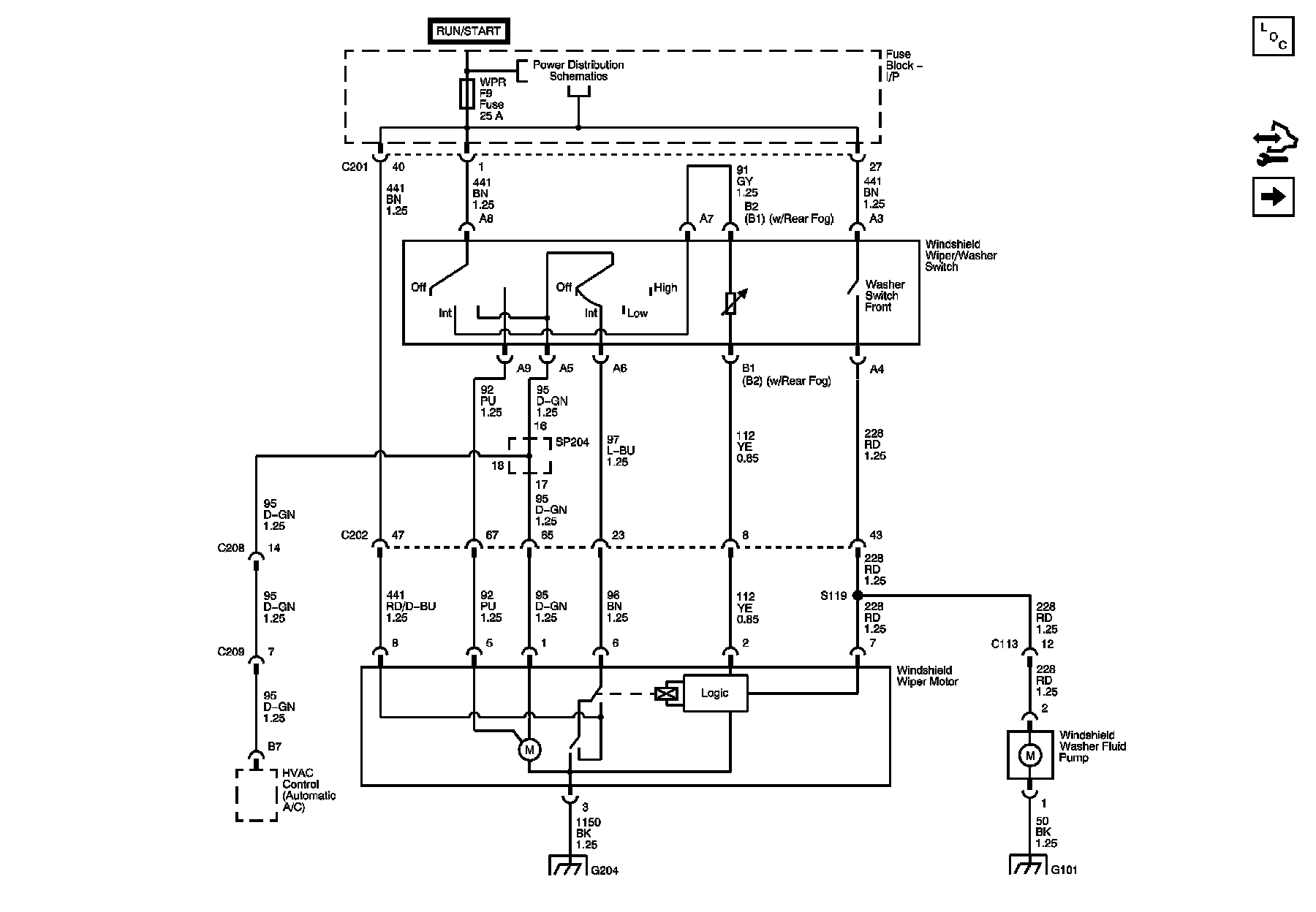

Wiper System - Notchback

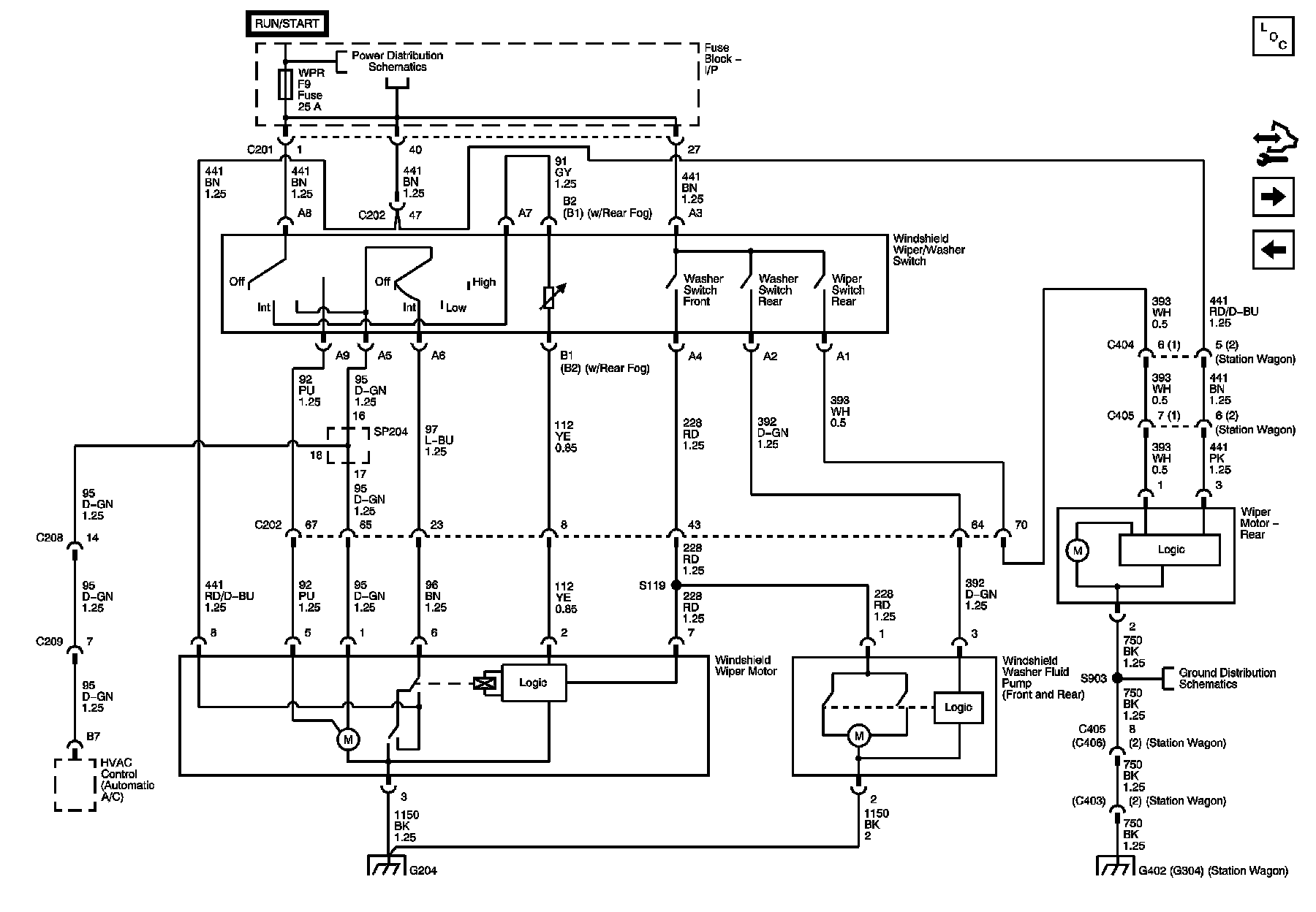

Wiper System - Hatchback and Station Wagon

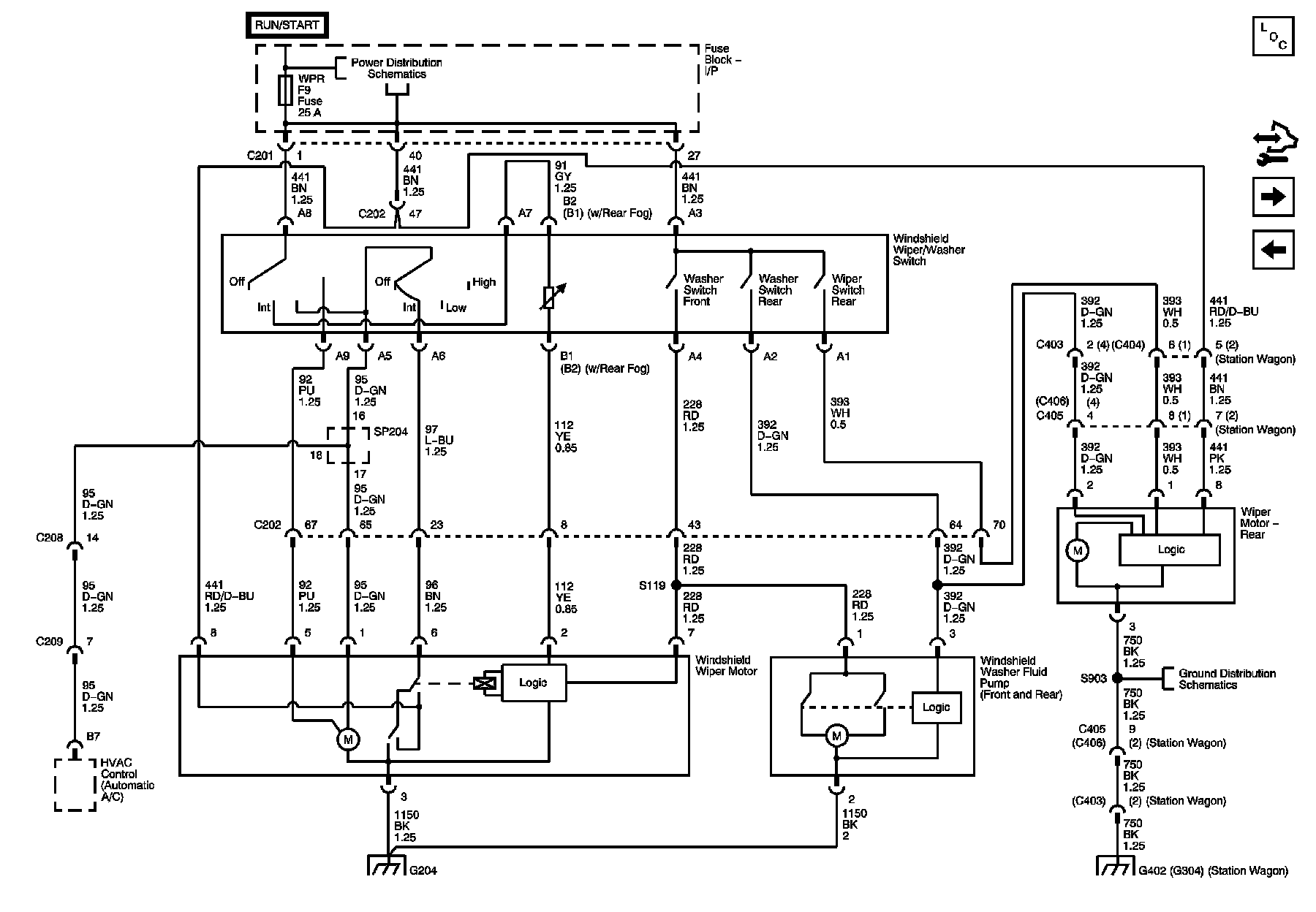

Wiper System - Hatchback and Station Wagon w/Intermittent

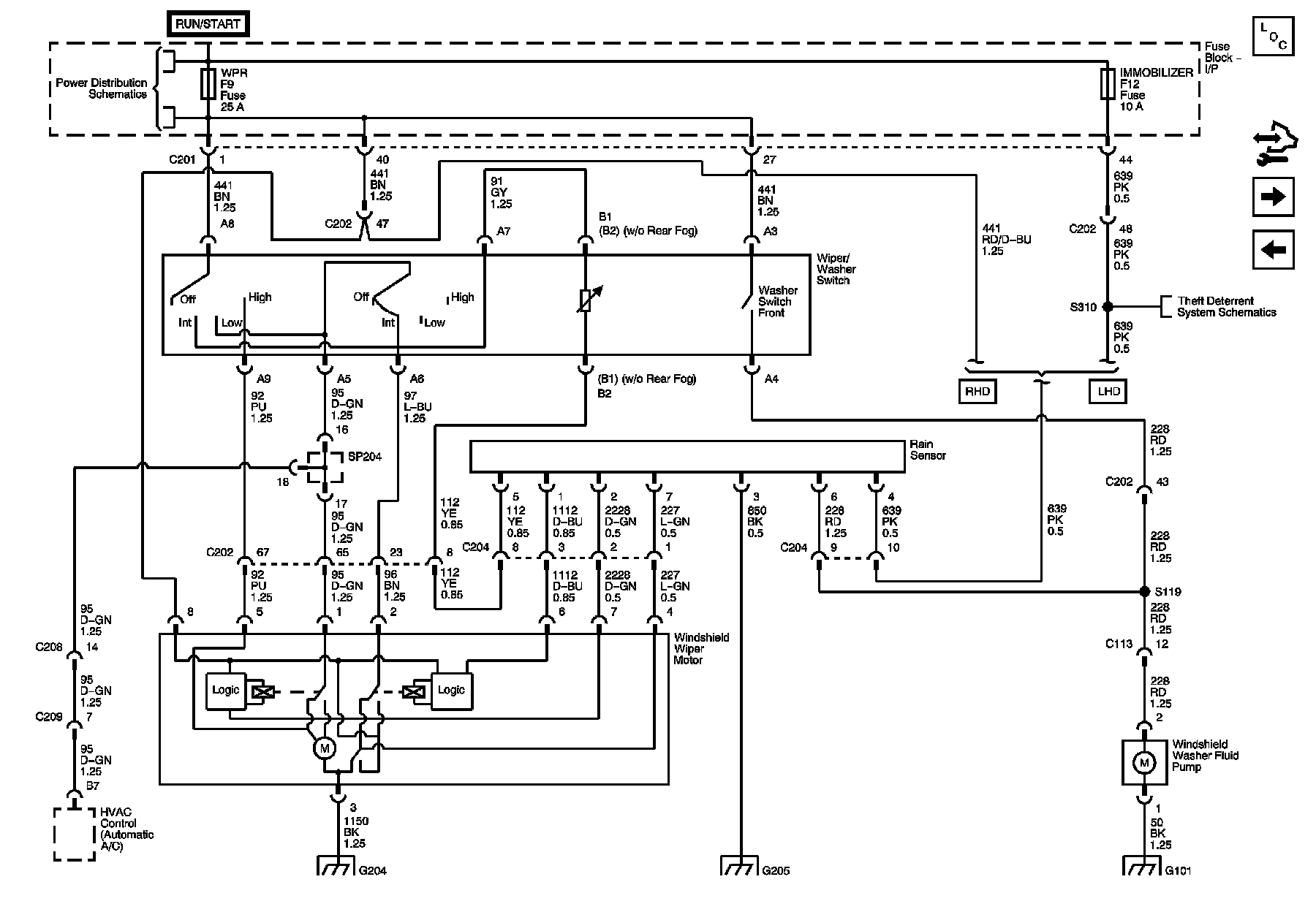

Wiper System - Notchback w/Rain Sensor

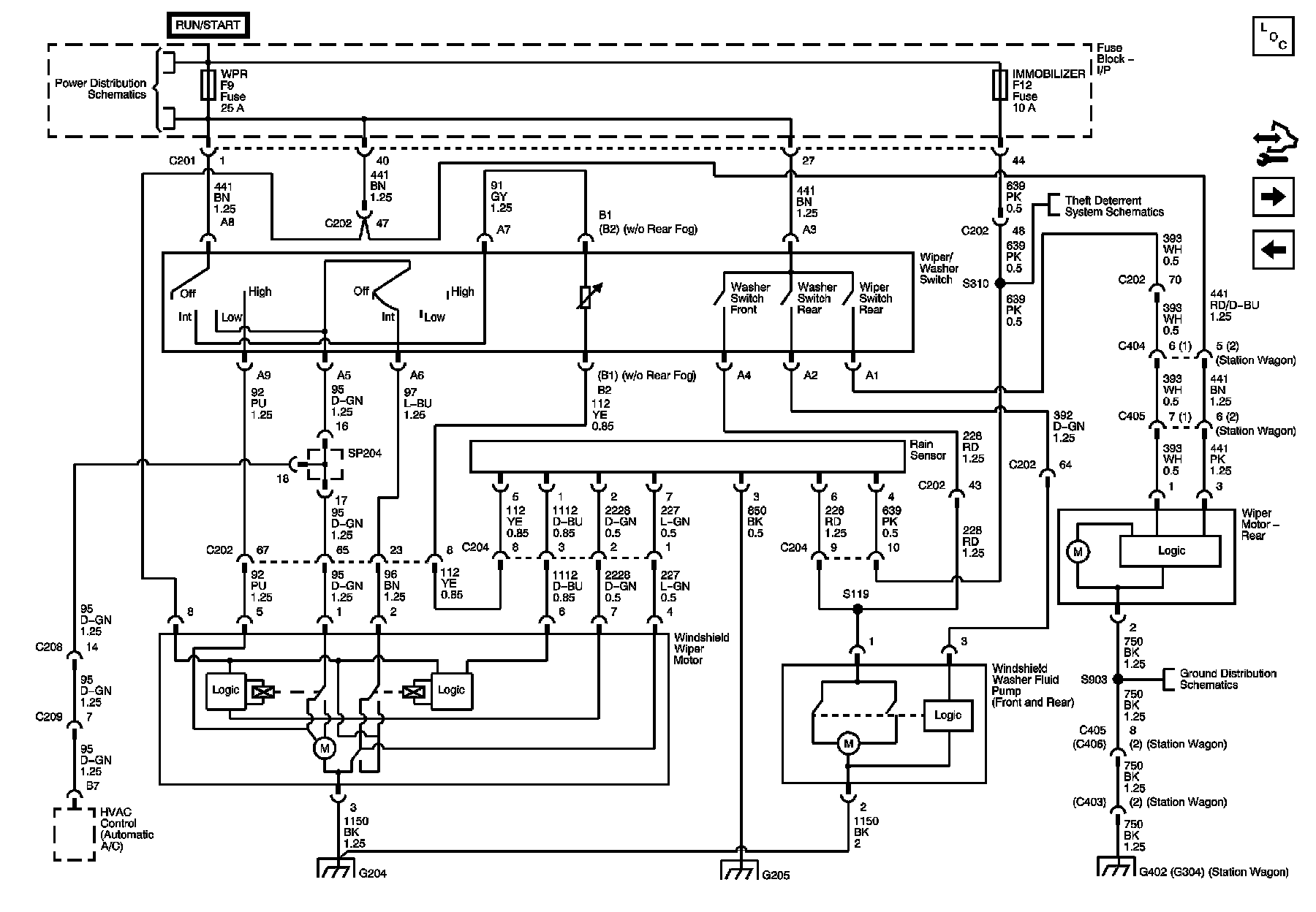

Wiper System - Hatchback and Station Wagon w/Rain Sensor

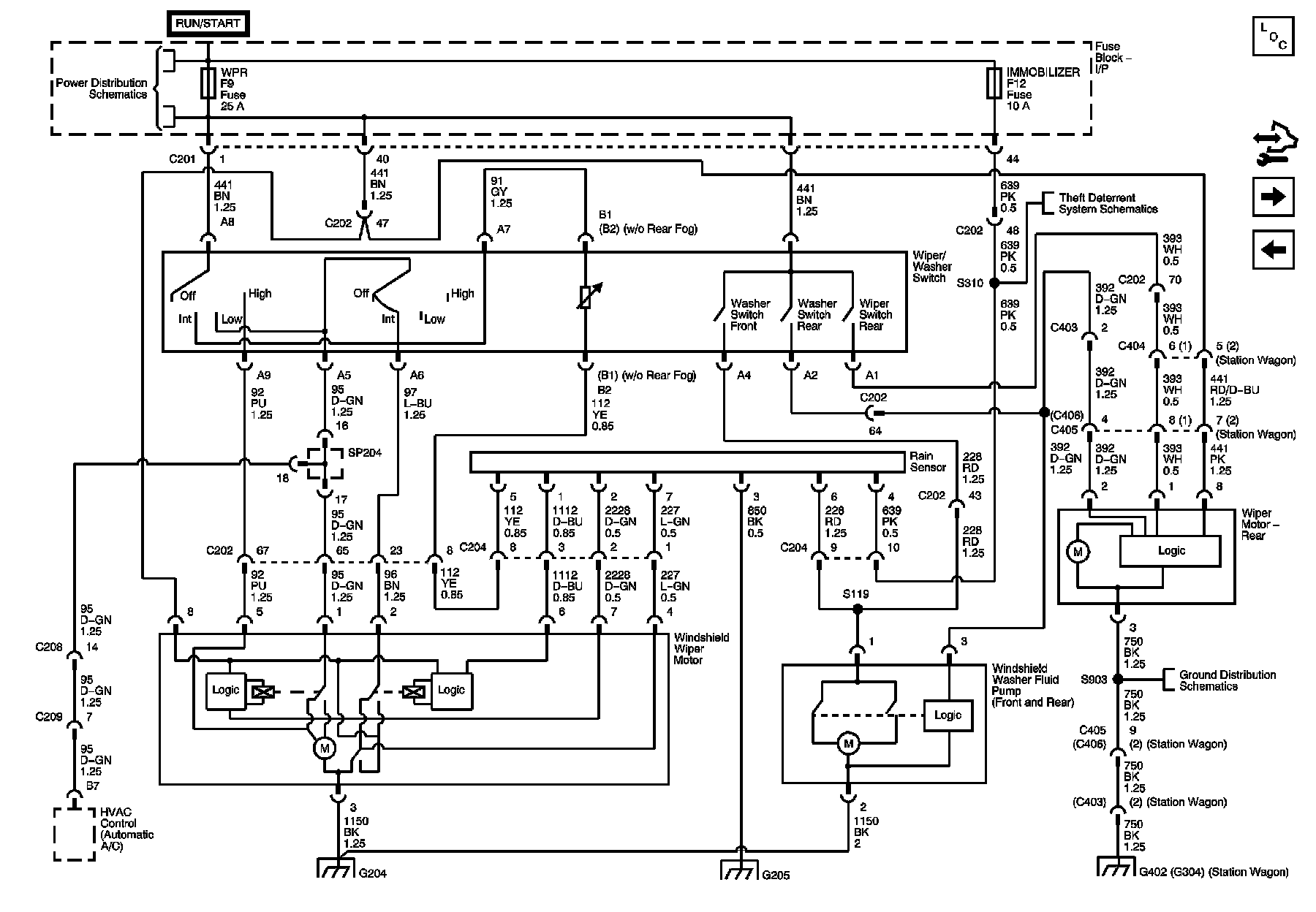

Wiper System - Hatchback and Station Wagon w/Intermittent and Rain Sensor
