Rear Door Window Belt Inner Sealing Strip Replacement

Rear Door Window Belt Inner Sealing Strip Replacement

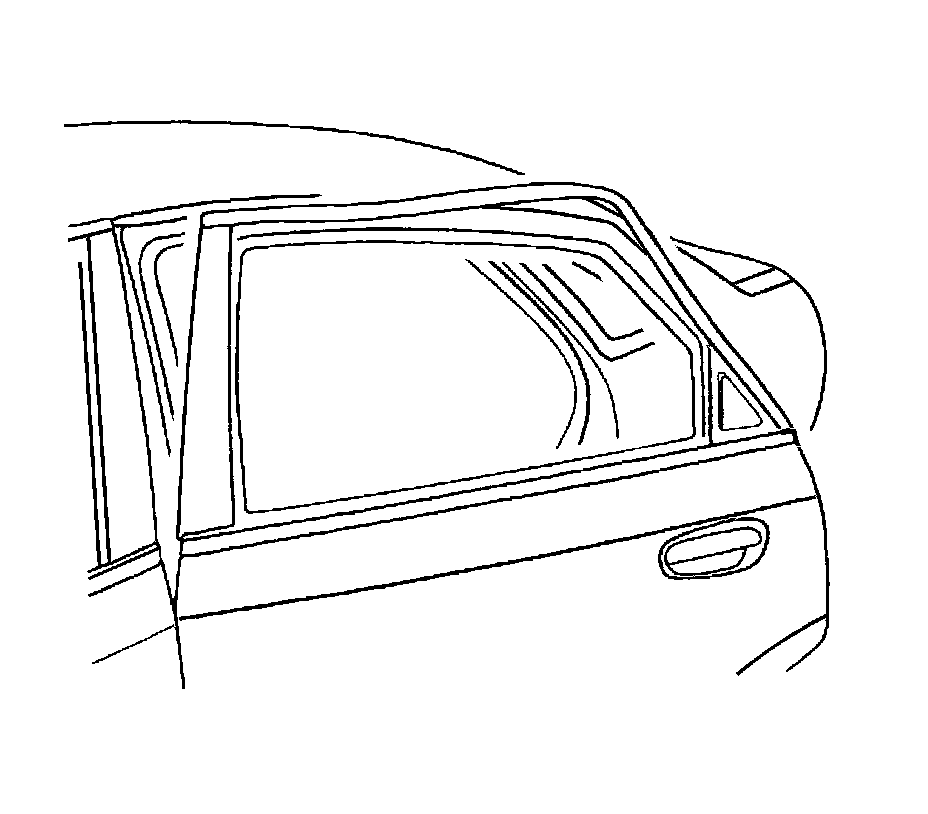

Removal Procedure




1. Remove the interior garnish molding.
2. Remove the screws and the exterior garnish molding.
3. Remove the rear door secondary weatherstrip.

Installation Procedure




1. Install the rear door secondary weatherstrip.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the exterior garnish molding with the screws.
3. Install the interior garnish molding.
