Outer Belt Sealing Strip Replacement

Outer Belt Sealing Strip Replacement

Removal Procedure




1. Lower the window completely.

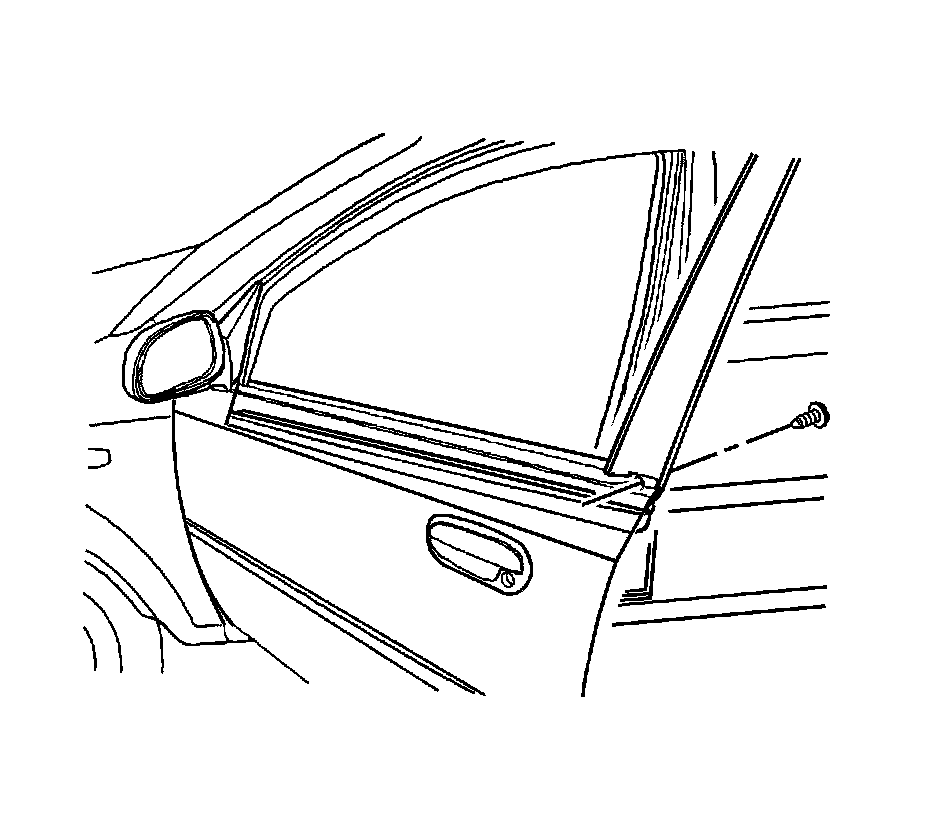

2. Remove the outside channel molding screw.
3. Lift the outside channel molding off the door.

Installation Procedure




1. Press the outside channel molding onto the door.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the outside channel molding screw.

Tighten the outside channel molding screw to 1.3 Nm (12 lb in).

3. Raise the window.
