Windows: Locations

Window Systems Component Views

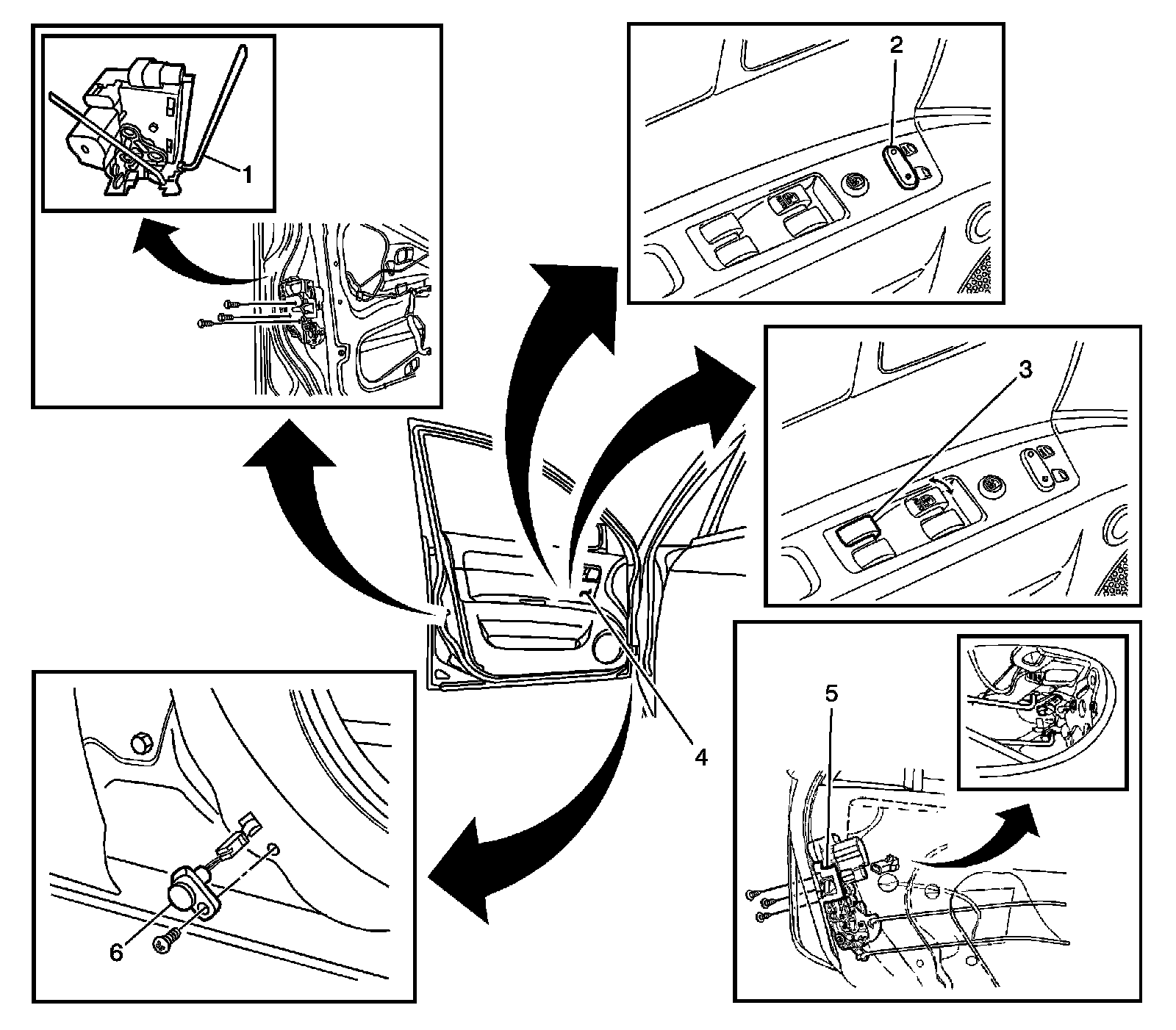

Door Actuator, Lock Switch, Power Window Switch, Power Window Motor, Rear Door Latch




1 - Door Latch - Front (Left Shown, Right Similar)
2 - Door Lock Switch (Optional)
3 - Window Switch - Driver (Others Similar)
4 - Window Motor (All Similar)
5 - Door Latch - Rear (Left Shown, Right Similar)
6 - Door Ajar Switch (All Similar)

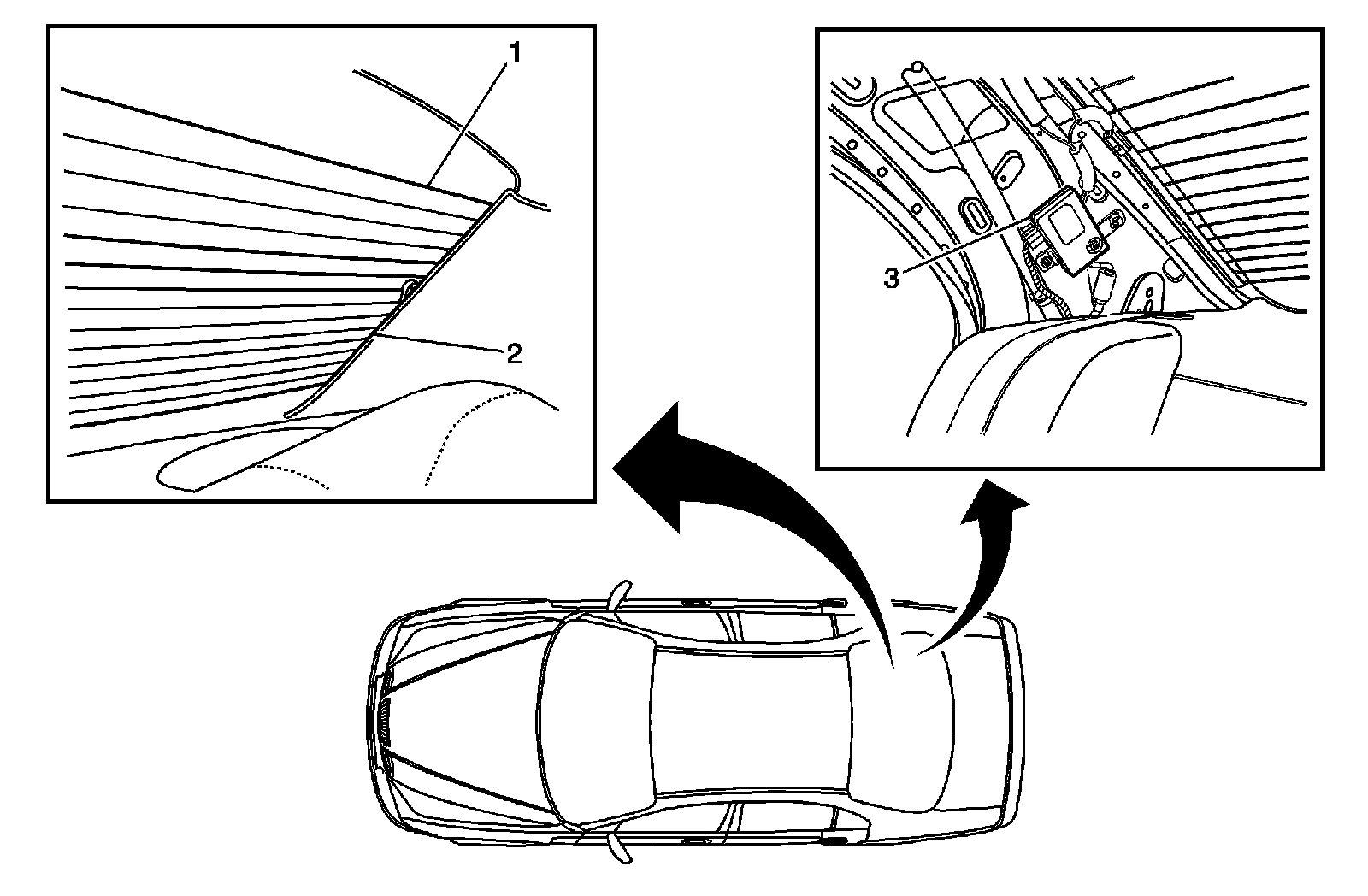

Rear Defog Grid




1 - Rear Window (Glass Antenna)
2 - Rear Defroster
3 - Radio Antenna Module

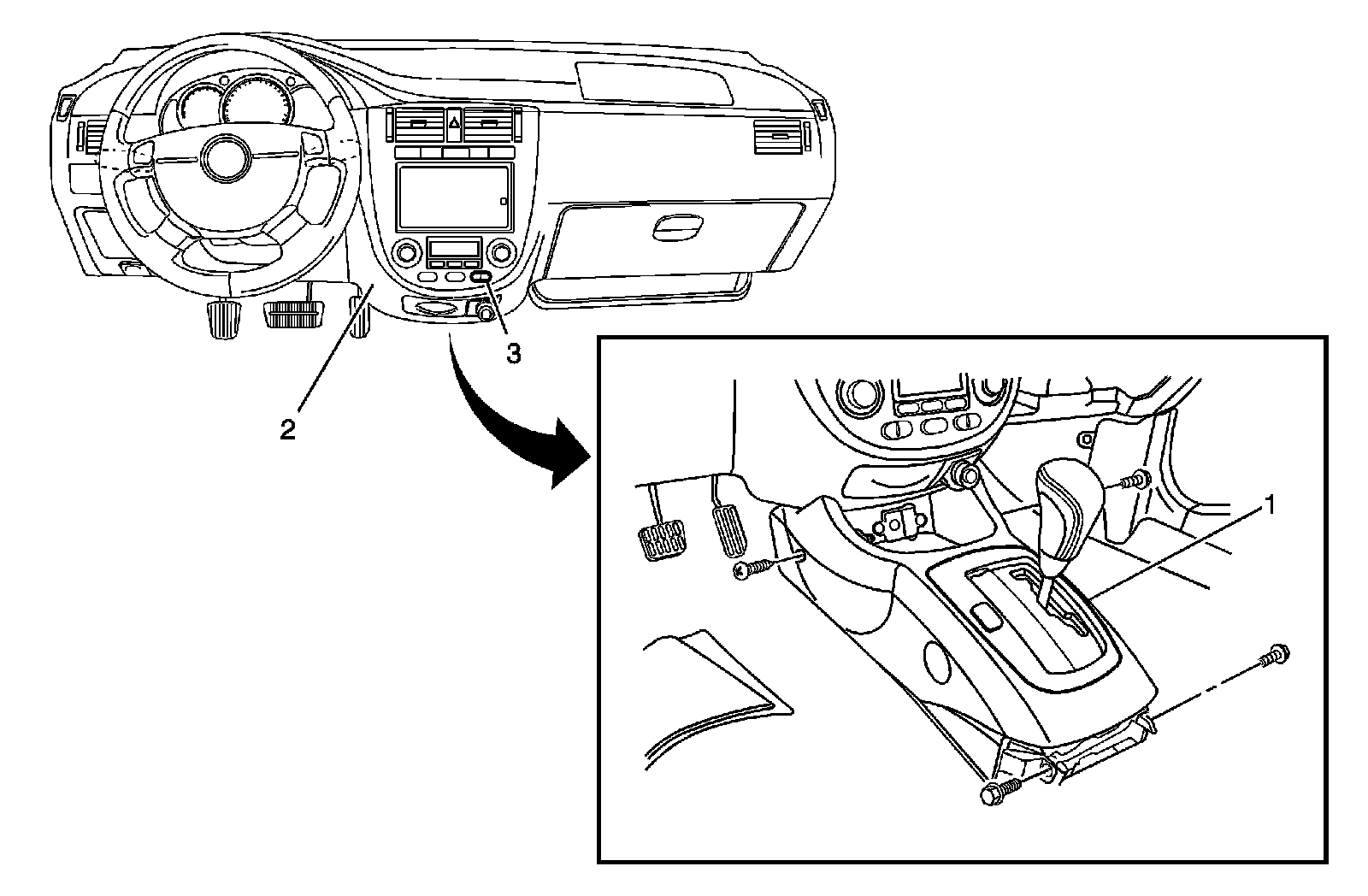

PRNDL Lamp




1 - PRNDL Lamp
2 - Multifunction Alarm Module
3 - Defrost Switch
