D20 - Manual Transaxle

Speedometer Driven Gear Replacement

Removal Procedure

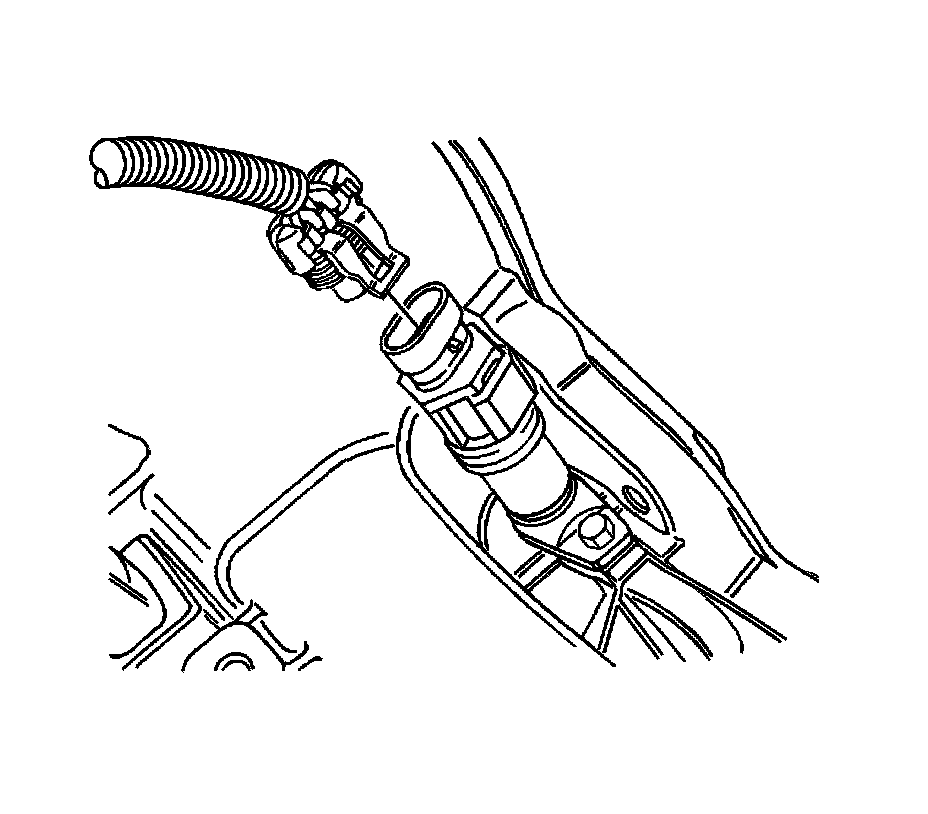

1. Disconnect the speedometer speed sensor electrical connector.




2. Remove the speedometer housing retaining bolt.

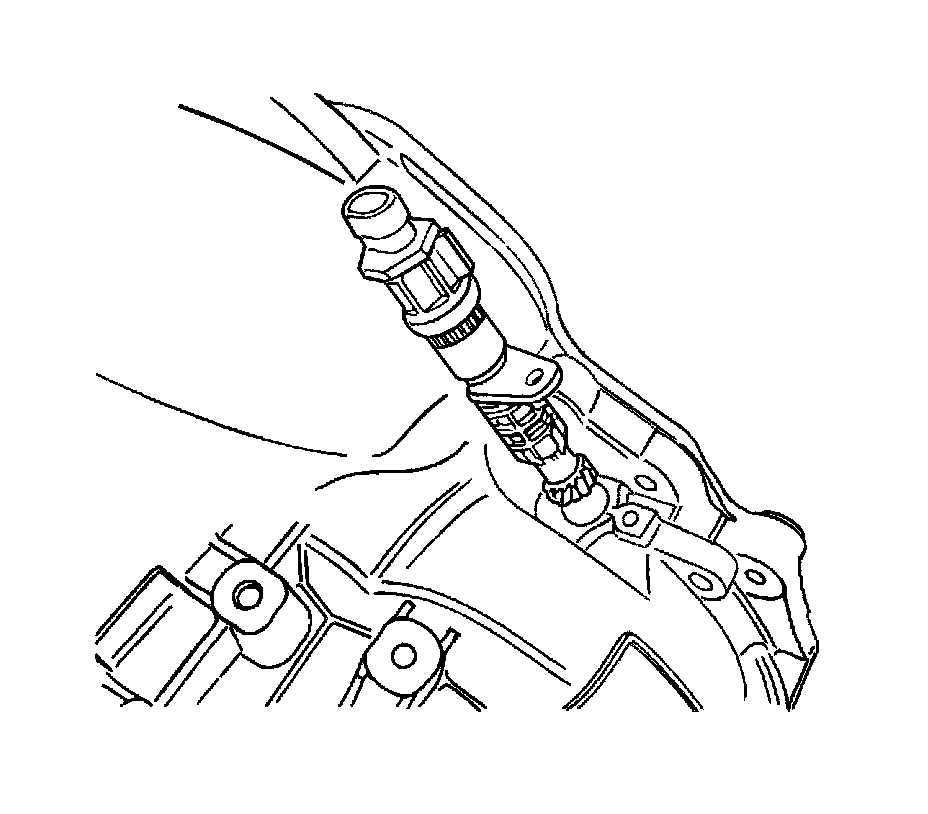

3. Remove the speedometer-driven gear and the speedometer housing.

Installation Procedure




1. Coat the O-ring with petroleum jelly.
2. Install the speedometer-driven gear and the speedometer housing.





Notice: Refer to Fastener Notice Fastener Notice.

3. Install the speedometer housing retaining bolt.

Tighten the speedometer housing retaining bolt to 5 Nm (44 lb in).




4. Connect the speedometer speed sensor electrical connector.
