D16 - Manual Transaxle

Speedometer Driven Gear Replacement

Removal Procedure

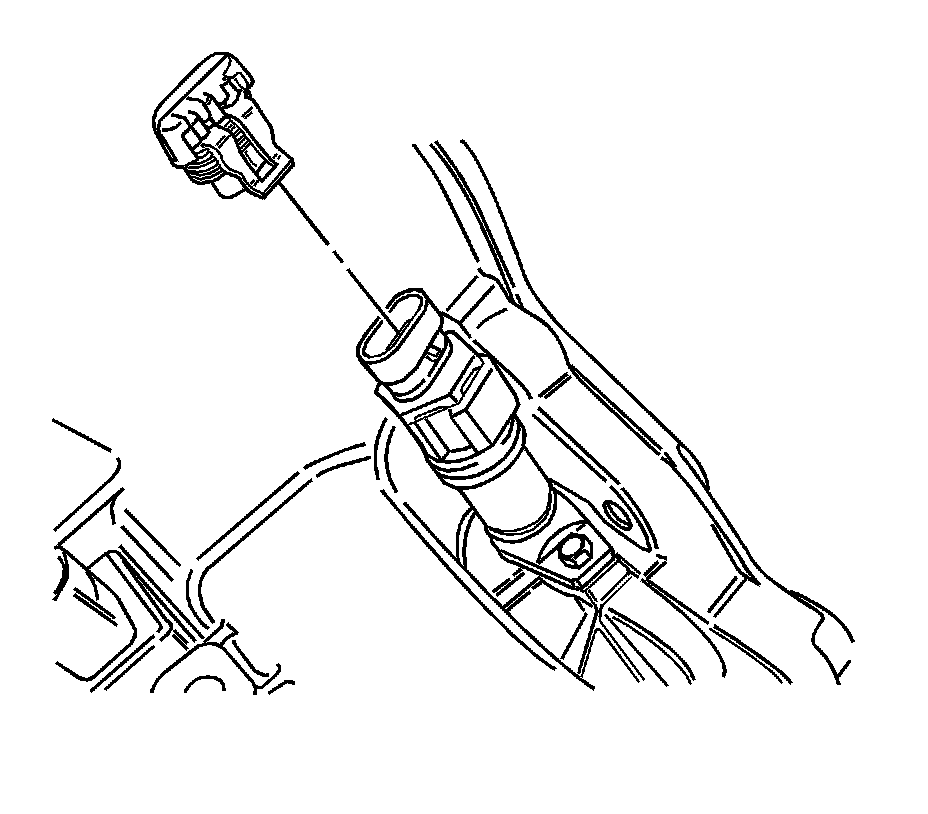

1. Disconnect the speedometer speed sensor electrical connector.

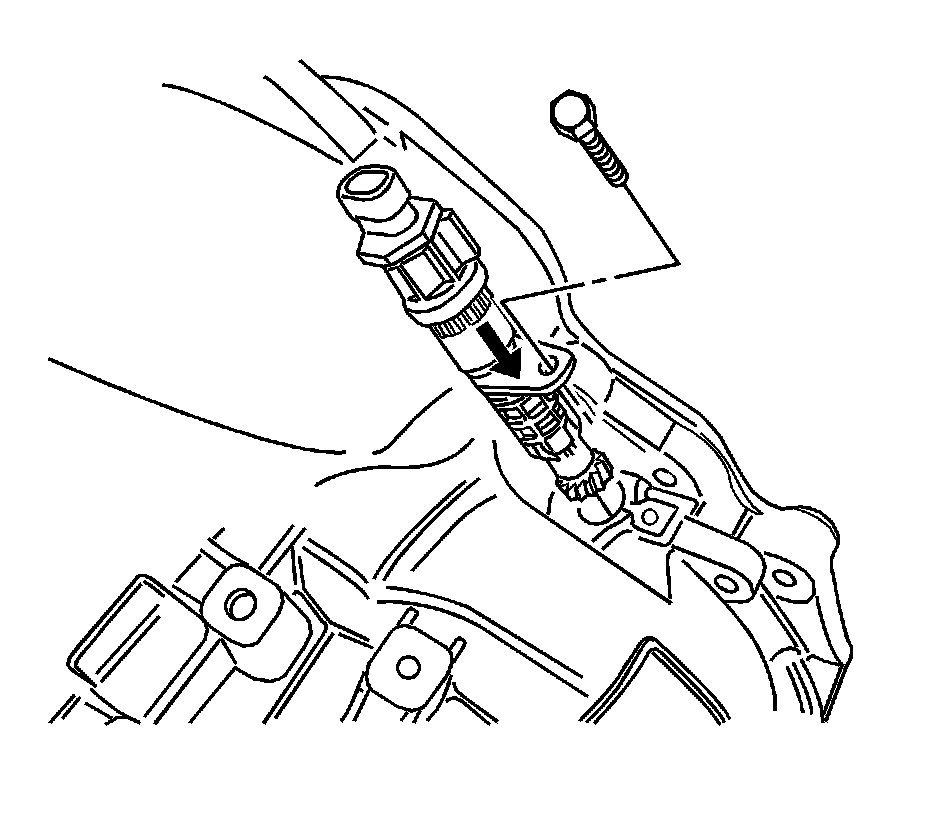

2. Remove the speedometer housing retaining bolt.
3. Remove the speedometer-driven gear and the speedometer housing.

Installation Procedure




1. Coat the O-ring with petroleum jelly.
2. Install the speedometer-driven gear and the speedometer housing.

Notice: Refer to Fastener Notice Fastener Notice.

3. Install the speedometer housing retaining bolt.

Tighten the speedometer housing retaining bolt to 4 Nm (35 lb in).

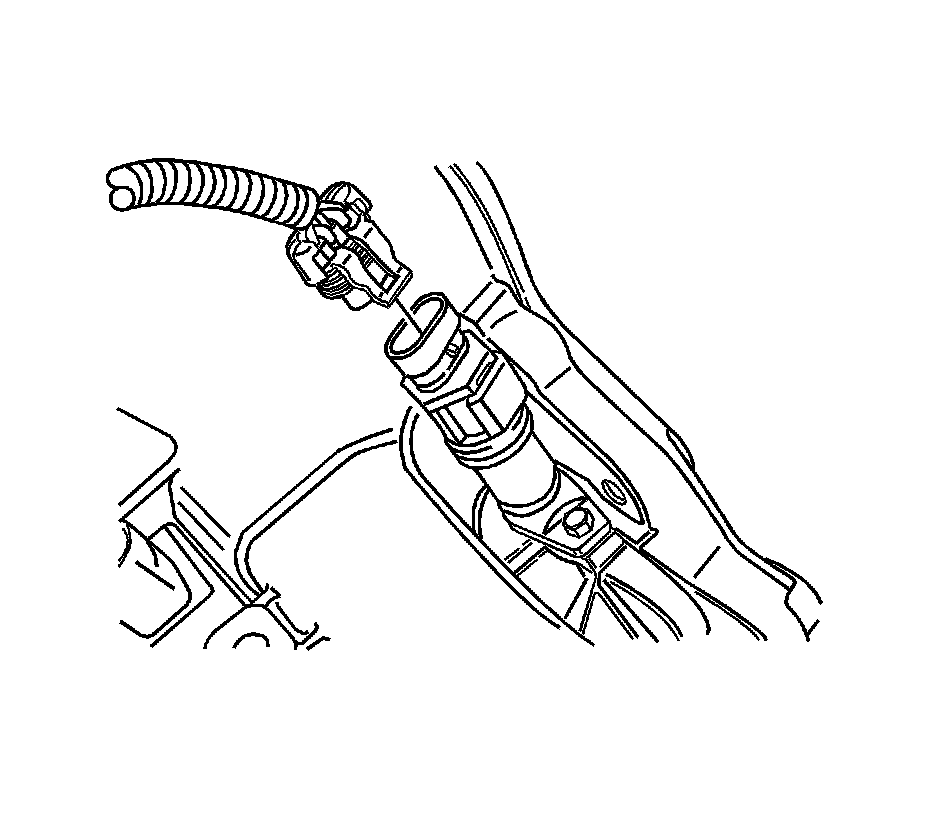

4. Connect the speedometer speed sensor electrical connector.
