Gearshift Control Lever Replacement

Gearshift Control Lever Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.

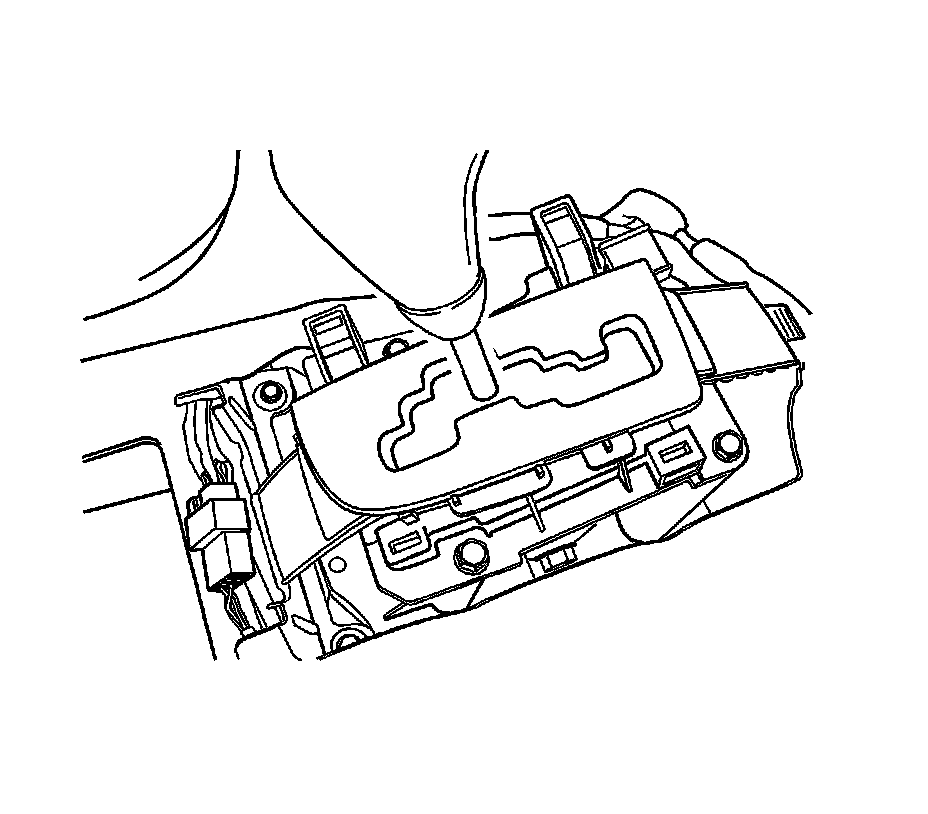

3. Disconnect the electrical switch connectors.

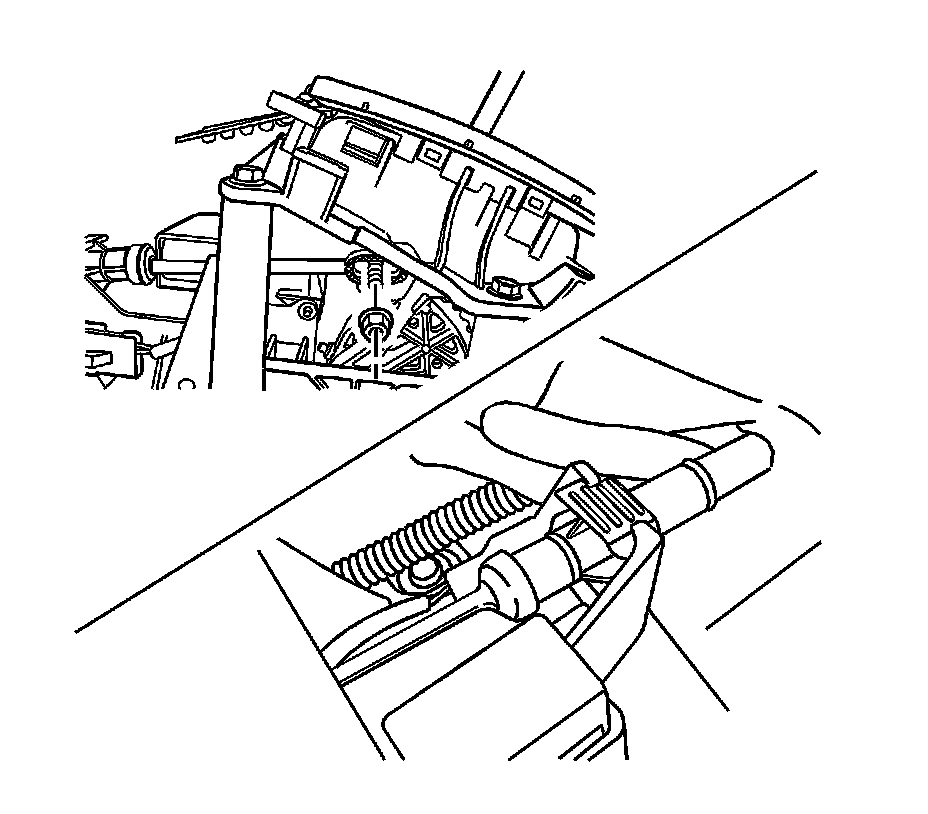

4. Remove the pinch nut from the shift control cable adjuster.
5. Remove the cable from the bracket.




6. Remove the bolts and the nuts holding the shift control assembly to the floor panel.
7. Remove the shift control assembly.

Installation Procedure




1. Install the shift control assembly.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the bolts and the nuts holding the shift control assembly to the floor panel.

Tighten the bolts and the nuts to 8 Nm (71 lb in).




3. Install the shift control cable onto the bracket.
4. Install the adjuster pinch nut to the cable.

Tighten the pinch nut to 8 Nm (71 lb in).




5. Connect the electrical switch connectors.
6. Install the floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.
7. Connect the negative battery cable.
