9. Converter Housing Installation

Converter Housing Installation





Notice: Refer to Fastener Notice Fastener Notice.

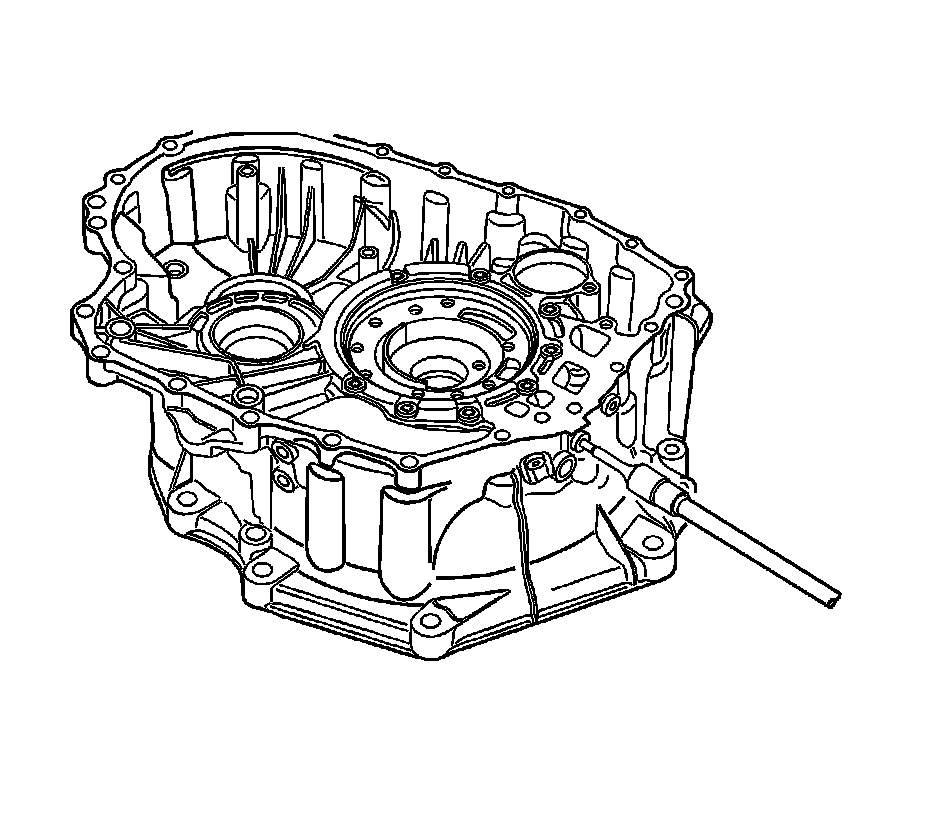

1. Install the line pressure measurement plug.

Tighten the plug to 20 Nm (15 lb ft).

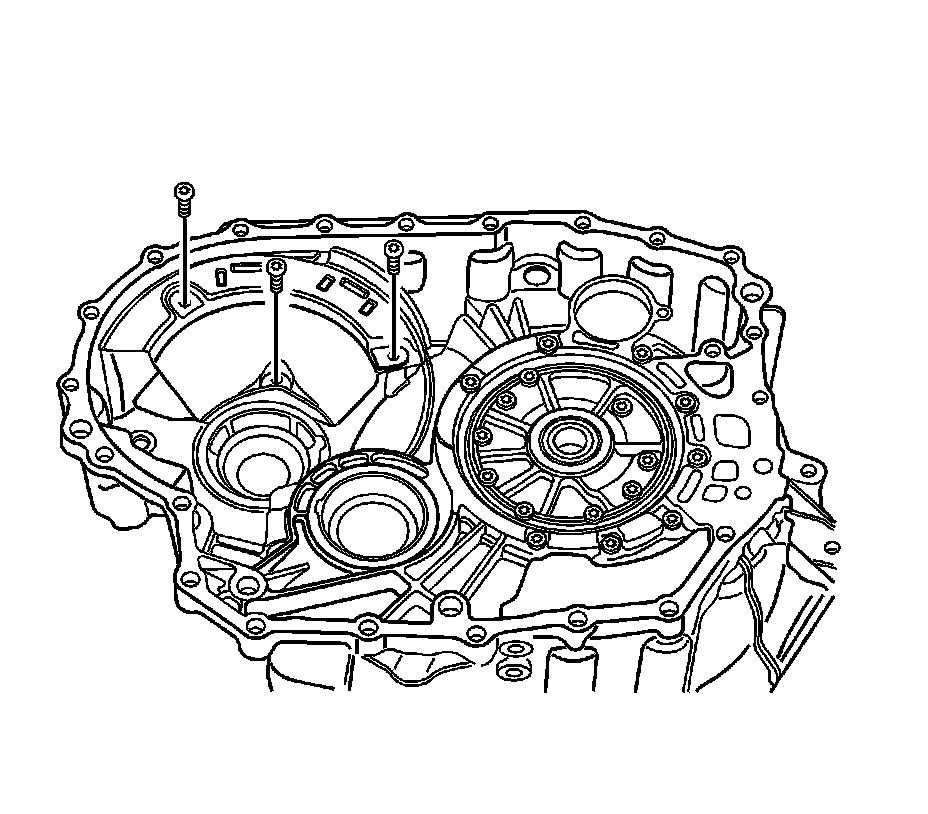

2. Install the baffle plate and the baffle plate bolts.

Tighten the bolts to 10 Nm (89 lb in).

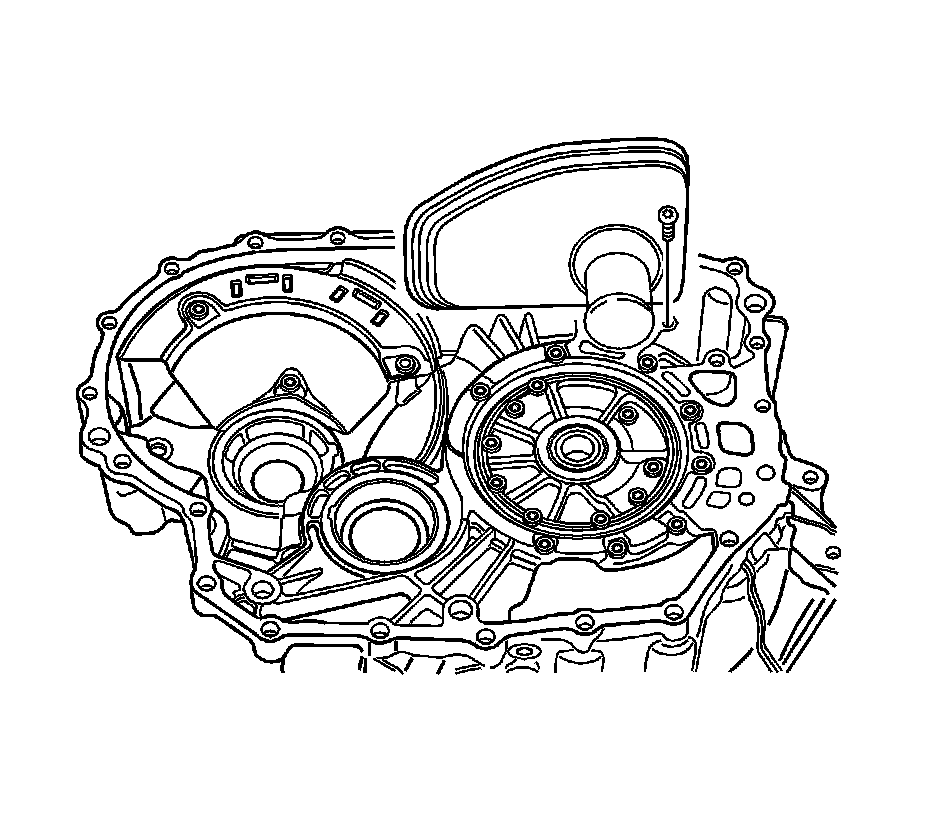

3. Install the oil filter and the oil filter bolt.

Tighten the bolts to 10 Nm (89 lb in).

4. Install the paper gasket.
5. Install the metal gasket.




6. Install the torque converter housing.

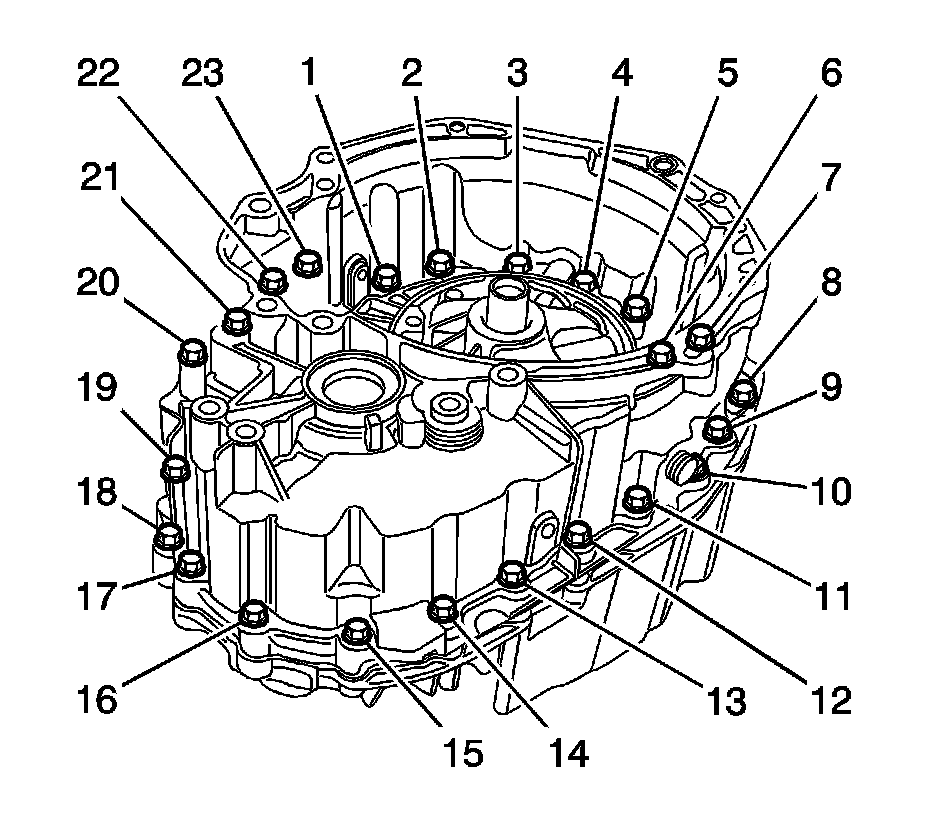

7. Install the torque converter bolts and hand tighten in the following order: 7, 20, 12, 16, and 4.
8. Final tighten the bolts.

Tighten the bolts to 15 Nm (11 lb ft).

9. Hand tighten the remaining bolts in the following order: 15, 3, 14, 5, 13, 22, 11, 21, 10, 9, 19, 8, 18, 17, 6, 1, and 2.
10. Final tighten all the bolts.

Tighten the bolts to 23 Nm (17 lb ft)
