6. Oil Pump Disassemble

Oil Pump Disassemble





Caution: Refer to Safety Glasses Caution Safety Glasses Caution.

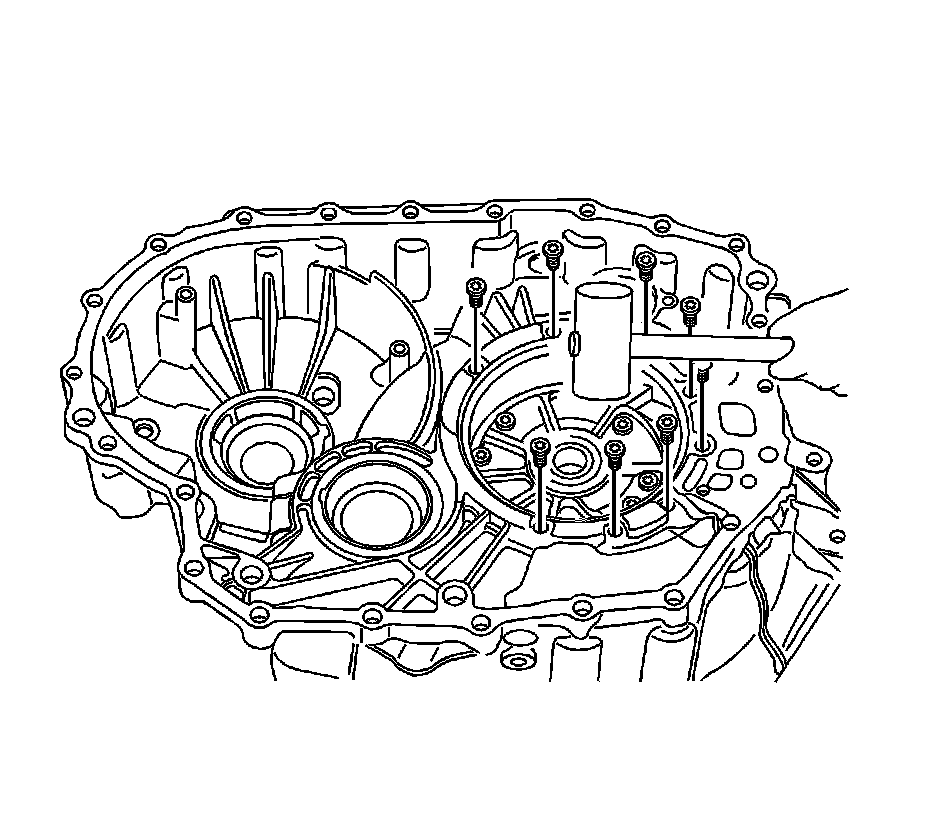

1. Remove the bolts from the oil pump housing.
2. Using a plastic hammer, remove the oil pump housing.

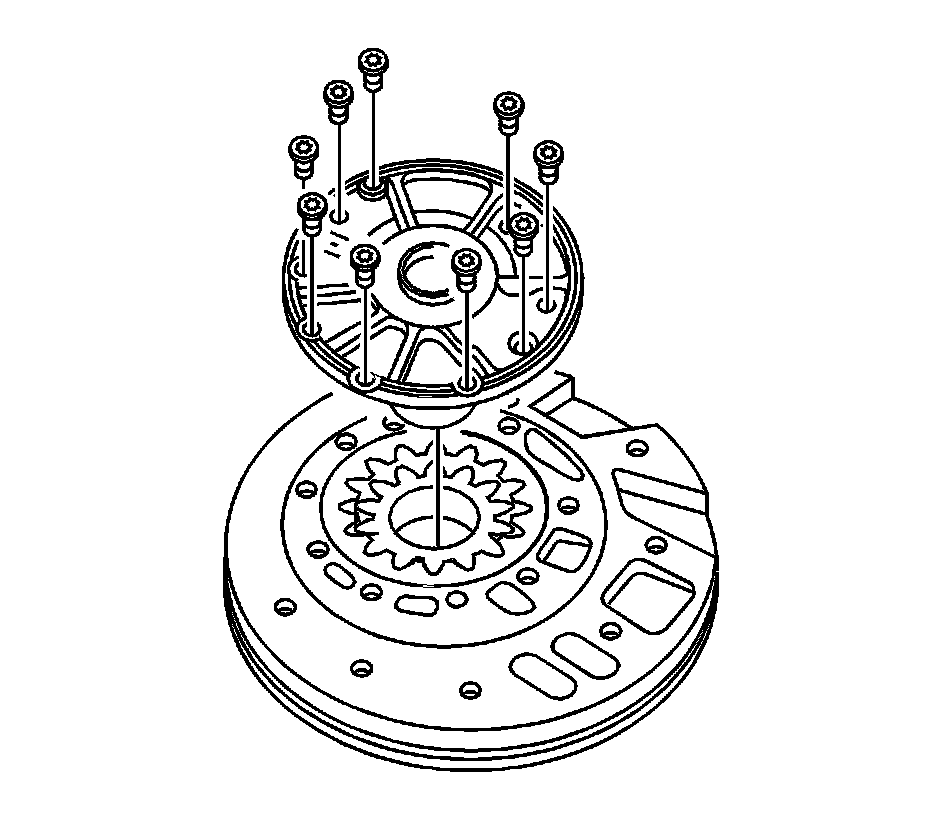

3. Remove the stator shaft bolts.

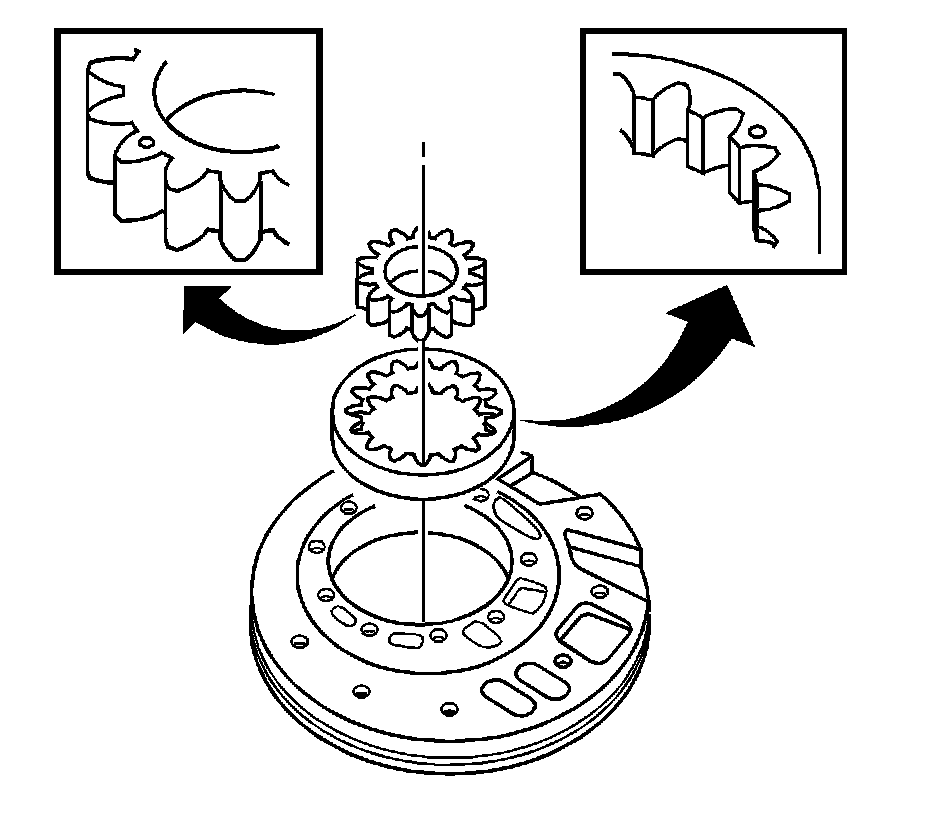

4. Disassemble the oil pump gear and the ring gear.
