4. Converter Housing Removal

Converter Housing Removal





Caution: Refer to Safety Glasses Caution Safety Glasses Caution.

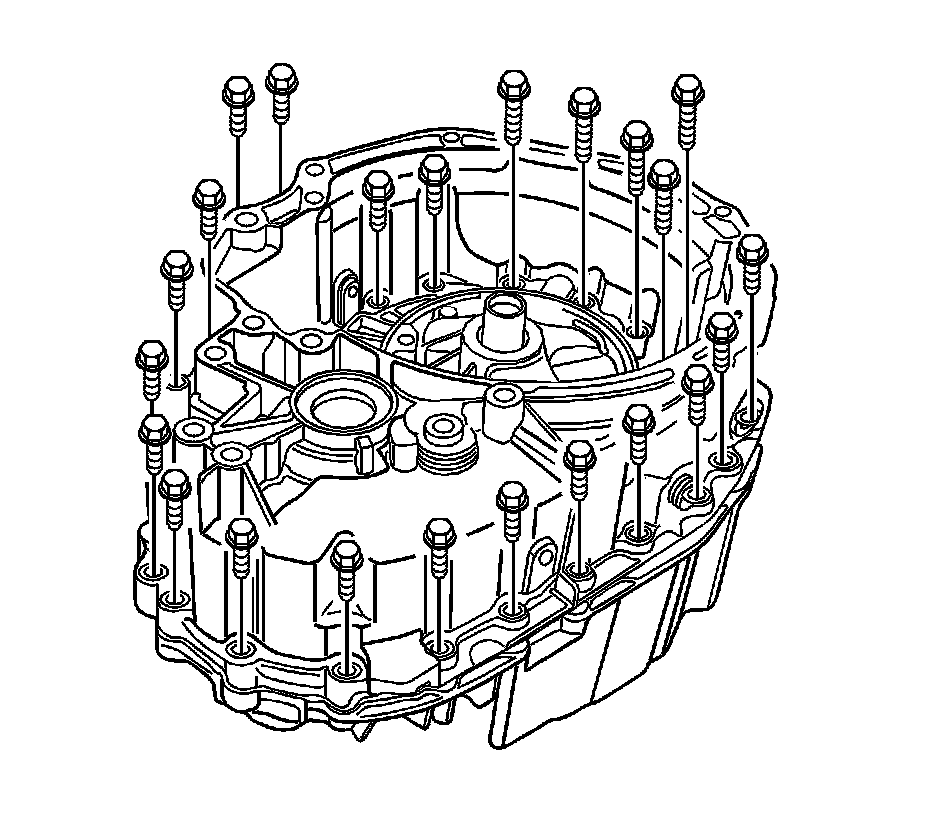

1. Remove the torque converter bolts.
2. Tap the converter housing lightly to remove the housing.




3. Remove the metal gasket.
4. Remove the paper gasket.
5. Remove the oil filter bolt and the oil filter.




6. Remove the baffle plate bolts and the baffle plate.




7. Remove the line pressure measurement plug.
