16. Bearing Plate Assembly Installation

Bearing Plate Assembly Installation





Notice: Refer to Fastener Notice Fastener Notice.

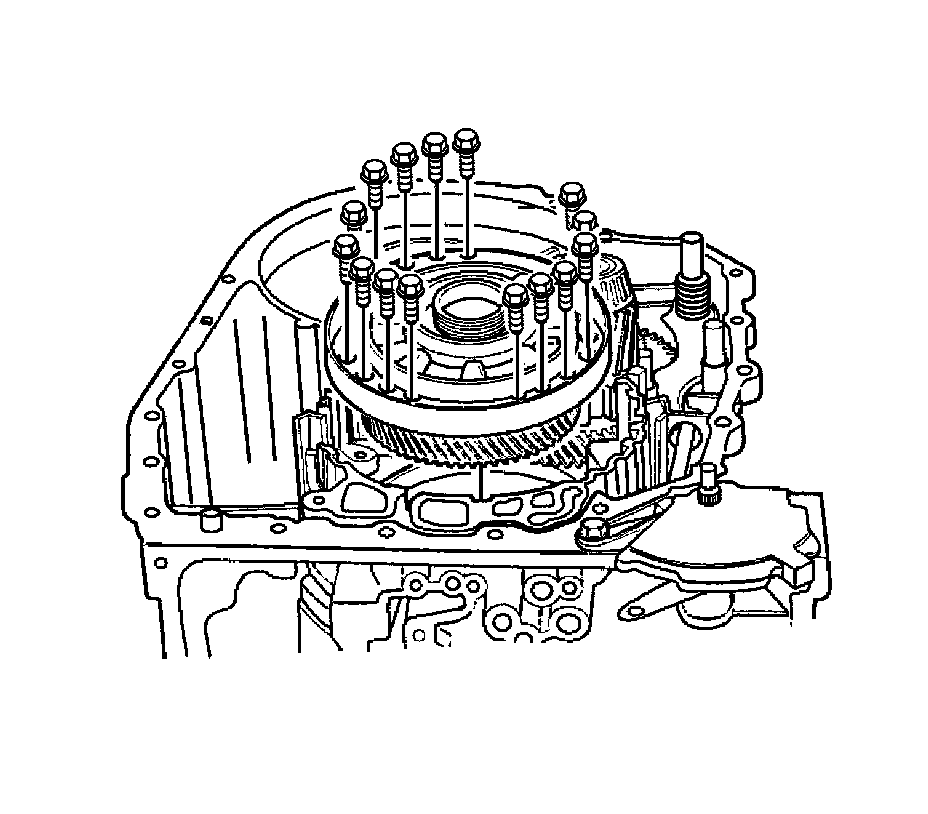

1. Install the bearing plate and install the bearing plate bolts.

Tighten the bolts to 27 Nm (17 lb ft).

2. Install the piston F. Refer to Brake F, Slotted Nut Installation 11. Brake F, Slotted Nut Installation.
