11. Brake F, Slotted Nut Installation

Brake F, Slotted Nut Installation

Tools Required

DT 46479 (DW260-110) Brake F Disc Clearance Measuring Bar





Caution: Refer to Safety Glasses Caution Safety Glasses Caution.

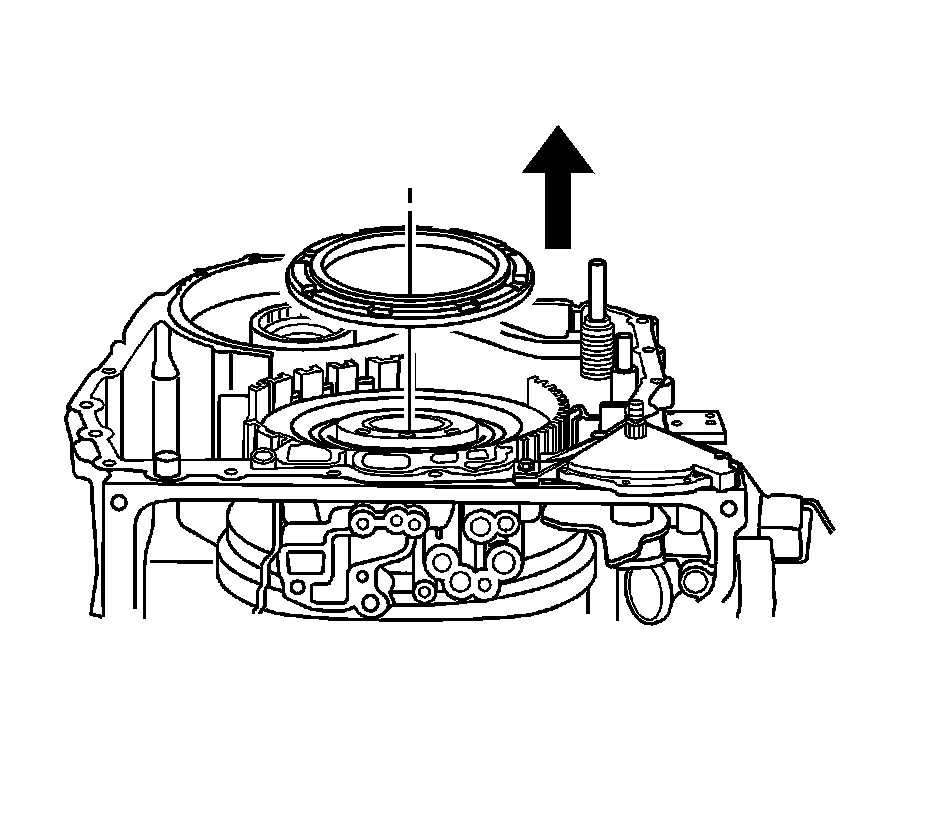

1. Install piston F and the bearing plate with the spur gear.

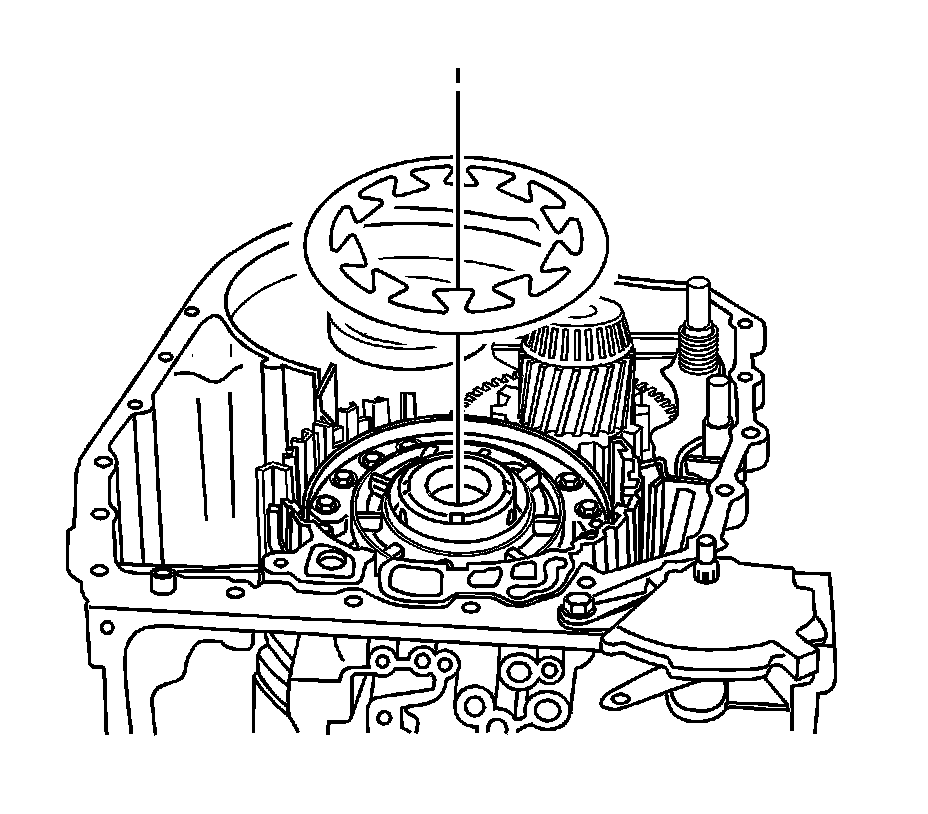

2. Install the cup spring.




3. Install the brake F split stop-ring.

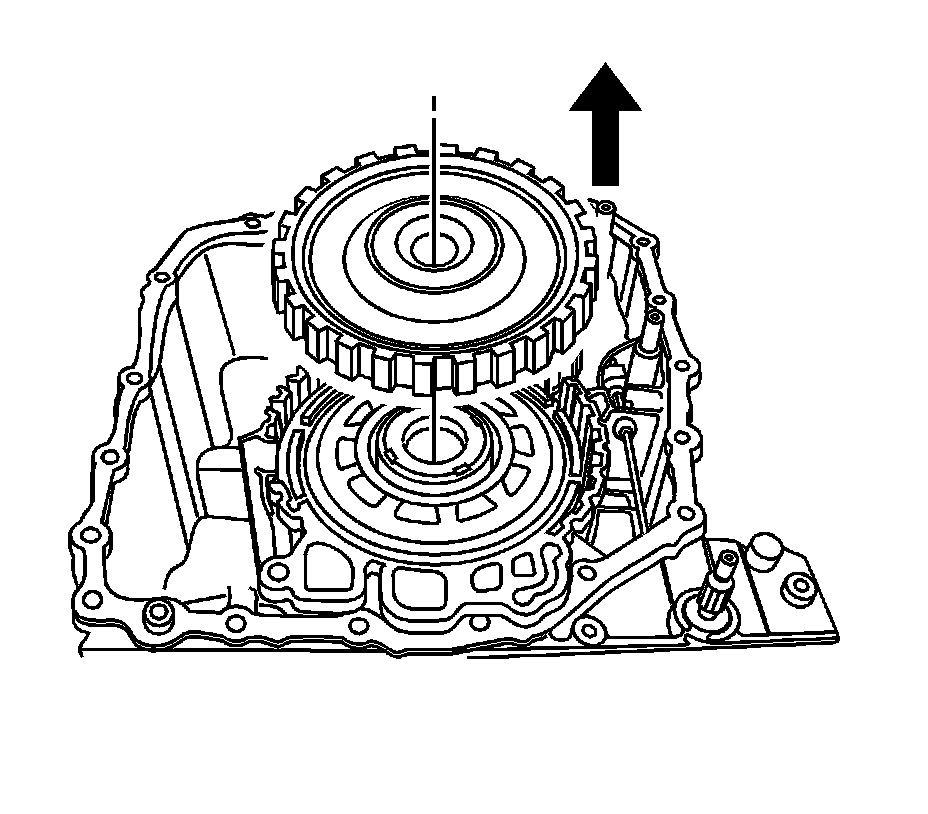

4. Install the brake F inner disc carrier.

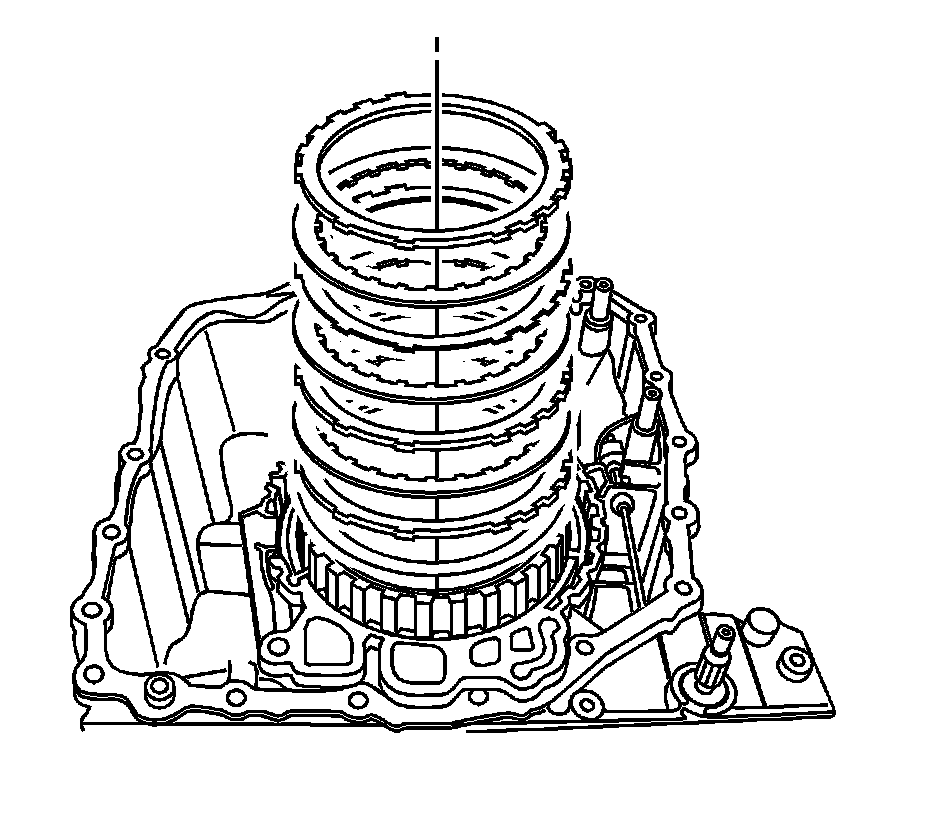

5. Install the disc set.
6. Install the side shaft. Refer to Side Shaft Installation Side Shaft Installation.

Measuring Installation Space F

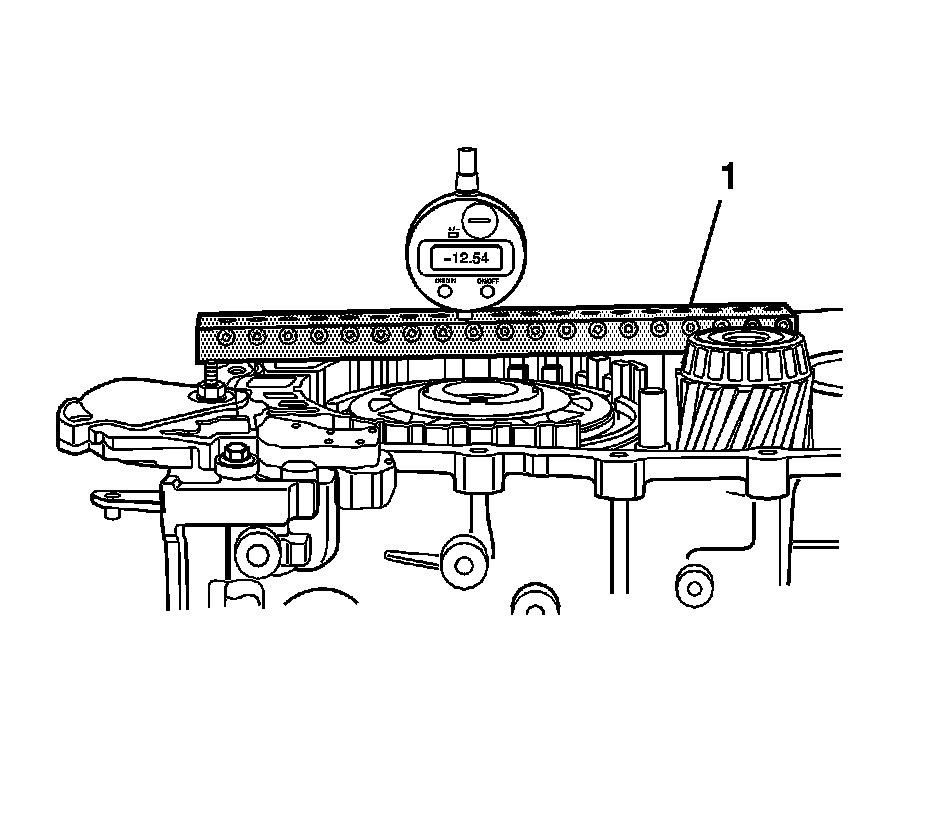

1. Using a DT 46479 (1), measure from the transaxle housing sealing surfaces to the piston's disc support surface at 2 opposing points, M1, M2.
2. Average the measurement values, M1, M2 = BF.

Calculation
* BF is (M1 + M2)/2
* M1 = 18.6 mm (0.73 in)
* M2 = 18.8 mm (0.74 in)
* BF = 18.7 mm (0.735 in)

Determining Adjusting Disc F

1. Calculate the test dimension PF (PF = BF - MF).
BF = installation space
MF = disc set thickness assume 14.50 mm (0.57 in)
EXAMPLE
BF = 18.70 mm (0.735 in)
MF = 14.50 mm (0.571 in)
PF = 4.2 mm (0.164 in)
2. Find the disc set thickness. Refer to Transmission General Specifications Transmission General Specifications.
PF is 4.20 mm (0.164 in), so the disc set thickness is 3.0 mm (0.12 in).
3. Replace clutch B setting disc 3.0 mm (0.12 in).
