23. One Way Clutch Assemble

One Way Clutch Assemble




1. Install the retainer to the 2nd brake hub.
2. Install the one-way clutch.

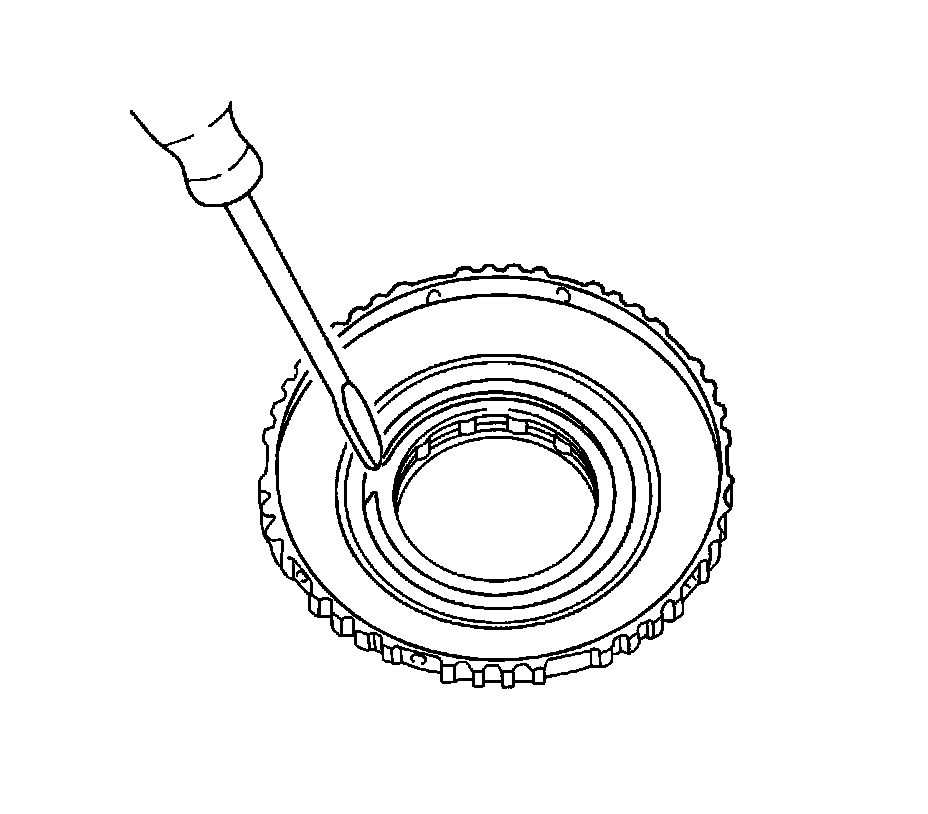

3. Using a screwdriver, install the snap ring.




4. Install the one-way clutch and thrust washer to the rear planetary sun gear.

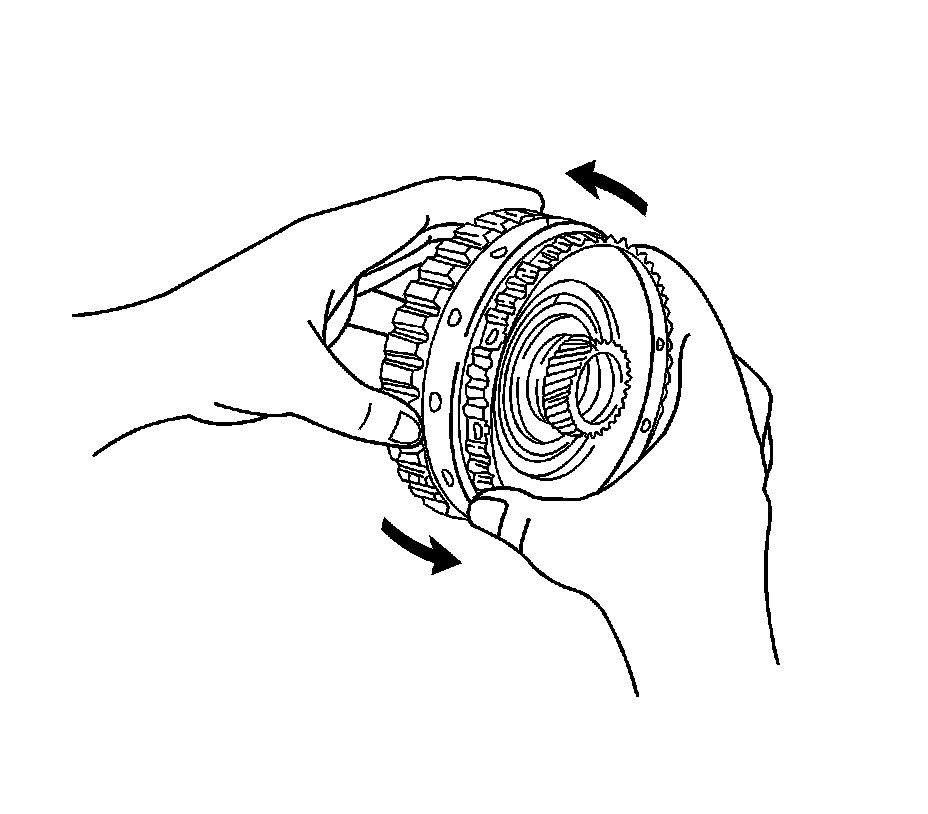

5. Hold the rear planetary sun gear and turn the one-way clutch. The one-way clutch should turn freely clockwise and should lock counterclockwise.
